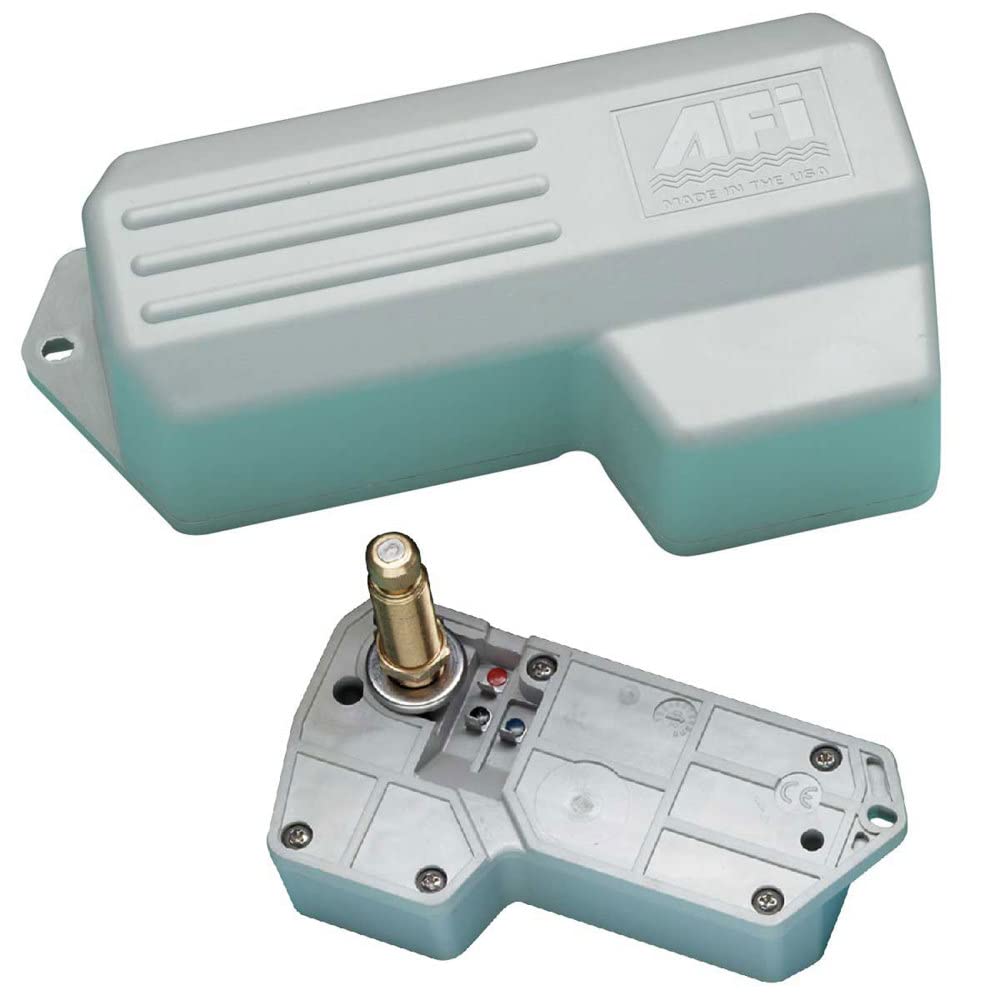

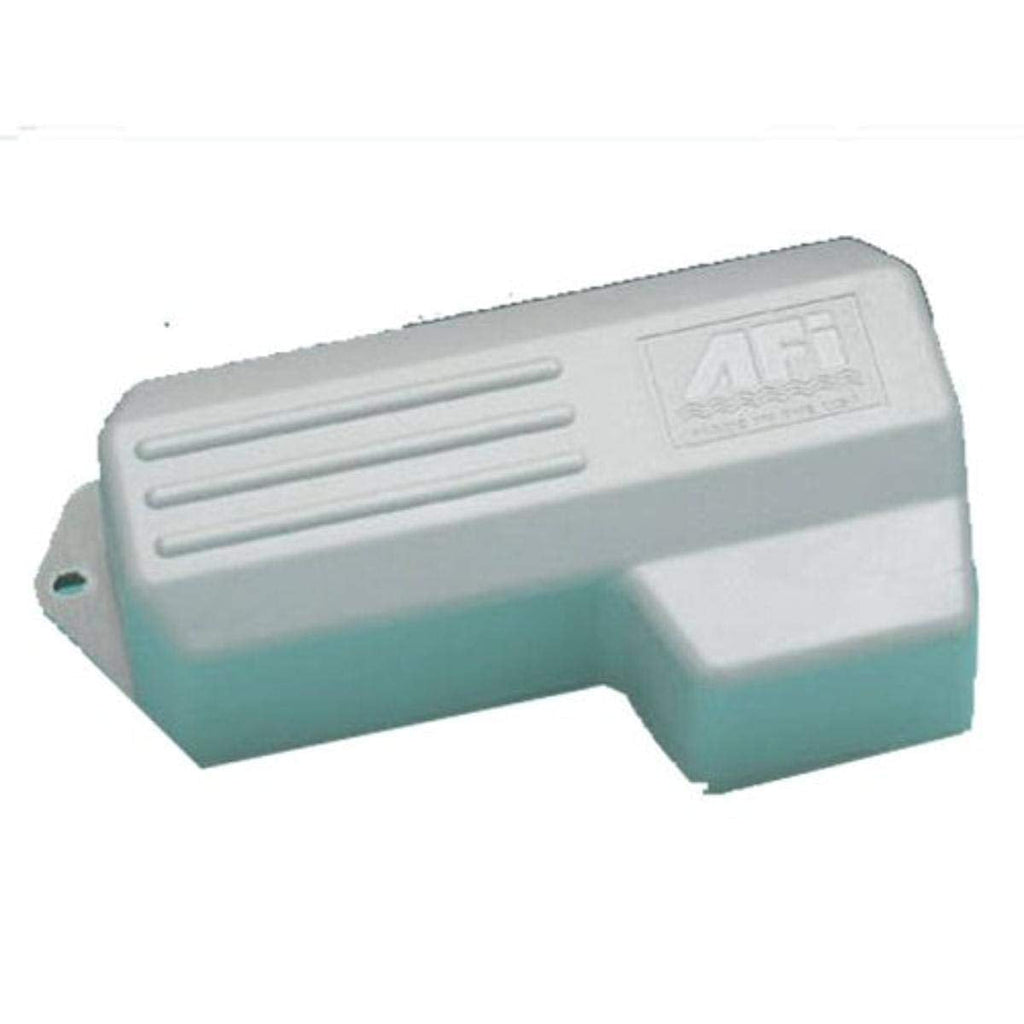

AFI 1000 Series 12V Marine Wiper Motor - 1.5" to 2.5" Shaft, 80-110 Degree Sweep

The AFI 1000 Series is a dedicated 12 volt marine wiper motor built to drive a single windshield wiper arm on boats, workboats, and other vessels that need dependable visibility in wet conditions. Each motor in the line shares the same rugged 1000 Series construction and 12 volt electrical compatibility, with the shaft length and sweep angle sized to match specific wiper arm setups and windshield widths. Choose the shaft length that fits your wiper arm mounting and the sweep angle that covers the glass you need cleared, then bolt the motor in place using standard 1000 Series mounting hardware.

Specifications

• Brand: AFI
• Series: 1000 Series
• Voltage: 12 Volts
• Shaft Length: 1.5 or 2.5 inches, depending on model
• Sweep Angle: 80 or 110 degrees, depending on model
• Housing Material: Plastic
• Weight: approximately 3.1 pounds
• Unit Count: 1 motor per package

Sizes & Options

This wiper motor line is sold by model, not a single fixed configuration. Match the shaft length to your existing wiper arm (a 1.5 inch shaft will not accept an arm drilled for a 2.5 inch shaft) and match the sweep angle to the arc your wiper arm and blade need to travel to clear the windshield. If you are replacing an existing AFI wiper motor, the easiest way to order correctly is to match the part number on the old motor's housing to the SKUs below.
