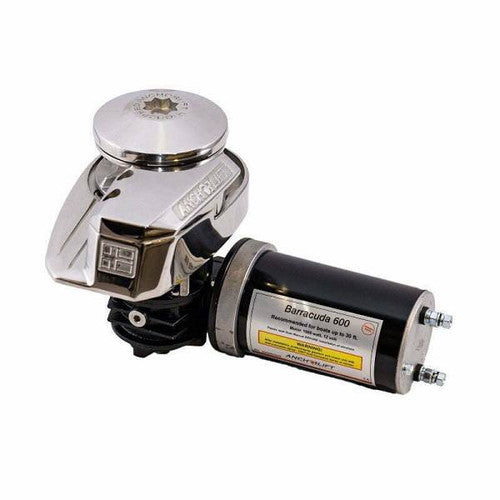

AnchorLift Barracuda 600 Vertical Windlass, 1/4 Inch Chain, 1/2 Inch Rope, 12V

The AnchorLift Barracuda 600 Vertical Windlass is a low profile anchor windlass built for boats in the 20 foot to 30 foot range, with a rated capacity for boats weighing up to 8,800 lbs. Constructed with 316L stainless steel components, the Barracuda 600 delivers a smooth, quiet retrieve while keeping deck clutter to a minimum, reducing tripping hazards compared to bulkier windlass designs. It runs on a 12V electrical system powered by a 1000 Watt motor, drawing 18 Amps on the way down and 47 Amps on the way up, and is protected by an 80 Amp circuit breaker.

The windlass can be run as a rope/chain combination or as a chain only setup, handling chain up to 1/4 inch and rope up to 1/2 inch, with a rated chain length of 98 feet to 165 feet. A manual free fall feature paired with an adjustable clutch allows a high speed drop of up to 115 feet per minute, while retrieval speed reaches up to 85 feet per minute. Maximum working load is rated at 397 lbs, with a maximum power pull of 1,190 lbs, and it is designed to work with anchors in the 13 lb to 22 lb range and a total ground tackle weight of 132 lbs. Installation calls for a deck thickness of 3/4 inch to 1.5 inches and 2-4 AWG cable. The unit ships complete with the windlass unit, motor and gearbox, solenoid, circuit breaker, handle, gear box backing plate, EPDM base gasket, thread locker, hardware, and a mounting template.

Specifications

• Brand: AnchorLift
• Manufacturer Part Number: B612
• Product Type: Vertical Windlass
• Chain Size: 1/4 inch
• Rope Size: 1/2 inch
• Chain Length: 98 feet - 165 feet
• Recommended Boat Length: 20 feet - 30 feet
• Recommended Boat Weight: Up to 8,800 lbs
• Unit Weight: 16 lbs
• Shipping Weight: 20.6 pounds
• Shaft Diameter: 0.55 inches
• Electrical System: 12V
• Max Working Load: 397 lbs
• Max Power Pull: 1,190 lbs
• Max Speed Down: 115 feet per minute
• Max Speed Up: 85 feet per minute
• Anchor Weight Range: 13 - 22 lbs
• Ground Tackle Weight: 132 lbs
• Motor: 1000 Watt, 12V
• Amp Draw (Down): 18 Amp
• Amp Draw (Up): 47 Amp
• Circuit Breaker: 80 Amp
• Cable Size: 2-4 AWG
• Deck Thickness: 3/4 inch - 1.5 inch
• Material: 316L Stainless Steel
• UPC: 810055910007

Fitment

• Designed for boats 20 feet to 30 feet in length
• Rated for boats weighing up to 8,800 lbs
• Compatible with anchors weighing 13 lbs to 22 lbs
• Requires a deck thickness of 3/4 inch to 1.5 inches for installation

Frequently Asked Questions

What size chain and rope does the AnchorLift Barracuda 600 use? The Barracuda 600 (part number B612) is rated for chain up to 1/4 inch and rope up to 1/2 inch, and can be run as a chain-only setup or as a combined rope/chain rode with a rated chain length of 98 feet to 165 feet.

What size boat is the Barracuda 600 windlass designed for? This windlass is designed for boats between 20 feet and 30 feet in length, with a rated boat weight capacity of up to 8,800 lbs.

How fast does the anchor drop and retrieve with this windlass? The manual free fall feature with adjustable clutch on the AnchorLift B612 allows a high speed drop of up to 115 feet per minute, while retrieval speed reaches up to 85 feet per minute.

What is the maximum working load and power pull rating? The Barracuda 600 has a maximum working load of 397 lbs and a maximum power pull of 1,190 lbs.

What voltage and motor does the Barracuda 600 use? It runs on a 12V electrical system with a 1000 Watt motor, drawing 18 Amps while lowering and 47 Amps while retrieving, protected by an 80 Amp circuit breaker.

What material is the AnchorLift B612 windlass made from? The Barracuda 600 is constructed of 316L stainless steel for corrosion resistance in a marine environment.

What size anchors work with this windlass? The Barracuda 600 is designed to work with anchors weighing 13 lbs to 22 lbs, with a total ground tackle weight of 132 lbs.

What deck thickness is required to install the Barracuda 600? Installation requires a deck thickness of 3/4 inch to 1.5 inches.

What comes included with the AnchorLift Barracuda 600? The B612 package includes the windlass unit, motor and gearbox, solenoid, circuit breaker, handle, gear box, backing plate, EPDM base gasket, thread locker, hardware, and a mounting template.

How much does the Barracuda 600 windlass weigh? The Barracuda 600 windlass unit weighs 16 lbs, with a total shipping weight of 20.6 pounds.

What gauge cable is needed to wire the Barracuda 600? The AnchorLift B612 requires 2-4 AWG cable for its 12V electrical connection.

Can the Barracuda 600 be used with rope only or chain only? Yes, the Barracuda 600 is able to work with a rope/chain combination or with a chain-only setup, using chain up to 1/4 inch and rope up to 1/2 inch.
