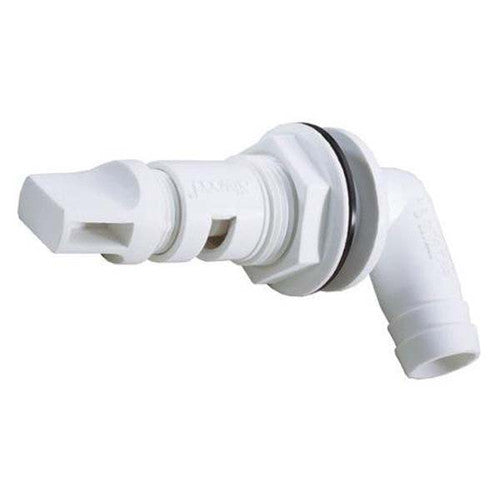

Attwood 4125-7 Adjustable Livewell Spray Head, 3/4 Inch Hose ID

The Attwood 4125-7 is an adjustable spray head designed to aerate livewell water and keep bait healthier for longer trips. It mounts on the side of the tank and connects to a 3/4 inch inside diameter hose, delivering a directional spray that boosts dissolved oxygen levels inside the livewell. Because the head is adjustable, you can angle the spray to suit your tank layout rather than being locked into a fixed spray pattern.

Constructed of polished polypropylene, the 4125-7 resists the corrosion and UV degradation that can affect livewell fittings exposed to constant moisture and sunlight. It is built to fit tanks with a maximum 5/8 inch tank wall thickness, and it meets ANSI 372 and NSF 61 specifications, standards relevant to marine plumbing fittings that contact water. The compact one-piece design makes it a straightforward addition or replacement for anglers maintaining a livewell aeration or recirculation system.

Specifications

• Brand: Attwood
• Manufacturer Part Number: 4125-7
• Type: Adjustable Spray Head
• Material: Polypropylene
• Finish: Polished
• Specification Met: ANSI 372, NSF 61
• Hose Inside Diameter: 3/4 inch
• Maximum Tank Wall Thickness: 5/8 inch
• Weight: 0.2333 pounds
• UPC: 022697412539

Fitment

Designed for mounting on the side of livewell tanks with a wall thickness up to 5/8 inch, using 3/4 inch inside diameter hose.

Frequently Asked Questions

What hose size does the Attwood 4125-7 spray head use? The Attwood 4125-7 is built for 3/4 inch inside diameter hose.

Is the 4125-7 spray head adjustable? Yes, the 4125-7 is Attwood's adjustable spray head, letting you angle the spray direction inside the livewell rather than relying on a fixed pattern.

What material is the Attwood 4125-7 made from? It is made of polished polypropylene, chosen for its resistance to corrosion and UV exposure in a wet livewell environment.

How thick can the tank wall be for this spray head to fit? The 4125-7 is designed for tanks with a maximum wall thickness of 5/8 inch.

Where does the 4125-7 mount on a livewell tank? It is intended for mounting on the side of the livewell tank.

Does the Attwood 4125-7 meet any industry standards? It meets ANSI 372 and NSF 61 specifications, which apply to marine plumbing components in contact with water.

How much does the 4125-7 spray head weigh? The Attwood 4125-7 weighs 0.2333 pounds.

What is the finish on the Attwood 4125-7? It has a polished finish on its polypropylene body.

Can the 4125-7 be used with a recirculating pump? The 4125-7 is an adjustable spray head for aerating livewell water; Attwood's related double valve spray head design supports both fill and recirculating pump uses, so check your setup against the 4125-7's single adjustable spray function before ordering.

What is the UPC for the Attwood 4125-7 spray head? The UPC for the Attwood 4125-7 livewell spray head is 022697412539.
