What size hole do I need to cut for this deck plate?

Both DP85 colors require an 8-1/2 inch diameter hole cut in the deck to accept the base.

What is the clear opening once installed?

Once installed, the DP85 provides a 7-5/8 inch clear passage opening for access below the deck, regardless of color chosen.

How big is the deck plate on the outside?

The DP85 has a 10 inch overall outside diameter, which is the visible flange size on the deck surface, the same for both Black and White.

Is the lid removable or hinged?

The DP85 is a pry-out style deck plate, so the lid lifts completely free of the base rather than staying attached with a hinge.

Which color should I pick, Black or White?

Both colors are identical in size, cut hole, and passage diameter, so choose based on which best matches or contrasts with your deck: Black for dark non-skid areas, White for light-colored decks.

Does the color affect the fit or performance?

No, Black and White DP85 deck plates are dimensionally identical and install the same way; the only difference is the lid color and matching diamond non-skid texture.

How much does the deck plate weigh?

Each DP85 deck plate weighs 1 pound.

Does it come as a complete unit?

Yes, each DP85 ships as a single complete unit consisting of one base and one pry-out lid.

Is the surface slip-resistant?

Yes, both colors feature a molded diamond non-skid texture for secure footing in wet conditions.

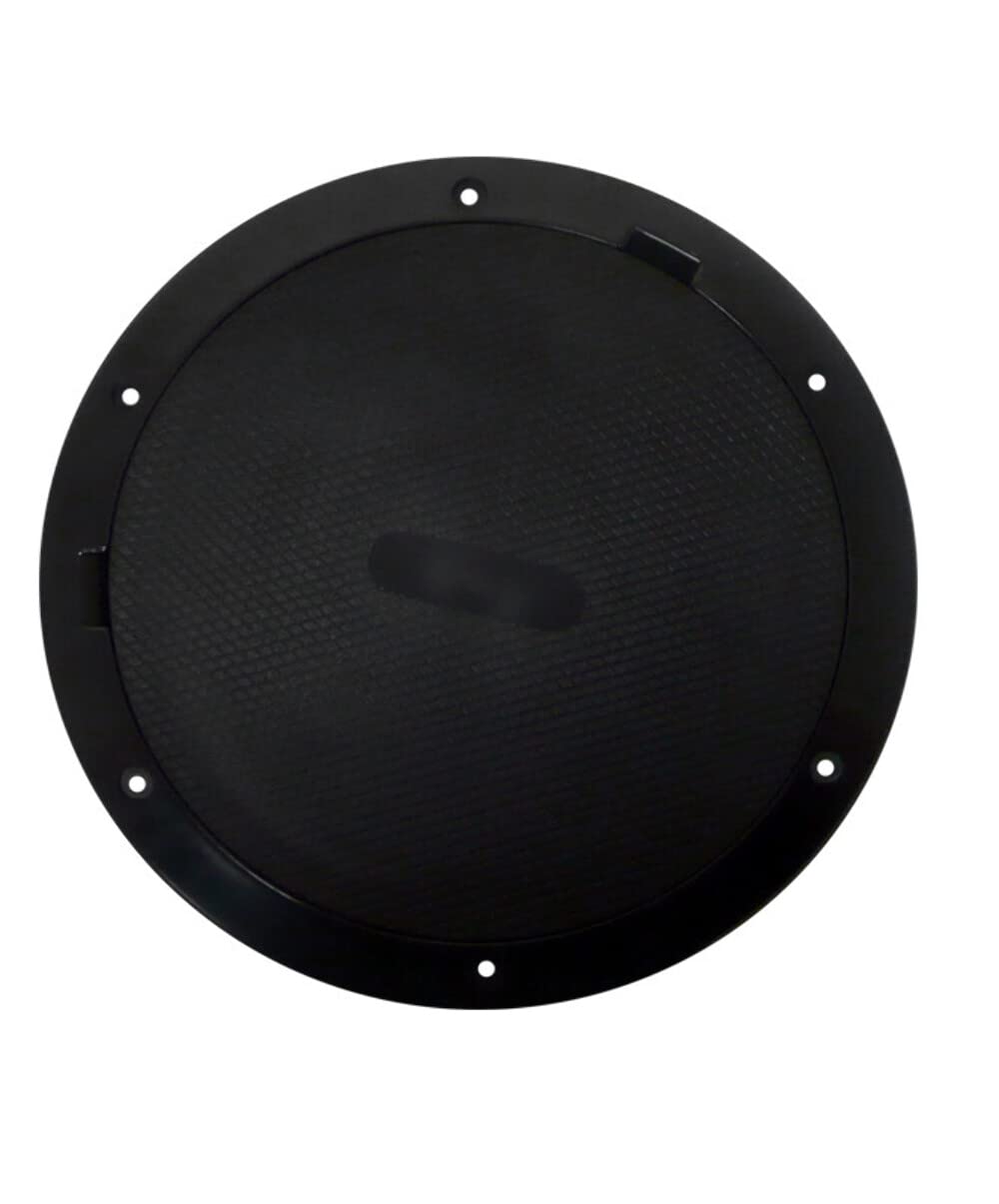

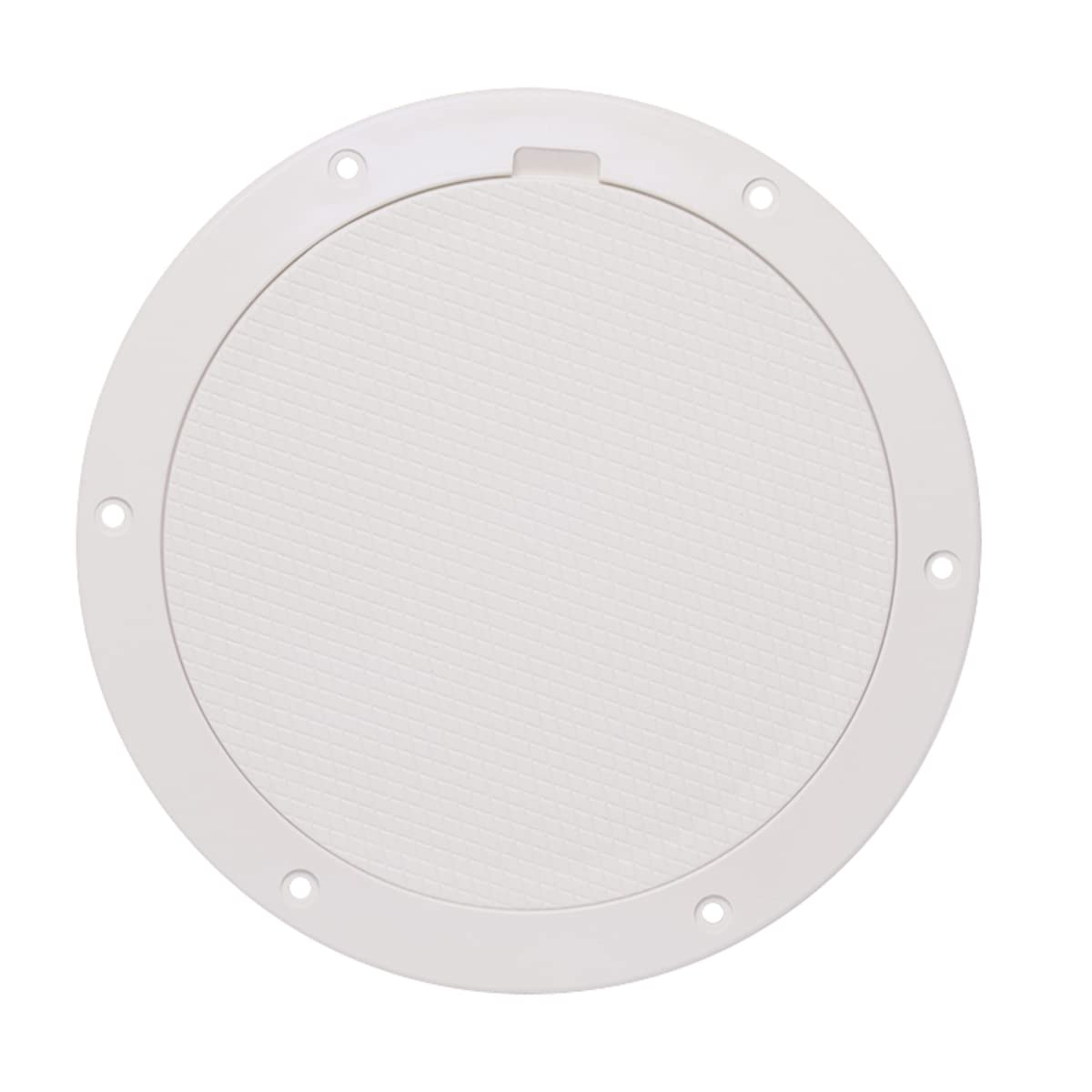

Beckson DP85 8" Pry-Out Deck Plate - Black/White

Beckson Marine 8" Pry-Out Deck Plate, DP85 Series - Black or White Diamond Non-Skid

$46.03

The Beckson DP85 series pry-out deck plate is a rugged, low-profile access hatch built for boat decks, cockpit soles, and hull compartments where you need a secure, watertight-fitting cover over below-deck wiring, plumbing, storage, or thru-hull access. The lid lifts completely free of the base (no hinge to bind, corrode, or snag lines) and its molded diamond non-skid texture keeps footing sure even when the deck is wet. Choose the color that matches your deck: Black for dark non-skid or contrast trim, White for light-colored decks and a clean, factory-molded look.

Specifications

Brand: Beckson Marine
Style: Pry-out (lift-out lid, no hinge)
Outside Diameter: 10 inches (25.4 cm)
Hole Cut Diameter: 8-1/2 inches (21.6 cm)
Passage Diameter: 7-5/8 inches (19.4 cm)
Finish: Diamond non-skid texture
Weight: 1 pound
Number of Items: 1

Sizes & Options

This deck plate is available in two lid colors, Black and White, at the same 8 inch nominal size (10 inch outside diameter, 8-1/2 inch cut hole). Pick the color that best matches or contrasts with your existing deck non-skid and hardware finish; both colors share identical dimensions, mounting, and access opening, so the choice is purely cosmetic.
