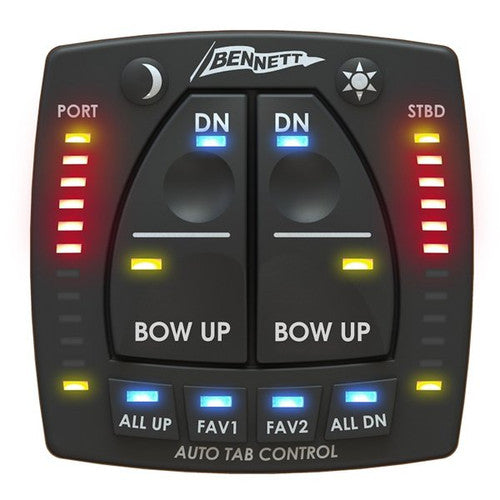

Bennett Hydraulic Pro Auto Trim Tab Switch, Part 6BT500956500, for Electric or Hydraulic Trim Tab Systems

The Bennett Hydraulic Pro Auto Trim Tab Switch is an all-in-one trim tab control keypad that combines automatic trim tab control, manual trim tab control, and trim tab position indication in a single space-saving unit. Acting like cruise control for your trim tabs, it automatically levels the pitch and roll of the boat, adjusting the tabs as vessel speed, sea conditions, and weight distribution change, while still letting the operator take full manual command at any time with the touch of a button. This switch is an affordable upgrade that can be added to most existing trim tab systems, electric or hydraulic, and is fully compatible with all Bennett systems as well as most other trim tab setups. Installation is simple and straightforward.

Key functions include auto trim tab control with memory storage for two favorite running attitudes, real-time AutoTrim Pro adjustment indication via LED, manual tab control with automatic override activated by pressing anywhere on the bow up or down buttons, and OEM-customizable response time so the system can be tuned to engine power, hull type, actuator type, or trim tab size. Trim tab position is shown through LED indicators with adjustable light intensity, and one-touch manual full up and full down buttons make it easy to go down for hole-shot or up for running in a following sea or coming into the beach. An automatic tab retraction feature returns the tabs to the full up position whenever the boat's ignition is switched off, helping protect the tabs during storage and trailering.

Specifications

• Brand: Bennett
• Manufacturer Part Number: 6BT500956500
• Type: Trim Tab Switch
• Style: Electric Trim Tabs
• Compatibility: Electric or hydraulic trim tab systems
• Color: Beige
• Product UPC: 666285202050
• Weight: 5 pounds

Fitment

Compatible with most existing electric or hydraulic trim tab systems; fully compatible with all Bennett trim tab systems and most other brands.

Replaces (OEM)

No OEM cross-reference numbers are listed for this part.

Frequently Asked Questions

What does the Bennett Hydraulic Pro Auto Trim Tab Switch do? It is an all-in-one trim tab control system that combines automatic trim tab control, manual trim tab control, and trim tab position indication in a single space-saving keypad, automatically leveling the boat's pitch and roll as speed and sea conditions change.

Will this switch work with a hydraulic trim tab system? Yes, the Bennett Hydraulic Pro Auto Trim Tab Switch (6BT500956500) can be added to most existing trim tab systems, whether electric or hydraulic, and is fully compatible with all Bennett systems and most others.

Can I still control the trim tabs manually with this switch? Yes. In addition to automatic control, the Bennett Hydraulic Pro switch allows full manual control at any time with the touch of a button, and includes one-touch manual full up and full down buttons for quick adjustments.

How does the automatic leveling feature work? The Bennett Hydraulic Pro's AutoTrim Pro function automatically adjusts trim tab position to level the boat's pitch and roll as vessel speed, sea conditions, and weight distribution shift, and it can store two favorite automatic running attitudes in memory.

Does this switch show trim tab position? Yes, the switch is equipped with LED indicators with adjustable light intensity that show trim tab position, along with real-time indication of AutoTrim Pro adjustments.

What happens to the trim tabs when the ignition is turned off? The Bennett Hydraulic Pro Auto Trim Tab Switch includes automatic tab retraction, which returns the trim tabs to the full up position whenever the boat's ignition is switched off, helping protect them during storage and trailering.

Can the response time of the trim tab system be adjusted? Yes, the Bennett Hydraulic Pro switch offers OEM customizable response time so it can be configured to match engine power, hull type, actuator type, or trim tab size.

How much does the Bennett Hydraulic Pro Auto Trim Tab Switch weigh? The Bennett Hydraulic Pro Auto Trim Tab Switch, part number 6BT500956500, weighs 5 pounds.

What color is the Bennett Hydraulic Pro Auto Trim Tab Switch? This switch is finished in beige.

Is installation of this trim tab switch complicated? No, Bennett describes installation of the Hydraulic Pro Auto Trim Tab Switch as simple and straightforward.
