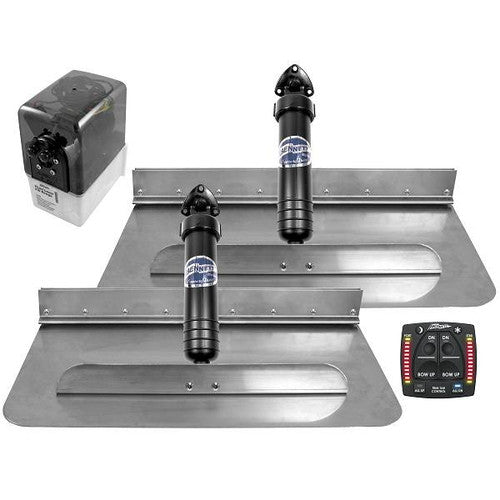

Bennett Marine 24 x 12 Inch Hydraulic Trim Tab Kit with All-in-One Indicator Control, 6BT501109100

This Bennett Marine hydraulic trim tab kit gives boaters 24 inch wide by 12 inch deep trim tab planes paired with an All-in-One Indicator Control unit at the helm. Hydraulic trim tabs like these help a boat get on plane faster and stay on plane at intermediate speeds, which reduces hull drag from bow rise and improves fuel efficiency. They also let the operator correct listing and uneven loads, reduce pounding, and eliminate porpoising for a smoother, safer ride.

The kit uses Bennett's exclusive transom mount interlocking tab design with a riveted angle tab style rather than welded construction. Two hydraulic actuators push the tab planes into position, and all hydraulic lines and wiring run internally, concealed by the upper hinge so they are not exposed to harsh marine conditions. The included All-in-One Indicator Control is a stand-alone helm unit with dedicated All Up and All Down buttons and automatic tab retraction that raises the tabs whenever the ignition is powered off, simplifying operation for the boater.

The complete kit ships with everything needed for installation: two trim plane assemblies, two A1101A hydraulic trim tab actuators, a V351HPU1 hydraulic power unit, and hydraulic tubing and hardware. The trim tab hardware is backed by a limited lifetime warranty, and the All-in-One Indicator Control carries a 3 year warranty.

Specifications

• Brand: Bennett Marine
• Manufacturer Part Number: 6BT501109100
• Type: Trim Tab Kit
• Style: Hydraulic Trim Tabs
• Trim Tab Blade Width: 24 inches
• Trim Tab Blade Depth: 12 inches
• Control Type: All-in-One Indicator Control (OBI9000H)
• Tab Design: Exclusive transom mount interlocking tab design, riveted angle tab style
• Actuators Included: (2) A1101A hydraulic trim tab actuators
• Hydraulic Power Unit: V351HPU1
• Product Weight: 35 pounds
• Product Dimensions: 38 x 15 x 5 inches
• Trim Tab Warranty: Limited lifetime warranty
• Control Warranty: 3 year warranty

Frequently Asked Questions

What size are the trim tab planes in this Bennett kit? The trim tab planes on the Bennett 6BT501109100 kit measure 24 inches wide by 12 inches deep, sized to give larger boats more surface area for planing and load correction.

Does this kit include a helm control unit? Yes, the Bennett 6BT501109100 hydraulic trim tab kit includes an All-in-One Indicator Control unit with dedicated All Up and All Down buttons and automatic tab retraction when the ignition is powered off.

What actuators and power unit come with this trim tab kit? Two Bennett A1101A hydraulic trim tab actuators are included, along with a V351HPU1 hydraulic power unit and the hydraulic tubing and hardware needed for installation.

Is the hydraulic tubing and wiring exposed to the elements? No. On the Bennett 6BT501109100 kit, all hydraulic lines and wires run internally and are concealed by the upper hinge, protecting them from harsh marine conditions.

How much does this trim tab kit weigh? The Bennett 6BT501109100 hydraulic trim tab kit weighs 35 pounds.

What are the packaged dimensions of this kit? This trim tab kit ships in a package measuring 38 x 15 x 5 inches.

What warranty applies to this trim tab kit? The trim tab hardware on the Bennett 6BT501109100 kit carries a limited lifetime warranty, while the included All-in-One Indicator Control is backed by a separate 3 year warranty.

What kind of tab design does this kit use? It uses Bennett's exclusive transom mount interlocking tab design with a riveted angle tab style, rather than a welded construction that can invite corrosion.

Can this kit correct uneven loads on my boat? Yes. Beyond getting the boat on plane faster, the tab planes on the Bennett 6BT501109100 kit can be adjusted to correct listing and uneven weight distribution.

What is included in the box with this trim tab kit? The complete Bennett 6BT501109100 kit includes two trim plane assemblies, two A1101A hydraulic actuators, one V351HPU1 hydraulic power unit, hydraulic tubing and hardware, and the All-in-One Indicator Control.

How does the All-in-One control differ from a standard rocker switch control? The All-in-One Indicator Control included with this kit is a stand-alone helm unit with dedicated All Up and All Down buttons and auto tab retraction, rather than a simple manual rocker switch used on Bennett's Euro-style controlled kits.
