Blue Sea Systems AA1 Toggle Circuit Breaker, Single Pole, 65V DC - Available in 10A White to 20A Black

The Blue Sea Systems AA1 Toggle Circuit Breaker is a trip-free, panel-mount DC circuit breaker built for reliable overcurrent protection on boats and other 12V/24V DC electrical systems. Each breaker uses a positive-trip toggle mechanism that cannot be held closed against an active fault, so a tripped circuit stays open until the underlying problem is resolved. The AA1 series is a mainstay on marine panels for protecting lighting circuits, accessories, pumps, and other branch loads, and the color-coded toggle caps make it easy to visually identify circuit function or amperage at a glance across a panel.

Specifications

• Brand: Blue Sea Systems
• Circuit Breaker Type: Standard, trip-free toggle
• Number of Poles: 1 (Single Pole)
• Voltage Rating: 65V DC
• Mounting Type: Panel Mount
• Minimum Operating Temperature: -40 degrees F (-40 degrees C)
• Package Quantity: 10

Sizes & Options

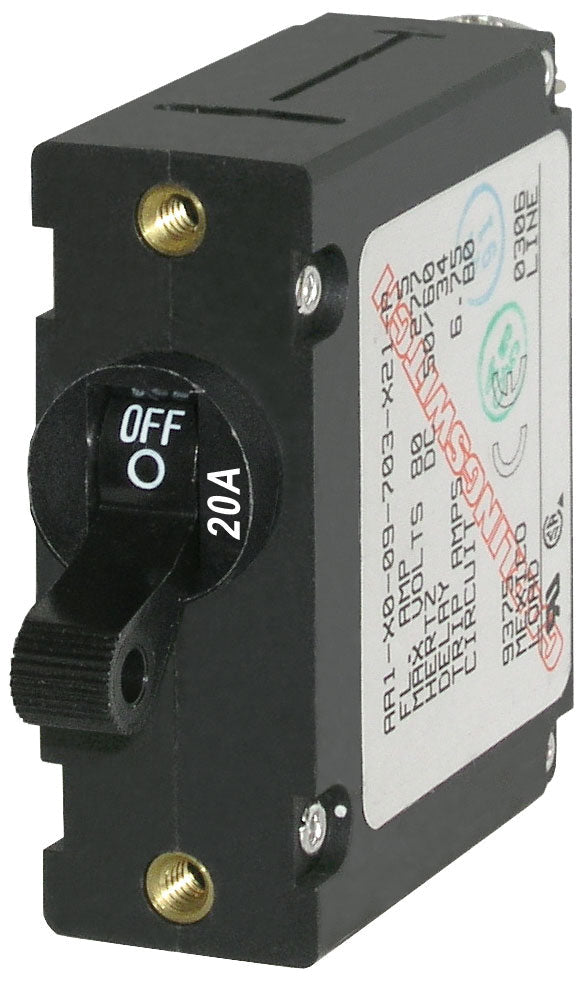

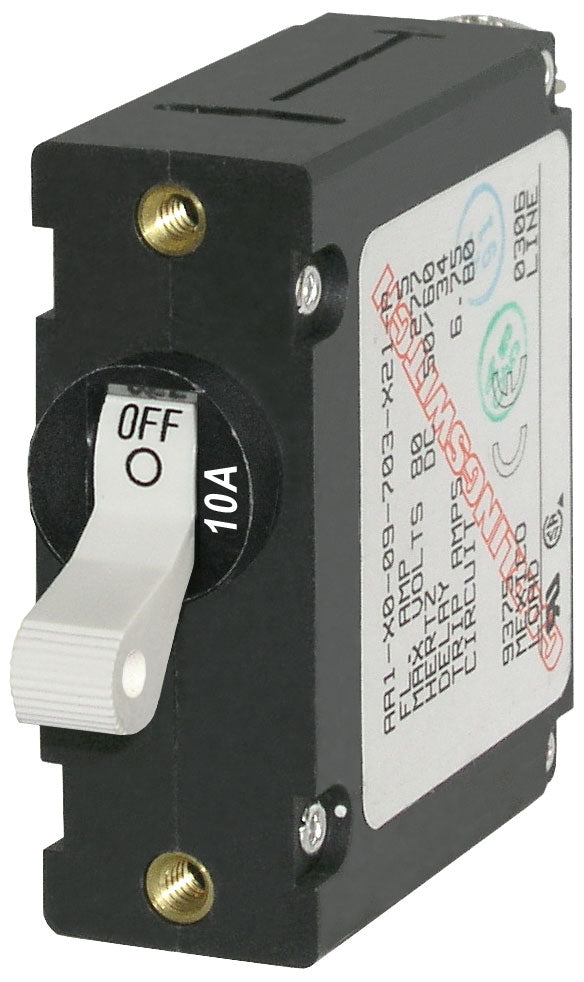

This breaker is available in two amperage and color combinations. Choose the 10 Amp White (7206) for lighter-draw circuits such as cabin lighting or small accessories, or the 20 Amp Black (7212) for higher-draw branch circuits such as pumps or larger accessory loads. Match the breaker's amperage to the ampacity of the wire and the current draw of the device it protects, and use the toggle color to help keep your panel circuits visually organized.
