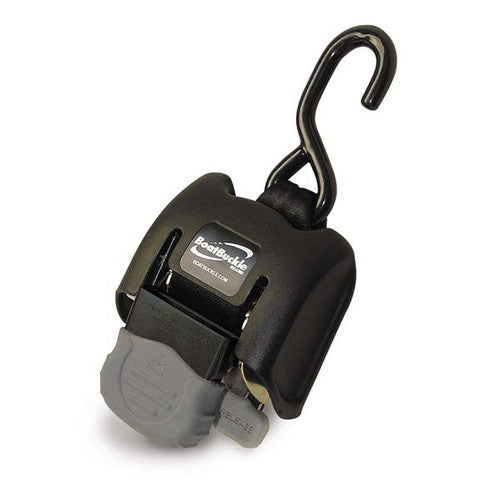

BoatBuckle F08893 Retractable Transom Tie Down Straps, 2,500 lb Break Strength, 43 Inch, Pair

The BoatBuckle F08893 Retractable Transom Tie Down Straps are a self-retracting, one-hand tie-down system for securing a boat to its trailer at the transom. Each strap uses a two-inch, seat belt quality polyester web that automatically retracts out of the way when not in use, eliminating loose, flapping strap ends during transport. The system features automotive-style webbing, anti-corrosive construction, and sturdy coated hooks, along with a contoured Sur-Grip rubber coated handle and release lever for comfortable, simple one-hand operation. A dual release lever gives easy access when it is time to disconnect the strap. The mounting bracket adapts to most mounting angles for a straight-line pull to the transom eye.

Straps are sold as a pair and are designed for one-bolt permanent installation to the trailer frame, using the mounting bolt, washer, and locknut included in the box. Standard length extends up to 43 inches, and each strap carries a break strength of 2,500 pounds with a safe working load of 833 pounds. This is a universal tie-down system intended for use with the trailer's existing mounting tab or a drilled mounting hole, rather than a fitment tied to a specific make or model.

Specifications

• Brand: BoatBuckle
• Manufacturer Part Number: F08893
• Product Type: Retractable Transom Tie Down Strap
• Quantity: Sold as a pair (2 straps)
• Standard Length: Up to 43 inches
• Strap Width: 2 inches
• Break Strength: 2,500 pounds per strap
• Safe Working Load: 833 pounds per strap
• Material: Seat belt quality polyester webbing with coated steel hooks
• Handle: Sur-Grip rubber coated handle and release lever
• Mounting Hardware: Includes mounting bolt, washer, and locknut
• Mounting Hole Size: 7/16 inch
• Maximum Mounting Torque: 45 foot-pounds
• Recommended Tie-Down Point Distance: 12 to 41 inches from mounting hole
• Maximum Web Angle: 30 degrees from vertical
• Weight: 4.98 pounds
• UPC: 079111088931

Fitment

Universal one-bolt mounting to a trailer frame; use the trailer's existing mounting tab or drill a 7/16 inch hole, with the tie-down point positioned 12 to 41 inches from the mounting hole.

Replaces (OEM)

No OEM cross-reference numbers are specified for this part.

Frequently Asked Questions

What comes in the box with the BoatBuckle F08893 Transom Tie Down Straps? The F08893 is sold as a pair of retractable transom tie down straps, and each strap includes a mounting bolt, washer, and locknut for one-bolt permanent installation to the trailer frame.

How long is the BoatBuckle F08893 strap? The standard length is up to 43 inches, with a two-inch wide, self-retracting polyester web that pulls back out of the way when not in use.

What is the break strength and safe working load of the F08893 strap? Each F08893 strap has a break strength of 2,500 pounds and a safe working load of 833 pounds per strap.

How do I install the BoatBuckle F08893 transom tie downs? Use the trailer's existing mounting tab, or drill a 7/16 inch hole into the trailer frame, positioning the tie-down point 12 to 41 inches from the mounting hole; attach the F08893 using the included bolt, washer, and locknut, swivel it in line for a straight-line pull to the transom eye, then tighten to no more than 45 foot-pounds of torque.

Can the BoatBuckle F08893 be used at an angle? The mounting bracket adapts to most mounting angles, but the web angle should not exceed 30 degrees from vertical when in use; for angled installations a universal mounting kit (part number F14254A) is available separately.

Is the F08893 suitable for saltwater use? The F08893 features anti-corrosive construction but is not intended for brackish or saltwater environments; for those conditions the stainless steel BoatBuckle G2 version (part numbers F14256EC/F14256) is the recommended alternative.

How does the retractable design of the F08893 work? The two-inch polyester web self-retracts out of the way when the strap is released, so there is no loose strap flapping during transport, and the one-touch release lever lets you disconnect with one hand.

Does the BoatBuckle F08893 require a ratchet mechanism? No, the F08893 is a self-retracting tie-down system operated with a single-hand release lever rather than a manual ratchet, which speeds up hooking and unhooking compared to a standard ratchet strap.

How much does the BoatBuckle F08893 pair weigh? The pair of F08893 transom tie down straps weighs 4.98 pounds.

What is the maximum mounting torque for the F08893 bolt? Do not exceed 45 foot-pounds of torque when tightening the mounting bolt on the F08893 transom tie down.

Are the hooks included with the F08893 straps? Yes, each F08893 strap comes with sturdy, coated hooks as part of the automotive-style webbing assembly.
