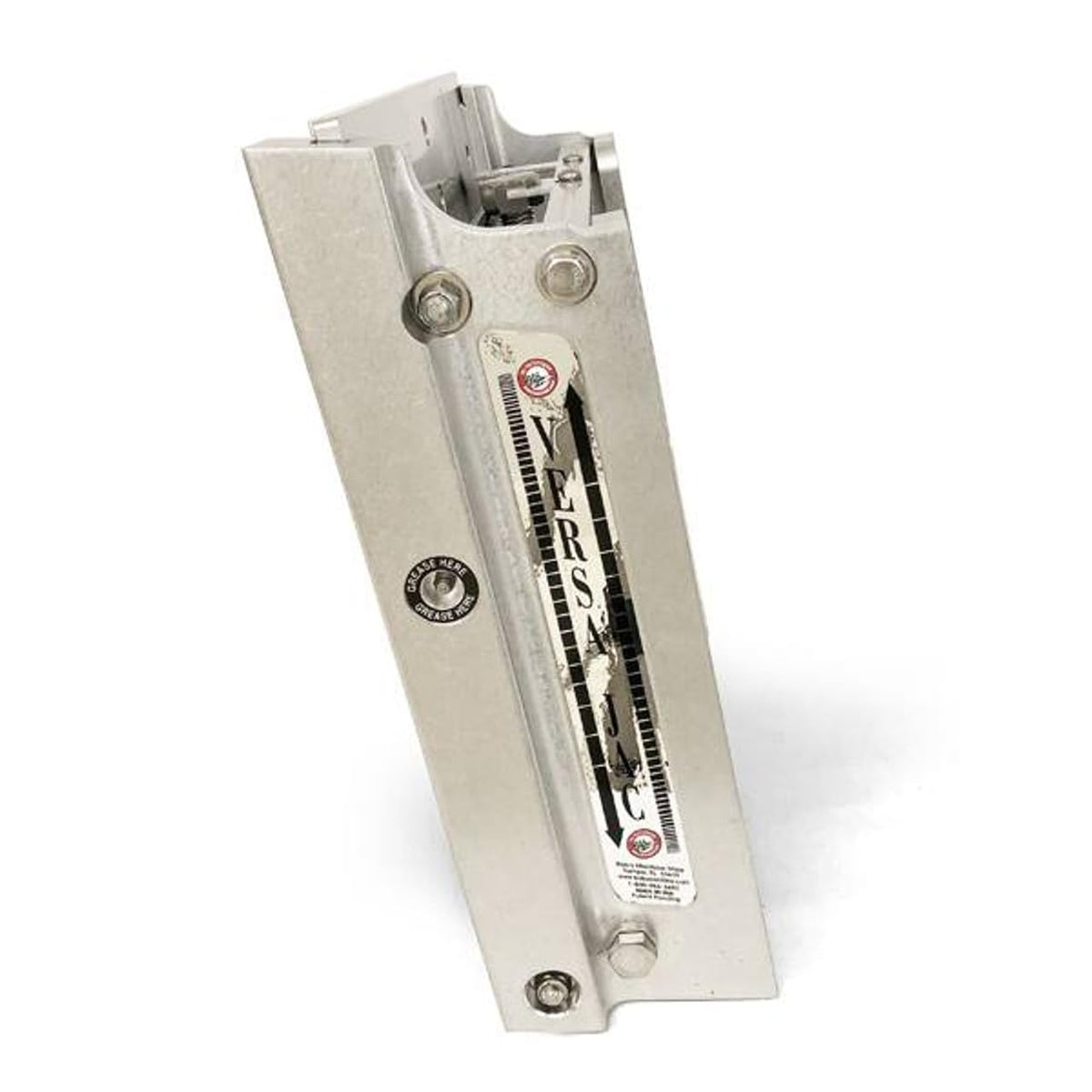

Bob's Machine 10 Inch Setback Versa Series Manual Jack Plate, 300 HP Max

The Bob's Machine 10 Inch Setback Versa Series Manual Jack Plate is a manually operated jack plate built for boaters who want precise control over outboard engine height and setback without committing to a hydraulic system right away. Machined from aluminum, the plate provides a 10 inch setback and is rated for outboards up to 300 HP, with a load capacity of 615 pounds. Adjustable tension rods allow the operator to fine-tune engine positioning, helping optimize boat performance, top-end speed, and handling by letting the outboard be raised, lowered, or set back from the transom as conditions require.

A key advantage of the Versa Series design is upgrade flexibility: the manual jack plate is built so that boaters can convert to a hydraulic jack plate later without replacing the entire unit, making it a practical entry point for anyone not ready for a full hydraulic setup. It is made in the USA and finished in aluminum for corrosion resistance in marine environments.

Specifications

• Brand: Bob's Machine
• Manufacturer Part Number: 100-510000-NOPC-NOSPN
• Product Type: Jack Plate
• Operation: Manual
• Setback: 10 inches
• Maximum Horsepower Rating: 300 HP
• Load Capacity: 615 pounds
• Material: Aluminum
• Weight: 68 pounds
• Dimensions (L x W x H): 21.5 x 19 x 17 inches
• Adjustment Feature: Adjustable tension rods
• Country of Origin: Made in the USA

Frequently Asked Questions

What is the maximum horsepower rating for this jack plate? The Bob's Machine 10 Inch Setback Versa Series Jack Plate is rated for outboards up to 300 HP.

How much weight can this jack plate support? It has a load capacity of 615 pounds.

Is this jack plate manual or hydraulic? This is a manually operated jack plate, part of Bob's Machine's Versa Series.

Can I upgrade to hydraulic later? Yes, the Versa Series manual jack plate is designed so it can be upgraded to a hydraulic jack plate at a later time.

What material is the jack plate made from? The jack plate is made from aluminum.

How much setback does this jack plate provide? It provides 10 inches of setback for the outboard engine.

What are the dimensions of the Versa Series jack plate? The Bob's Machine 100-510000 jack plate measures 21.5 x 19 x 17 inches.

How much does this jack plate weigh? The jack plate weighs 68 pounds.

Is engine position adjustable on this jack plate? Yes, adjustable tension rods allow fine-tuning of the engine mounting position on this Bob's Machine jack plate.

Where is this jack plate manufactured? The Bob's Machine 10 Inch Setback Versa Series Jack Plate is made in the USA.
