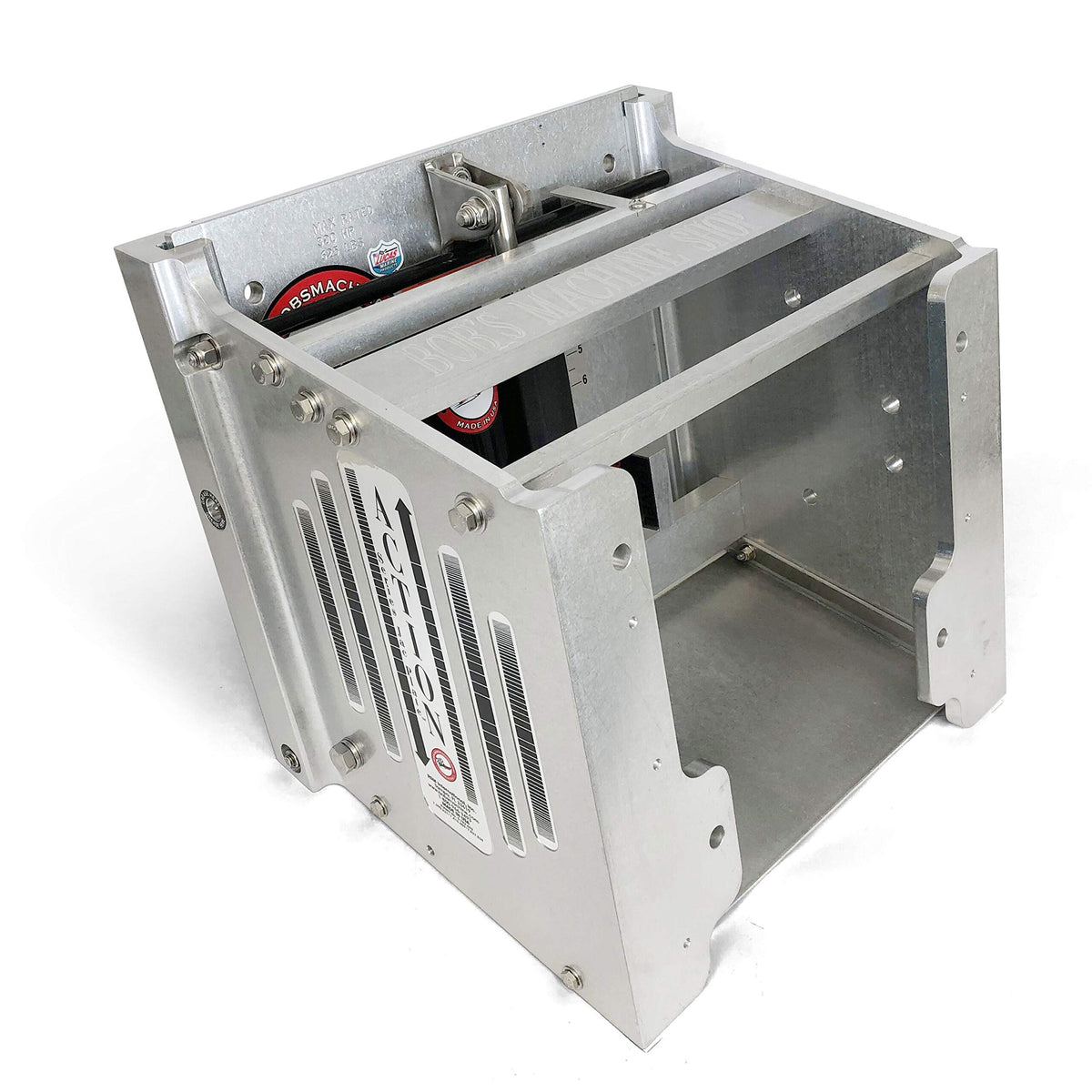

Bob's Machine 100-112112-NOPC-NOSPN-NG Action Series Jack Plate, 12 Inch Setback, 300 HP Max

The Bob's Machine Action Series Jack Plate is a 12 inch setback jack plate built for outboards rated up to 300 HP. It uses a one-piece design, so there are no bolt-on C-channels needed to add setback, and the hydraulic pump is internally mounted for straightforward rigging. The pump can be converted to sit inside the boat if the owner prefers that style of hydraulic setup. A large, powerful motor drives the plate and can lift a heavy outboard under full power in six seconds, providing 7.5 inches (19 cm) of lift. The plate is predrilled for side mount shallow water anchors, which are sold separately, and plug-and-play wiring makes installation straightforward. Each unit comes complete with a wiring harness, control switch, automotive grease fittings, and adjustable tension rods, so no separate hardware purchase is needed to get the plate rigged and running. Construction is backed by a limited lifetime warranty against structural defects. This jack plate suits boat owners looking to gain performance, fuel efficiency, and shallow-water capability by mounting their outboard further aft and adjusting running height on the water.

Specifications

• Brand: Bob's Machine
• Manufacturer Part Number: 100-112112-NOPC-NOSPN-NG
• Setback: 12 inches (30 cm)
• Lift: 7.5 inches (19 cm)
• Maximum Horsepower: 300 HP
• Weight: 75 pounds
• Product Dimensions: 12.01 x 16.73 x 13.78 inches
• Design: One-piece construction with internally mounted hydraulic pump
• Included Components: Wiring harness, control switch, automotive grease fittings, adjustable tension rods
• UPC: 818377010047
• Warranty: Limited lifetime against structural defects

Frequently Asked Questions

How much setback does this jack plate provide? The Bob's Machine 100-112112-NOPC-NOSPN-NG jack plate provides 12 inches (30 cm) of setback, moving the outboard further aft from the transom.

What is the maximum horsepower rating for this jack plate? This jack plate is rated for outboards up to 300 HP.

How much lift does the jack plate offer? It provides 7.5 inches (19 cm) of lift, allowing the outboard's running height to be adjusted on the water.

How fast can the plate raise a heavy outboard? The onboard motor can lift a heavy outboard under full power in six seconds.

Where is the hydraulic pump located on this jack plate? The 100-112112-NOPC-NOSPN-NG uses a one-piece design with the hydraulic pump internally mounted for easier rigging, though it can be converted to a pump-inside-the-boat configuration if preferred.

What does the jack plate weigh? The complete unit weighs 75 pounds.

What are the overall dimensions of the jack plate? Product dimensions are 12.01 x 16.73 x 13.78 inches.

What is included with the jack plate? Each Bob's Machine jack plate ships with a wiring harness, control switch, automotive grease fittings, and adjustable tension rods.

Can shallow water anchors be added to this jack plate? Yes, the plate is predrilled for side mount shallow water anchors, which are sold separately.

Does installation require bolting on separate setback channels? No. The one-piece design of the 100-112112-NOPC-NOSPN-NG eliminates the need for bolt-on C-channels to achieve setback.

What warranty coverage applies to this jack plate? It carries a limited lifetime warranty against structural defects.

Is the wiring for this jack plate easy to connect? Yes, the jack plate uses plug-and-play wiring for a straightforward electrical connection during installation.
