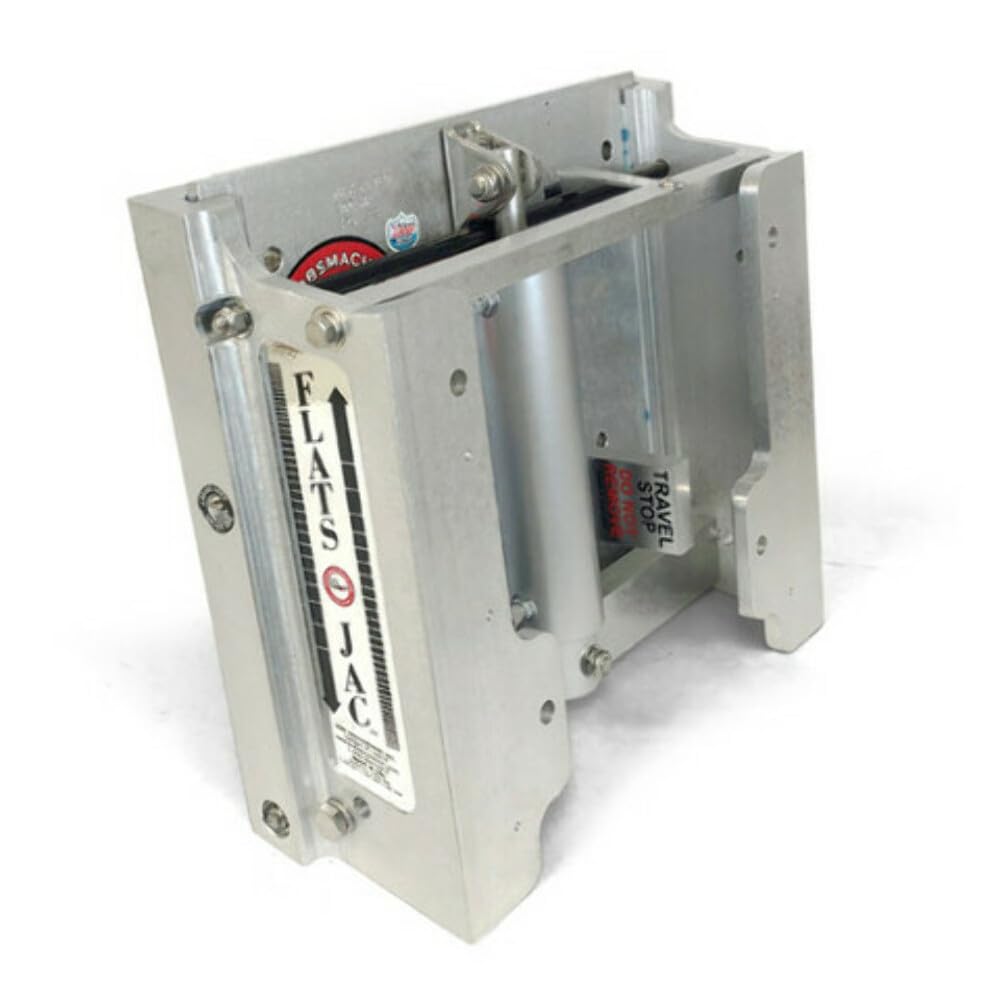

Bob's Machine Hydraulic Jack Plate, 6 Inch Setback, 300 HP Outboard, 625 lb Capacity

The Bob's Machine 100-106000-NOPC-NOSPN-NG is a hydraulic jack plate built for outboard boats, giving the boater a way to adjust the mounting height and setback of the outboard motor to improve top speed, holeshot, fuel efficiency, and access to shallow water. This unit is built with a 6 inch setback and a one-piece design, so no separate setback spacers are needed to achieve that offset. The plate provides 7.5 inches of vertical lift for adjusting motor height, and is rated for outboard motors up to 300 HP and up to 625 lbs; motors heavier than that should use a heavier-duty jack plate instead.

The hydraulic pump is mounted remotely inside the boat rather than on the transom, which keeps the pump dry and protected from spray while also keeping weight off the transom and improving handling. The plate is constructed from alloy steel with a silver finish for durability in a marine environment, and includes automotive-style grease nipples for routine lubrication along with tension rods for structural rigidity. It is pre-drilled to accept dual side-mount power pole brackets, and ships complete with the hydraulic pump, wiring harness, hoses, control switch, and oil needed for installation. The structure carries a lifetime warranty and the hydraulic pump motor carries a 5 year warranty, both to the original end user. This jack plate is manufactured in the USA.

Specifications

• Brand: Bob's Machine
• Manufacturer Part Number: 100-106000-NOPC-NOSPN-NG
• Category: Jack Plates
• Setback: 6 inches
• Lift: 7.5 inches
• Load Capacity: 300 HP
• Maximum Motor Weight: 625 pounds
• Minimum Height: 6 inches
• Material: Alloy Steel
• Color: Silver
• Pump Location: Remote mount, internal (dry)
• Weight: 64 pounds
• UPC: 818377014595
• Structure Warranty: Lifetime (original end user)
• Pump Motor Warranty: 5 years (original end user)
• Country of Origin: Made in USA

Fitment

• Outboard motors up to 300 HP
• Outboard motors up to 625 lbs

Replaces (OEM)

• 100-106000-NOPC-NOSP

Frequently Asked Questions

What setback does this jack plate provide? The Bob's Machine 100-106000-NOPC-NOSPN-NG has a 6 inch setback, built as a one-piece unit so no separate setback spacer is required to achieve that offset.

How much lift does the jack plate offer? It provides 7.5 inches of vertical lift, letting the boater raise or lower the outboard motor for the best speed and holeshot in different water conditions.

What is the maximum motor size this jack plate can handle? This jack plate is rated for outboard motors up to 300 HP and up to 625 lbs; motors heavier than 625 lbs should use a heavier-duty jack plate instead of the 100-106000-NOPC-NOSPN-NG.

Is the hydraulic pump mounted on the transom? No, the pump is remote-mounted inside the boat rather than on the transom. This keeps the pump dry and protected while also reducing the weight hanging off the transom.

What material is the jack plate made from? The 100-106000-NOPC-NOSPN-NG is constructed from alloy steel with a silver finish, built to hold up under marine use.

What is included when I order this jack plate? The kit ships complete with the hydraulic pump, wiring harness, hoses, control switch, and oil needed to install the jack plate.

How much does this jack plate weigh? The Bob's Machine 100-106000-NOPC-NOSPN-NG weighs 64 pounds.

Does this jack plate support power pole brackets? Yes, it is pre-drilled for dual side-mount power pole brackets, so those brackets can be installed without additional drilling.

What warranty comes with this jack plate? The structure of the 100-106000-NOPC-NOSPN-NG carries a lifetime warranty to the original end user, and the hydraulic pump motor carries a 5 year warranty to the original end user.

Is there an OEM equivalent number for this part? Yes, the 100-106000-NOPC-NOSPN-NG has a listed OEM equivalent part number of 100-106000-NOPC-NOSP.

How is this jack plate lubricated? It uses automotive-style grease nipples for routine lubrication, along with tension rods for structural rigidity.

Where is this jack plate manufactured? The Bob's Machine 100-106000-NOPC-NOSPN-NG is made in the USA.
