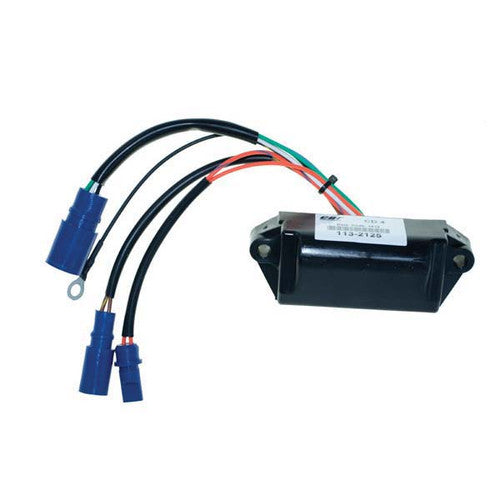

CDI Electronics 113-2125 Power Pack CD4, Johnson Evinrude 85-140 HP 1978-1984, Replaces 581805 582125 582454

The CDI Electronics 113-2125 is a CD4 power pack built for Johnson and Evinrude outboards, replacing the original ignition power pack on 85, 90, 100, 115, and 140 HP engines from 1978-1984. It provides capacitor discharge ignition control with no RPM limit, delivering full-range spark output across the engine's operating range. Two power packs are required per installation on the engines this part fits. The orange ignition coil wires plug directly into the wiring harness coming from the ignition coils, allowing for a straightforward connection during replacement. This part has been discontinued by CDI Electronics and is superseded by the Sierra 18-5759-1 CDI replacement power pack, which is the current part supplied for these same Johnson/Evinrude applications. The power pack is a direct cross-reference replacement for a wide range of original Johnson/Evinrude and OMC part numbers, making it straightforward to identify against an old, worn, or failed unit pulled from the engine. Installation instructions are available for reference when wiring the replacement pack into the existing harness.

Specifications

• Brand: CDI Electronics
• Manufacturer Part Number: 113-2125
• Product Type: Power Pack (CD4, Capacitor Discharge Ignition)
• Quantity Required: 2 per engine
• RPM Limit: No RPM Limit
• Wire Connection: Orange ignition coil wires plug into the harness from the ignition coils
• Status: Discontinued, superseded by Sierra 18-5759-1
• Weight: 0.6 pounds
• UPC: 736983850058

Fitment

• Johnson/Evinrude 85 HP, 1978-1984
• Johnson/Evinrude 90 HP, 1978-1984
• Johnson/Evinrude 100 HP, 1978-1984
• Johnson/Evinrude 115 HP, 1978-1984
• Johnson/Evinrude 140 HP, 1978-1984

Replaces (OEM)

• 113-2125
• 18-5759
• 300-03591
• 4-5759
• 581805
• 582125
• 582454
• 9-25000

Frequently Asked Questions

What engines does the CDI 113-2125 power pack fit? The CDI 113-2125 fits Johnson and Evinrude outboards rated 85 HP, 90 HP, 100 HP, 115 HP, and 140 HP, model years 1978-1984.

How many of these power packs does my engine need? This application requires 2 of the CDI 113-2125 power packs per engine, not just one.

Is the CDI 113-2125 still in production? No, the 113-2125 has been discontinued by CDI Electronics. It has been superseded by the Sierra 18-5759-1 CDI replacement power pack for the same Johnson/Evinrude applications.

What OEM part numbers does the 113-2125 replace? It replaces Johnson/Evinrude/OMC numbers 18-5759, 300-03591, 4-5759, 581805, 582125, 582454, and 9-25000, in addition to the CDI 113-2125 itself.

Does this power pack have an RPM limiter? No, the CDI 113-2125 has no RPM limit built in.

How does the power pack connect to the ignition coils? The orange ignition coil wires on the 113-2125 plug directly into the wiring harness that runs from the ignition coils.

How much does the CDI 113-2125 weigh? The CDI 113-2125 power pack weighs 0.6 pounds.

What should I buy now that the 113-2125 is discontinued? Buyers needing a replacement for the discontinued CDI 113-2125 should use the Sierra 18-5759-1 CDI power pack, its direct superseding part.

Is the 113-2125 an original CDI part or an aftermarket copy? The 113-2125 is a CDI Electronics power pack, sold under CDI's own part number for Johnson/Evinrude ignition applications.

What is the UPC for the CDI 113-2125? The UPC for the CDI Electronics 113-2125 power pack is 736983850058.
