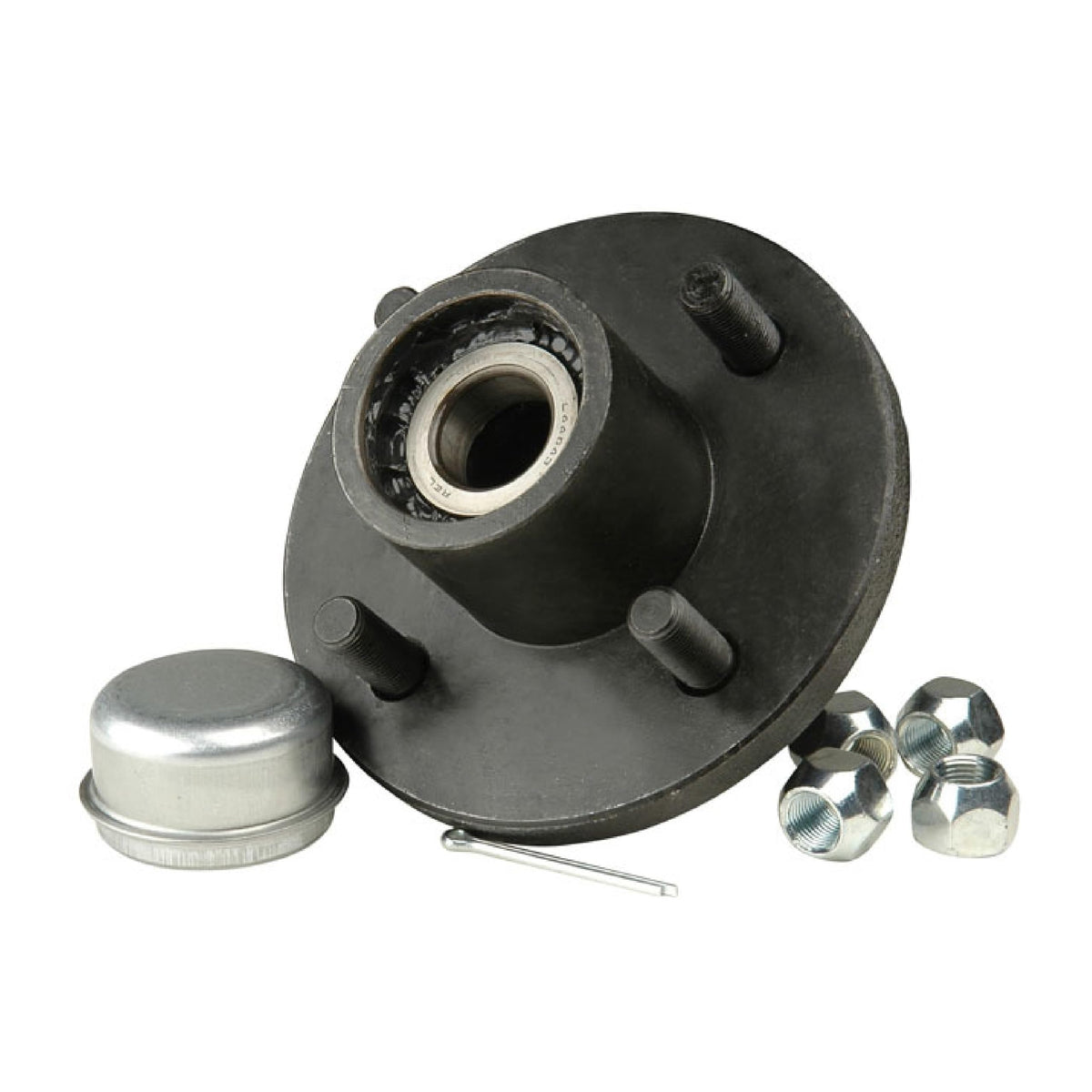

CE Smith Trailer Hub Kit 13110 - 1 Inch Spindle, 4 Lug x 4 Inch Bolt Circle, 1250 lb Capacity

The CE Smith 13110 Trailer Hub Kit is a preassembled, pregreased hub and bearing unit built for boat trailer axles with a 1 inch straight spindle. It is designed for a 1250 pound capacity and uses a four stud, 4 inch bolt circle diameter pattern, making it a common fit for standard single-axle boat trailers that use this bolt pattern and spindle size. The hub is constructed from alloy steel for durability under repeated launch and retrieval cycles, road vibration, and exposure to water and road salt.

Because the kit ships fully assembled with pregreased bearings already installed, it is intended to simplify trailer maintenance: instead of packing individual bearings, races, seals, and dust caps separately, the whole hub goes on the axle as one unit. The hub has a 1.98 inch inner diameter to fit correctly onto a 1 inch spindle axle, a 5-9/16 inch wheel flange diameter, and supports wheels up to 12 inches in maximum size. The kit includes a carry case, dust cap, cotter pin, and lug nuts, so the components needed to complete the installation are included rather than sold separately.

This hub kit is intended for buyers replacing a worn, damaged, or leaking hub and bearing assembly on a boat trailer, or for those upgrading to a preassembled unit to reduce maintenance time. It suits standard trailers using a 1 inch spindle and 4 lug x 4 inch bolt pattern rated to 1250 pounds capacity.

Specifications

• Brand: CE Smith
• Manufacturer Part Number: 13110
• Product Name: Hub Kit 1 Inch - 4 Lug
• Category: Trailer Hubs and Bearings
• Capacity: 1250 pounds
• Spindle Size: 1 inch straight spindle
• Bolt Pattern: 4 studs x 4 inch bolt circle diameter
• Hub Inner Diameter: 1.98 inches
• Wheel Flange Diameter: 5-9/16 inches
• Maximum Wheel Size: 12 inches
• Item Thickness: 1 inch
• Outside Diameter: 4 inches
• Material: Alloy steel
• Bearing Type: Roller bearing
• Compatible Lubricant: Grease
• Item Dimensions: 9.9 x 8.2 x 4.6 inches
• Weight: 7.11875 pounds
• Included Components: Hub kit, carry case, dust cap, cotter pin, lug nuts

Fitment

Fits standard boat trailers using a 1 inch straight spindle with a 4 stud, 4 inch bolt circle diameter, rated to a 1250 pound capacity.

Replaces (OEM)

No OEM cross-reference numbers are specified for this part.

Frequently Asked Questions

What spindle size does the CE Smith 13110 hub kit fit? The CE Smith 13110 is built for a 1 inch straight spindle, with a hub inner diameter of 1.98 inches sized to fit onto that spindle.

How much weight can this hub kit support? It is rated for a 1250 pound capacity, making the 13110 suitable for standard single-axle boat trailers within that load range.

Does the CE Smith 13110 come with bearings already installed? Yes, the hub kit is preassembled with pregreased bearings, so it installs onto the trailer axle as a complete unit rather than requiring separate bearing packing.

What bolt pattern does this hub use? The 13110 uses a 4 stud pattern on a 4 inch bolt circle diameter.

What is the maximum wheel size this hub will accept? The hub supports wheels up to 12 inches in maximum size, with a wheel flange diameter of 5-9/16 inches.

What material is the CE Smith 13110 hub kit made from? It is made from alloy steel, chosen for strength and durability under repeated trailer use and exposure to water.

What is included in the box with part number 13110? The kit includes the assembled hub, a carry case, dust cap, cotter pin, and lug nuts.

How much does the CE Smith 13110 hub kit weigh? The 13110 hub kit weighs 7.11875 pounds.

What are the overall dimensions of this hub kit? The hub kit measures 9.9 x 8.2 x 4.6 inches.

Is this hub kit a direct replacement for a worn or damaged trailer hub? Yes, the CE Smith 13110 is designed as a complete preassembled replacement hub for boat trailers using a 1 inch spindle and 4 lug x 4 inch bolt pattern rated to 1250 pounds.

What bearing type does the 13110 use? It uses a roller bearing design and is compatible with standard grease lubrication.

Is any assembly required before installing the 13110 on a trailer axle? No, the hub kit ships fully assembled and pregreased, so it can be installed directly onto the axle without separately packing or fitting the bearings.
