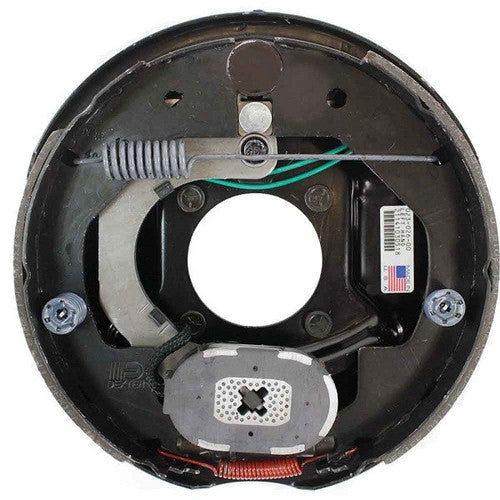

Dexter Axle 10 x 2-1/4 Inch Electric Trailer Brake Assembly, Left Hand, 3500 lbs, Fits 13 to 15 Inch Wheels - K23-026-00

The Dexter Axle K23-026-00 is a complete 10 inch x 2-1/4 inch electric brake assembly built for 3,500 lb trailer axles. This is the left hand (LH) unit; the right hand side of the trailer requires a separate, differently numbered part, so confirm you are ordering the correct side before installing. The assembly is rated for trailers running 13 to 15 inch wheels and is designed as a complete, ready-to-mount kit rather than a collection of loose parts.

The brakes are self adjusting, so they do not need periodic manual adjustment once installed. The electrical connection uses a non-polarized magnet, which means either wire on the assembly can be used as the ground or the power supply, simplifying wiring at installation. Adjuster slot plugs cover the access holes on the assembly to help keep dirt, grime, and debris out of the electric brake components and shoes over time.

Each kit includes the complete electric brake assembly, actuating lever arm, wire clips, retractor springs, shoe and lining kit, magnet kit, adjuster assembly, adjusting screw spring, adjuster slot plugs, wire grommet, anchor post washer, press-in brake mounting bolt, brake mounting nut, and dust cover. The assembly is manufactured in the USA and is intended for trailer service.

Specifications

• Brand: Dexter Axle
• Manufacturer Part Number: K23-026-00
• Type: Electric Brake Assembly
• Side: Left Hand (LH)
• Brake Size: 10 inches x 2-1/4 inches
• Capacity: 3,500 lbs
• Wheel Fitment: 13 to 15 inch wheels
• Weight: 9.48 pounds
• Vehicle Service Type: Trailer
• Orientation: Front
• Country of Origin: Made in USA
• UPC: 876983002429

Fitment

• Trailer axles using 13 to 15 inch wheels, 3,500 lb capacity

Frequently Asked Questions

What does the LH designation mean on the K23-026-00? LH stands for left hand, meaning the Dexter Axle K23-026-00 is the left-hand electric brake assembly. The right-hand side of the trailer uses a separate part number, so make sure you are ordering the side that matches the brake you are replacing.

What wheel sizes does this brake assembly fit? The K23-026-00 is designed to fit 13 to 15 inch wheels on a 3,500 lb trailer axle.

What is the weight capacity of this brake assembly? This electric brake assembly is rated for 3,500 lbs, matching a 10 inch x 2-1/4 inch brake configuration.

What comes in the K23-026-00 kit? The kit includes the complete electric brake assembly, actuating lever arm, wire clips, retractor springs, shoe and lining kit, magnet kit, adjuster assembly, adjusting screw spring, adjuster slot plugs, wire grommet, anchor post washer, press-in brake mounting bolt, brake mounting nut, and dust cover.

Are the brakes self adjusting? Yes, the Dexter Axle K23-026-00 uses self-adjusting brakes, so no periodic manual adjustment is required after installation.

How does the electrical wiring work on this brake assembly? A non-polarized magnet is used, which means either wire on the K23-026-00 assembly can serve as the ground or the power supply, simplifying the wiring hookup.

How much does the K23-026-00 weigh? The complete brake assembly weighs 9.48 pounds.

What is the brake size on this assembly? The K23-026-00 is a 10 inch x 2-1/4 inch electric brake assembly.

Is there a right-hand equivalent to this part? Yes, the K23-026-00 is the left-hand version; the right-hand brake assembly for the opposite side of the trailer carries a different Dexter Axle part number.

Where is this brake assembly manufactured? The Dexter Axle K23-026-00 electric brake assembly is made in the USA.

What type of vehicle is this brake assembly designed for? The K23-026-00 is designed for trailer service, specifically as a front electric brake assembly.

What keeps debris out of the brake assembly? Adjuster slot plugs on the K23-026-00 cover the access holes to help keep dirt, grime, and debris out of the electric brake and shoe assembly.
