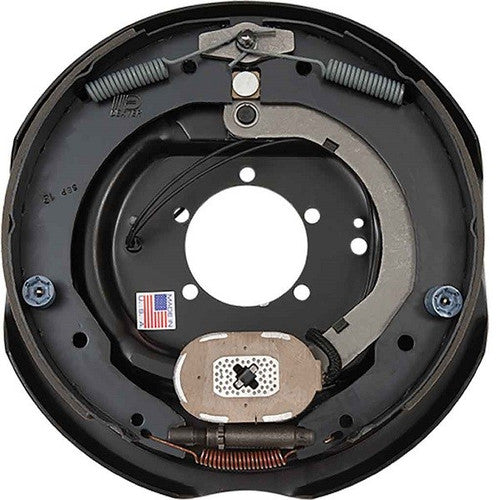

Dexter Axle Electric Trailer Brake Assembly K23-181-00, 12 x 2 Inch, Right Hand, 7,000 lb, CSA

The Dexter Axle K23-181-00 is a complete 12 x 2 inch electric trailer brake assembly built for the right hand (RH) side of a 7,000 lb trailer axle. It is an electromagnetic drum brake unit designed to bolt directly onto the axle flange, giving the trailer's electric brake controller a matched, ready-to-install backing plate and magnet assembly rather than requiring separate sourcing of individual brake components. The assembly carries CSA certification, making it suitable for trailers that require CSA-approved braking hardware.

Because this is a right hand unit, it is designed for one specific side of the axle only. The left hand counterpart for the opposite side of the trailer is a separate part, Dexter K23-180-00, so trailer owners replacing brakes on both sides need to order both part numbers, not two of the same one. The kit ships as the main brake component; it is the core electric brake assembly rather than a full hardware bundle with separate mounting fasteners.

Specifications

• Brand: Dexter Axle
• Manufacturer Part Number: K23-181-00
• Product Type: Electric Trailer Brake Assembly
• Backing Plate Size: 12 x 2 inches
• Side: Right Hand (RH)
• Load Capacity: 7,000 lbs
• Certification: CSA
• Weight: 13.85 pounds
• Included Components: Main component only
• Assembly Required: No

Fitment

Designed for 7,000 lb capacity trailer axles using a 12 x 2 inch electric brake backing plate on the right hand side.

Replaces (OEM)

No OEM cross-reference numbers are listed for this part.

Frequently Asked Questions

Is the K23-181-00 a left or right side brake? The Dexter K23-181-00 is a right hand (RH) electric brake assembly, designed to mount on the right side of the trailer axle only. The left hand version for the opposite side is a different part, Dexter K23-180-00.

What size backing plate does this brake use? It uses a 12 x 2 inch backing plate, sized for 7,000 lb capacity trailer axles.

What load capacity is the K23-181-00 rated for? This assembly is rated for 7,000 lb trailer axles.

How much does this brake assembly weigh? The Dexter K23-181-00 weighs 13.85 pounds.

Is this brake assembly CSA certified? Yes, the K23-181-00 carries CSA certification.

Does the K23-181-00 include a parking brake feature? No, the K23-181-00 is a standard electric brake assembly without a parking brake lever. Dexter's electric brake with park lever for a 6,000 lb axle is a separate part number, K23-113-00 for the right side.

What is included with the K23-181-00? The K23-181-00 ships as the main brake component only, meaning the electric brake backing plate and magnet assembly itself.

Is any assembly required before installing the K23-181-00? No, the Dexter K23-181-00 does not require assembly and is ready to mount to the axle flange.

What is the difference between the K23-181-00 and the hydraulic Uni-servo brake in the same size? The K23-181-00 is an electric brake assembly, while Dexter also offers a 7,000 lb hydraulic Uni-servo right hand brake, part number K23-339-00, for trailers using hydraulic rather than electric brakes.

Can I order the K23-181-00 for both sides of my trailer axle? No, the K23-181-00 is right hand specific. For the left side of a 7,000 lb electric brake axle, order Dexter part K23-180-00 instead.

Is the K23-181-00 a genuine Dexter part? Yes, K23-181-00 is a genuine Dexter Axle part number, not an aftermarket equivalent.
