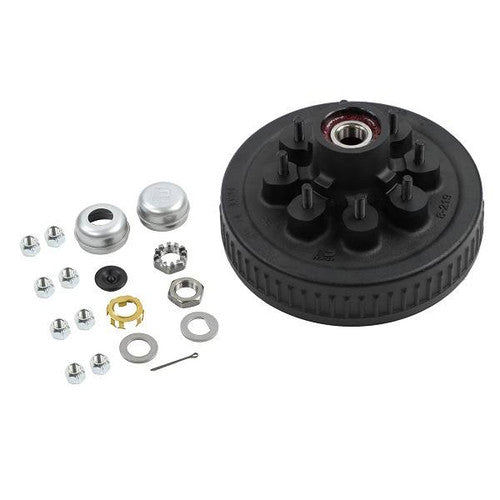

Dexter Hub-Drum Kit K08-219-1G, 7,000 lb Axle, 8 on 6.50 Bolt Circle, 1/2 inch Studs, Pre-Greased

The Dexter K08-219-1G is a complete pre-greased hub-drum kit built for 7,000 lb trailer axles with an 8 on 6.50 inch bolt circle. It is studded for 1/2 inch-20 wheel studs and is assembled and packed with Dexter grease, so it is ready to install straight from the box on trailers equipped with electric or hydraulic brakes. The kit is engineered around a 2.125 inch seal and uses a standard grease cap, matching the seal and cap sizing that Dexter specifies for this axle and bolt circle combination.

Inside the kit, the hub and drum are matched with a bearing cone (25580), cone nuts, a seal, and a grease cap, with an instruction sheet included to guide installation. Because everything is pre-assembled and pre-greased at the factory, installers do not need to hand-pack bearings or separately source a matching seal and cap, which reduces the chance of a mismatched part causing a bearing failure or grease leak down the road.

Specifications

• Brand: Dexter
• Manufacturer Part Number: K08-219-1G
• Axle Capacity: 7,000 pounds
• Bolt Circle: 8 on 6.50 inches
• Wheel Stud Size: 1/2 inch-20
• Seal Size: 2.125 inches
• Grease Cap: Standard
• Bearing Cone: 25580
• Weight: 39.6 pounds
• Material: Steel
• UPC: 876983007158
• Included Components: Bearings, Caps, Hub-drum, Lug nuts, Seal
• OEM Equivalent Part Number: K08-219-2G

Fitment

• 7,000 lb axles
• 8 on 6.50 inch bolt circle
• Studded for 1/2 inch-20 wheel studs
• 2.125 inch seal
• Standard grease cap

Replaces (OEM)

• K08-219-2G

Frequently Asked Questions

What axle does the Dexter K08-219-1G hub-drum kit fit? The K08-219-1G is built for 7,000 lb trailer axles with an 8 on 6.50 inch bolt circle.

What wheel stud size does this kit use? Dexter K08-219-1G is studded for 1/2 inch-20 wheel studs.

Does the K08-219-1G come pre-greased? Yes, the hub and drum assembly is packed with Dexter grease at the factory, so it is ready to install without separately hand-packing the bearings.

What seal size is used in this hub-drum kit? The K08-219-1G uses a 2.125 inch seal.

Is a grease cap included with the K08-219-1G? Yes, a standard grease cap is included as part of the kit.

What bearing does the K08-219-1G include? The kit includes a bearing cone (25580) as one of its components.

How much does the Dexter K08-219-1G hub-drum kit weigh? The K08-219-1G weighs 39.6 pounds.

Does the K08-219-1G work with electric or hydraulic brakes? Yes, this hub-drum kit fits 7,000 lb axles equipped with either electric or hydraulic brakes.

What is included in the K08-219-1G kit? The K08-219-1G kit includes bearings, a hub-drum, seal, cone nuts, grease cap, and an instruction sheet.

Is there a comparable Dexter part number to the K08-219-1G? K08-219-2G is listed as the OEM equivalent part number to the K08-219-1G.

What material is the hub-drum made from on the K08-219-1G? The Dexter K08-219-1G hub-drum kit is made of steel.

Does the K08-219-1G include installation instructions? Yes, an instruction sheet is included with the K08-219-1G kit to guide installation.
