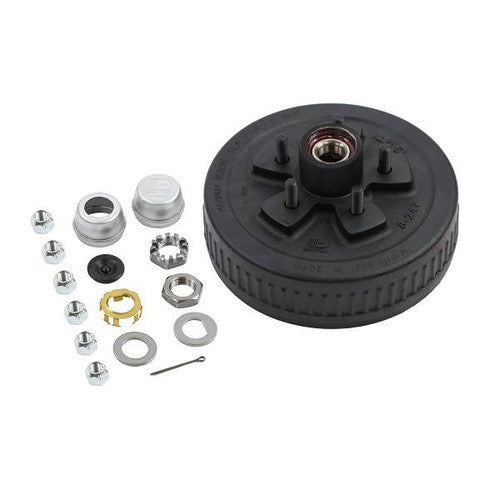

Dexter Hub-Drum Kit K08-247-1G, 3.5K Axle, 5-4.50 Bolt Circle, 1/2 Inch Studs, Pre-Greased

The Dexter K08-247-1G is a pre-greased hub-drum kit built for 3.5K trailer axles with a 5-4.50 inch bolt circle and 1/2 inch-20 studs. It arrives fully assembled with bearings and seal already installed and packed with Dexter grease, so it mounts to the spindle ready to run without a separate bearing pack-and-seal step. The kit uses a 1.718 inch seal and pairs with a 10 x 2-1/4 inch drum, and it includes a standard grease cap.

Everything needed for a complete hub-drum swap is included in the box: the hub-drum assembly, seal, inner and outer bearings, spindle attachment hardware, lug nuts, and grease cap. An instruction sheet is included to walk through installation on the trailer spindle. This makes the K08-247-1G suited to routine hub replacement, brake service that requires drum removal, or upgrading a worn or damaged hub-drum on a boat trailer axle rated for 3.5K.

Specifications

• Brand: Dexter
• Manufacturer Part Number: K08-247-1G
• Product Type: Trailer Hub-Drum Kit
• Axle Capacity: 3.5K
• Bolt Pattern: 5-4.50 inch bolt circle, studded
• Stud Size: 1/2 inch-20
• Seal Size: 1.718 inch
• Drum Size: 10 x 2-1/4 inch
• Grease Cap Type: Standard
• Weight: 22.37 pounds
• Product Dimensions: 10 x 10 x 4 inches
• UPC: 876983007080
• OEM Cross-Reference: 008-247-07
• Includes: Hub-drum, seal, bearings, spindle attachment hardware, lug nuts, and grease cap

Fitment

• 3.5K trailer axles with a 5-4.50 inch bolt circle, studded, 1/2 inch-20 studs, and 1.718 inch seal

Replaces (OEM)

• 008-247-07

Frequently Asked Questions

What axle does the Dexter K08-247-1G hub-drum kit fit? The K08-247-1G is built for 3.5K trailer axles with a 5-4.50 inch bolt circle, studded 1/2 inch-20 studs, and a 1.718 inch seal.

Are the bearings already installed and greased? Yes, the K08-247-1G ships pre-greased with the inner and outer bearings and seal already installed, so it is ready to mount to the spindle out of the box.

What size is the brake drum on this kit? The drum on the Dexter K08-247-1G measures 10 x 2-1/4 inches.

What bolt pattern does this hub use? It uses a 5-4.50 inch bolt circle with studded 1/2 inch-20 studs, matching the K08-247-1G hub-drum kit.

What is included in the box with the K08-247-1G? The kit includes the hub-drum assembly, seal, bearings, spindle attachment hardware, lug nuts, and a grease cap, along with an installation instruction sheet.

Does the K08-247-1G include a grease cap? Yes, a standard grease cap is included with the Dexter K08-247-1G hub-drum kit.

What seal size does this hub-drum kit use? The K08-247-1G uses a 1.718 inch seal.

How much does the Dexter K08-247-1G hub-drum kit weigh? The K08-247-1G weighs 22.37 pounds.

Is there an OEM cross-reference number for this hub-drum kit? Yes, the Dexter K08-247-1G cross-references to OEM part number 008-247-07.

What stud size does this hub use? The hub is studded with 1/2 inch-20 studs, part of the 5-4.50 inch bolt circle pattern on the K08-247-1G.

Is this hub-drum kit assembled or does it require building up the bearings? The K08-247-1G is fully assembled and pre-greased, so there is no need to pack bearings or set a seal separately before installation.
