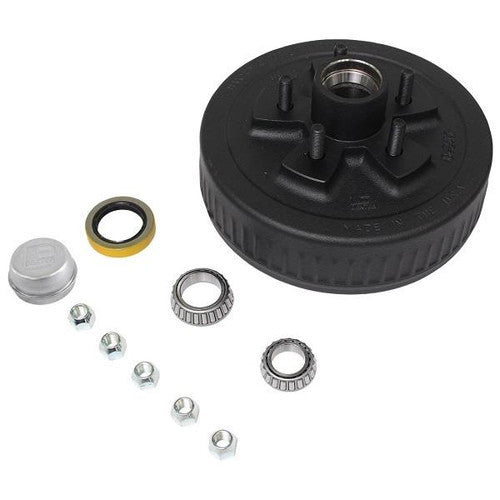

Dexter Axle Hub and Drum Kit K08-247-90 for 3.5K Axle, 5 on 4.50 Bolt Circle, 1.718 Inch Seal

The Dexter Axle Hub and Drum Kit K08-247-90 is a complete hub-drum assembly built for a 3.5K trailer axle. It is engineered for the 5 on 4.50 inch bolt circle with 1/2 inch-20 studded hubs, uses a 1.718 inch seal, and comes with a standard grease cap. This kit is designed as a full replacement unit, giving trailer owners and repair shops a single, correctly matched hub and drum assembly rather than sourcing hub and drum components separately and risking a mismatch in bolt pattern, stud size, or seal diameter.

Because trailer axle hub-drum assemblies must match the axle's stud pattern and seal bore precisely, the K08-247-90 kit is specified to the 5-4.50 bolt circle and 1.718 inch seal combination used on 3.5K rated axles. Installing a correctly matched kit helps maintain proper wheel bearing seating, brake drum concentricity, and seal integrity, which are all critical to safe towing. The kit includes a rubber plug as part of its assembly.

Specifications

• Brand: Dexter Axle
• Manufacturer Part Number: K08-247-90
• Axle Rating: 3.5K axle (3,500 lb.)
• Bolt Circle: 5 on 4.50 inch, studded
• Stud Size: 1/2 inch-20
• Seal Size: 1.718 inch
• Grease Cap: Standard grease cap
• Includes: Rubber plug
• Weight: 24 pounds
• Product Dimensions: 10 x 10 x 5 inches

Fitment

• 3.5K trailer axles with a 5 on 4.50 inch bolt circle, 1/2 inch-20 studs, and a 1.718 inch seal

Frequently Asked Questions

What axle does the Dexter Axle K08-247-90 hub and drum kit fit? The K08-247-90 kit is built for a 3.5K trailer axle with a 5 on 4.50 inch bolt circle, 1/2 inch-20 studs, and a 1.718 inch seal.

How many bolts and what pattern does this hub have? It uses a 5 on 4.50 inch bolt circle with 1/2 inch-20 studded lugs, matching common 3.5K trailer axle hubs.

What size seal does K08-247-90 use? This kit is specified with a 1.718 inch seal.

Does the kit come with a grease cap? Yes, the Dexter Axle K08-247-90 kit includes a standard grease cap.

How much does the K08-247-90 hub and drum kit weigh? The kit weighs 24 pounds.

What are the dimensions of this hub and drum kit? Product dimensions for the K08-247-90 kit are 10 x 10 x 5 inches.

Is a rubber plug included with this kit? Yes, a rubber plug is included as part of the Dexter Axle K08-247-90 assembly.

Is this a complete hub and drum assembly or do I need separate parts? K08-247-90 is sold as a complete hub-drum kit for a 3.5K axle, so the hub and drum come matched together rather than as separate components.

Will this hub kit fit a 5,200 lb or 6,000 lb axle? No, the K08-247-90 kit is specified for a 3.5K (3,500 lb.) axle with a 5 on 4.50 inch bolt circle; a heavier-rated axle uses a different hub and drum kit.

What brand is part number K08-247-90? K08-247-90 is a Dexter Axle part number.
