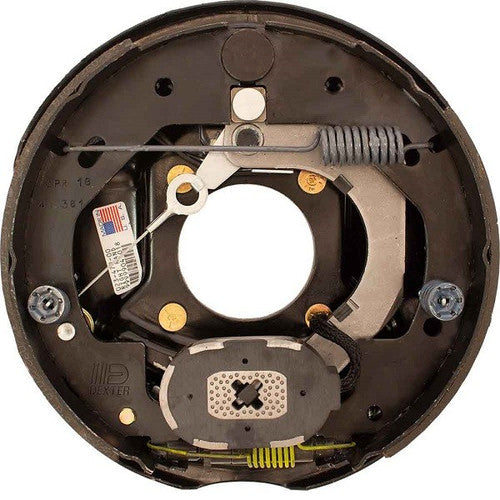

Dexter K23-479-00 RH Electric Nev-R-Adjust Trailer Brake Backing Plate, 10 x 2.25 Inch, New Style Flange

The Dexter K23-479-00 is a right hand (RH) electric brake backing plate assembly built around Dexter's Nev-R-Adjust self-adjusting brake design. It is sized for 10 inch x 2.25 inch drum brakes and is rated for axles in the 2300 to 4000 pound capacity range. The backing plate carries a new style flange, so it is intended for axles and hubs machined to accept the newer flange pattern rather than older flange configurations.

Because this is a right hand (RH) specific part, it is built and drilled to mount on the right side of the trailer axle only. It is not interchangeable with a left hand (LH) unit; the opposite side of the axle requires a separate Dexter part number. The Nev-R-Adjust electric brake system is designed to automatically compensate for shoe wear, reducing the need for manual brake adjustment over the life of the linings. This kit is sold as a replacement/service part for trailer axle brake systems and is intended for installation by someone familiar with trailer axle and brake servicing.

Specifications

• Brand: Dexter
• Manufacturer Part Number: K23-479-00
• Side: Right Hand (RH)
• Brake System: Electric, Nev-R-Adjust (self-adjusting)
• Brake Size: 10 inches x 2.25 inches
• Flange Style: New style flange
• Axle Capacity: 2300 to 4000 pounds
• Weight: 12 pounds
• UPC: 876983004775
• Category: Trailer Drum Brakes

Fitment

Fits trailer axles rated for 2300 to 4000 pounds capacity that use a new style flange and 10 inch x 2.25 inch electric drum brakes. Right hand (RH) side only.

Replaces (OEM)

No OEM cross-reference numbers are specified for this part number.

Frequently Asked Questions

Does the Dexter K23-479-00 fit the left or right side of the axle? The Dexter K23-479-00 is a right hand (RH) specific brake backing plate and mounts only on the right side of the trailer axle. It is not interchangeable with a left hand unit; the left side of the axle requires a separate Dexter part number.

What brake size is the K23-479-00 built for? This backing plate is sized for 10 inch x 2.25 inch electric drum brakes.

What is Nev-R-Adjust on this Dexter brake? Nev-R-Adjust is Dexter's self-adjusting electric brake design used on the K23-479-00, which automatically compensates for brake shoe wear so the brakes do not need to be manually adjusted as often.

What axle capacity is the K23-479-00 rated for? The Dexter K23-479-00 is rated for axles in the 2300 to 4000 pound capacity range.

Is this a new style or old style flange? The K23-479-00 uses a new style flange, so it is intended for axle and hub setups machined for the newer flange pattern rather than older style flanges.

How much does the K23-479-00 brake backing plate weigh? The Dexter K23-479-00 weighs 12 pounds.

Is the Dexter K23-479-00 a genuine Dexter part? Yes, the K23-479-00 is a genuine Dexter manufacturer part number, not a generic aftermarket equivalent.

Can I use this backing plate on both sides of my trailer axle? No. The K23-479-00 is a right hand (RH) specific part and should only be installed on the right side; using it on the left side would put the electric brake components on the wrong side of the axle.

Does the K23-479-00 use an electric or hydraulic brake system? The K23-479-00 is built for an electric brake system, using Dexter's Nev-R-Adjust self-adjusting design.

How do I identify the Dexter K23-479-00 for a replacement order? The Dexter K23-479-00 can be verified by its manufacturer part number and its UPC, 876983004775, printed on the packaging.
