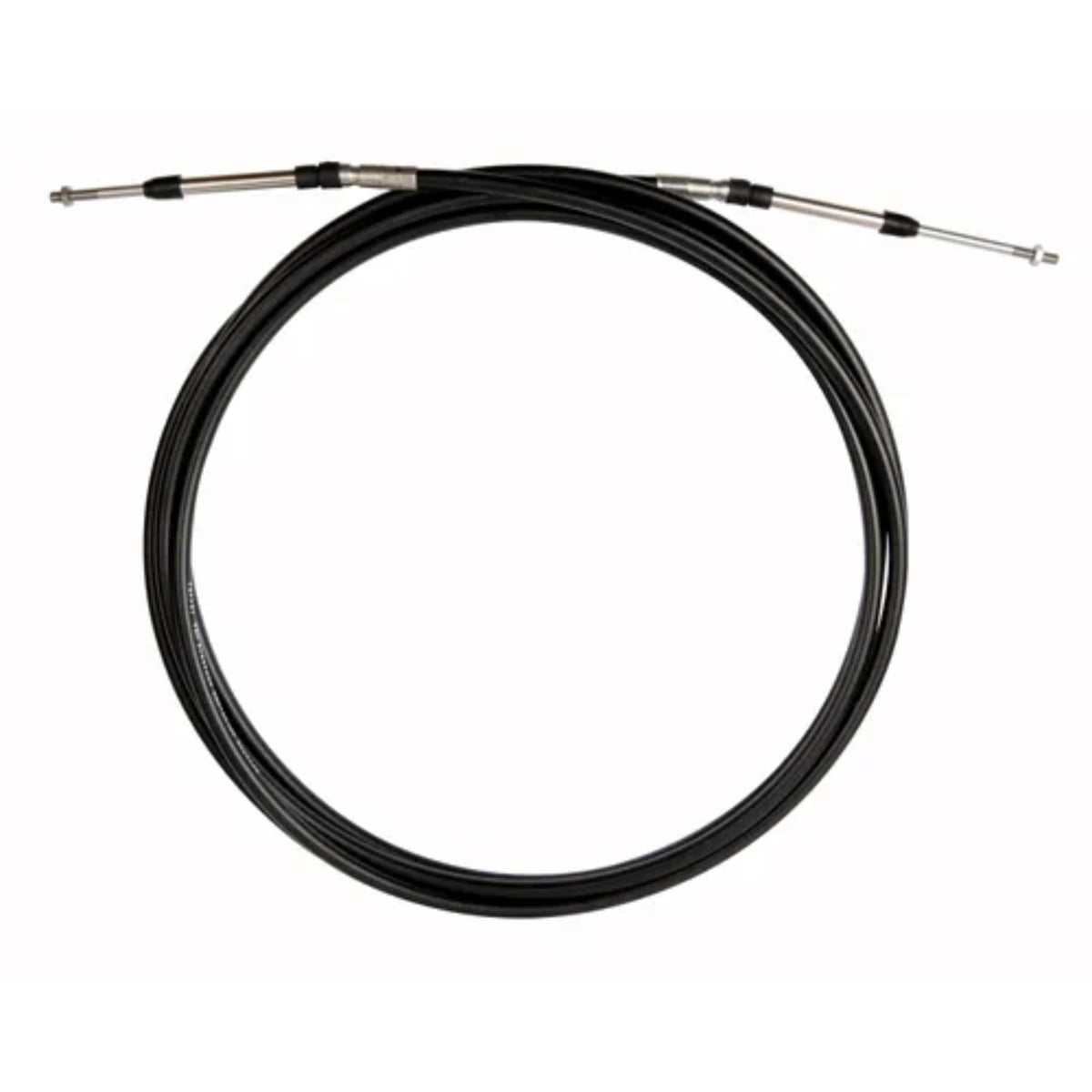

Dometic Xtreme 4300CC Control Cable Assembly CCX43312, 12 Foot, 1/4-28 Threaded Terminal

The Dometic Xtreme 4300CC Control Cable Assembly, part number CCX43312, is a 12 foot control cable built for reliable throttle and shift control on boats using the 4300 CC cable style. The cable features a black HDPE (high-density polyethylene) outer casing that resists UV exposure and chemical contact, helping it hold up in the marine environment over repeated use. Each end of the cable is fitted with a 1/4-28 threaded terminal and a clamp-type fitting, giving installers a secure, adjustable connection point at both the helm and the engine or drive unit. The cable is engineered with 3 inches of nominal travel and a 5 inch minimum bend radius, so it can be routed through tighter turns in the boat's control run without kinking or binding the mechanism. Dometic states that this cable meets or exceeds applicable industry standards for marine control cables. This assembly is intended as a direct replacement or new installation for control systems that use the 4300 CC cable type, and the CCX43312 designation identifies it specifically as the 12 foot length within the CCX433XX 4300 CC cable lineup.

Specifications

• Brand: Dometic
• Manufacturer Part Number: CCX43312
• Cable Type: 4300 CC cable
• Cable Length: 12 feet
• Nominal Travel: 3 inches
• Minimum Bend Radius: 5 inches
• Terminal Thread: 1/4-28 threaded terminal
• End Fittings: Threaded terminal and clamp-type fitting at each end
• Outer Casing Material: Black HDPE
• UV and Chemical Resistance: Yes
• Weight: 2.6 pounds
• UPC: 808282274177

Frequently Asked Questions

What is the Dometic CCX43312 control cable used for? CCX43312 is a 12 foot Dometic Xtreme 4300CC control cable assembly used to connect the helm control to the throttle or shift mechanism on a boat.

How long is the CCX43312 cable? The CCX43312 is 12 feet long, making it the 12 foot length option within the Dometic Xtreme 4300CC (CCX433XX) cable series.

What type of end fittings does this cable have? Each end of the CCX43312 has a 1/4-28 threaded terminal along with a clamp-type fitting, allowing a secure connection at both the control head and the engine or drive end.

How much travel does the 4300CC cable provide? 3 inches of nominal travel is built into the Dometic Xtreme 4300CC cable, including the CCX43312 12 foot version.

What is the minimum bend radius for routing this cable? 5 inches is the minimum bend radius for the CCX43312 4300CC cable, which determines how tightly it can be curved when routed through the boat.

What material is the outer casing made of? Black HDPE (high-density polyethylene) forms the outer casing of the CCX43312, chosen for its resistance to UV exposure and chemical contact in marine use.

Does the CCX43312 meet industry standards? Yes, Dometic states that this control cable meets or exceeds applicable industry standards for marine control cable assemblies.

How much does the CCX43312 cable weigh? The CCX43312 weighs 2.6 pounds.

Is the CCX43312 a complete cable assembly ready to install? Yes, CCX43312 is a complete control cable assembly with threaded terminal and clamp-type fittings pre-installed at both ends, ready to be mounted into the control run.

What distinguishes the 4300CC cable from other Dometic control cable types? The 4300 CC cable (CCX433XX series, which includes the CCX43312) uses a 1/4-28 threaded terminal with a clamp-type fitting at each end and a 5 inch minimum bend radius, differing in terminal size and fitting style from other Dometic control cable types.
