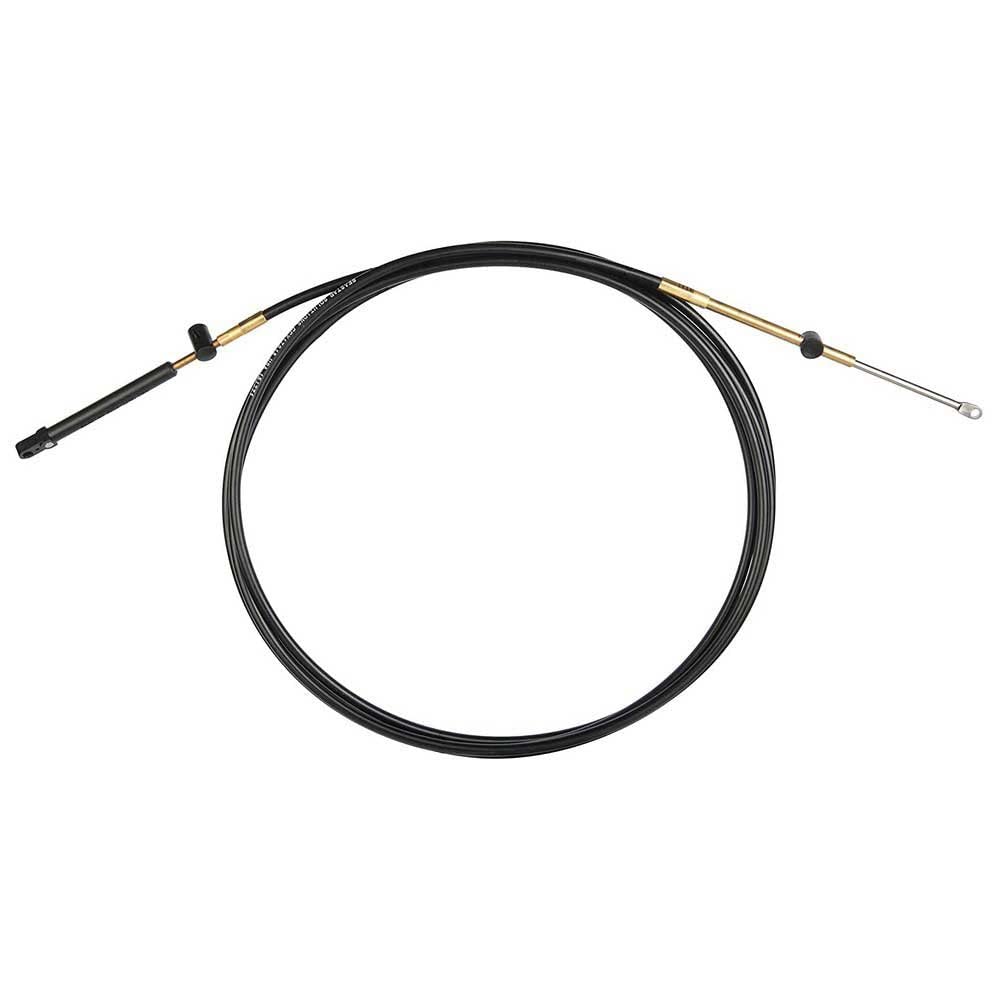

SeaStar CCX17924 XTREME Control Cable, 24 Feet, Mercury 600A Style for Mercury/MerCruiser/Mariner/Force

The SeaStar CCX17924 is a 24 foot XTREME series control cable engineered as a drop-in replacement for the Mercury 600A style control cable, using the existing connection components on the engine and control head. It is built for Mariner, Mercury, and MerCruiser engines (1965-date) with Mercury controls, for Force engines (1993-date) with Mercury controls, for all Mariner engines with Mercury/Mariner controls (except pre-1993, 40 HP and lower models), and for SeaStar Solutions Osprey and SL-3 Series Controls connecting to Mercury, MerCruiser, Mariner, and most Force engines.

The cable uses SeaStar's patented XTREME Splined, Coated Core Element, which lets ridges on the core sit close against the cable's inner liner for smooth movement with minimal lost motion. This gives the CCX17924 a 4 inch minimum bend radius, compared to an 8 inch minimum bend radius on standard control cables, making it well suited to complex or long cable runs, tight engine bays, and performance or bass boat installations. The cable is protected by a 0.34 inch Super Tough HDPE jacket that resists abrasion, UV exposure, salt water, chemicals, gasoline, and oil, and it uses 0.033 inch oil tempered lay wires for strength and performance. Stainless steel terminals and brass fittings add corrosion protection, and the HDPE liner is lubricated for life at the factory. The cable is made in the U.S.A. And is backed by a two year recreational user warranty against manufacturing defects.

Specifications

• Brand: SeaStar
• Manufacturer Part Number: CCX17924
• Length: 24 feet
• Cable Family: CCX179XX (XTREME series)
• Replacement Style: Mercury 600A style control cable
• Minimum Bend Radius: 4 inches
• Jacket: 0.34 inch Super Tough HDPE
• Lay Wires: 0.033 inch oil tempered
• Core: XTREME splined, coated core element
• Terminals: Stainless steel
• Fittings: Brass
• Liner: HDPE, lubricated for life
• Core Wires: Stainless or nylon covered with moisture protective seals
• Weight: 3.35 pounds
• Country of Origin: Made in the U.S.A.
• Warranty: Two year recreational user warranty against manufacturing defects
• UPC: 808282272319

Fitment

• Mariner, Mercury, and MerCruiser engines (1965-date) with Mercury controls
• Force engines (1993-date) with Force/US Marine/Mercury controls
• All Mariner engines with Mercury/Mariner controls, except pre-1993, 40 HP and lower models
• SeaStar Solutions Osprey and SL-3 Series Controls to Mercury, MerCruiser, Mariner, and most Force engines

Frequently Asked Questions

What does the CCX17924 fit? The SeaStar CCX17924 fits Mariner, Mercury, and MerCruiser engines (1965-date) with Mercury controls, Force engines (1993-date) with Force/US Marine/Mercury controls, and all Mariner engines with Mercury/Mariner controls except pre-1993, 40 HP and lower models.

How long is this control cable? The CCX17924 is 24 feet long, part of SeaStar's CCX179XX XTREME control cable family.

Is the CCX17924 a direct replacement for my Mercury cable? Yes, the CCX17924 is engineered as a drop-in replacement for the Mercury 600A style control cable and uses the existing connection components already on the boat, so no new hardware is required.

What makes the XTREME cable different from a standard control cable? The CCX17924's XTREME construction gives it a 4 inch minimum bend radius, versus an 8 inch minimum bend radius on standard control cables, which makes it a better fit for complex or long cable runs and tight engine bay routing.

What is the cable jacket made of? The CCX17924 uses a 0.34 inch Super Tough HDPE jacket that resists abrasion and withstands UV exposure, salt water, chemicals, gasoline, and oil.

Does the CCX17924 work with SeaStar Osprey or SL-3 controls? Yes, the CCX17924 is compatible with SeaStar Solutions Osprey and SL-3 Series Controls when connecting to Mercury, MerCruiser, Mariner, and most Force engines.

How much does the CCX17924 control cable weigh? The CCX17924 weighs 3.35 pounds.

Does the CCX17924 need to be lubricated before installation? No, the CCX17924's HDPE liner is lubricated for life at the factory, so no additional lubrication is needed before installation.

What is the CCX17924 core made of? The CCX17924 uses an XTREME splined, coated core element paired with 0.033 inch oil tempered lay wires, plus stainless steel terminals and brass fittings for corrosion protection.

Is the CCX17924 covered by a warranty? The CCX17924 is backed by a two year recreational user warranty against manufacturing defects.

Will the CCX17924 fit a Force outboard? Yes, the CCX17924 fits Force engines (1993-date) that use Force/US Marine/Mercury controls.

Where is the CCX17924 manufactured? The SeaStar CCX17924 control cable is made in the U.S.A.
