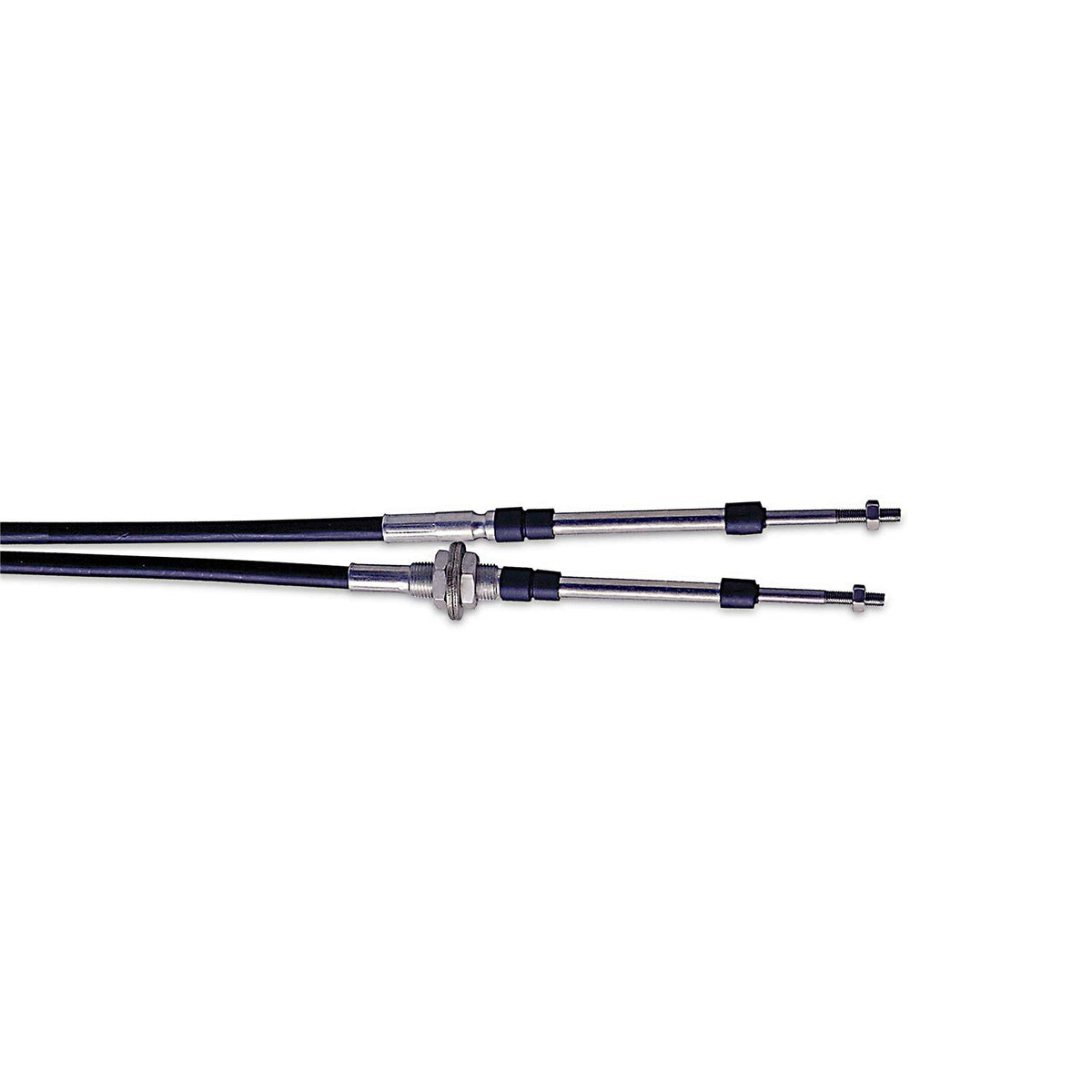

Dometic CCX43018 Xtreme 4300BC Control Cable Assembly, 18 Feet, Stainless Steel Conduit

The Dometic CCX43018 is an Xtreme 4300BC control cable assembly built for boat throttle and shift control applications. This 4300 BC cable uses a stainless steel conduit for corrosion resistance and a black HDPE outer casing that resists UV exposure and chemical contact, keeping the cable performing reliably in a marine environment. The assembly measures 18 feet in length and terminates in a 1/4-28 threaded terminal at each end, with one bulkhead fitting and one clamp fitting included so it can be mounted through a bulkhead at one connection point and clamped at the other. The cable provides 3 inches of nominal travel and can be routed through bends down to a 5 inch minimum bend radius, giving installers flexibility when running the cable through tight engine bay or console spaces. Because it is a 4300/43 type cable with 1/4-28 ends, the CCX43018 is built to meet or exceed applicable industry standards for marine control cables. It is a direct fit for control head and engine control applications calling for a genuine Xtreme 4300BC cable of this length and fitting configuration.

Specifications

• Brand: Dometic
• Manufacturer Part Number: CCX43018
• Product Line: Xtreme 4300BC (4300 BC cable, CCX430XX series)
• Cable Length: 18 feet
• End Fittings: 1/4-28 threaded terminal at each end
• Fitting Configuration: One bulkhead fitting and one clamp fitting
• Nominal Travel: 3 inches
• Minimum Bend Radius: 5 inches
• Conduit Material: Stainless steel
• Outer Casing: Black HDPE
• Weight: 1 pound
• UPC: 808282273842

Frequently Asked Questions

How long is the Dometic CCX43018 control cable? The CCX43018 is 18 feet long, part of the Dometic Xtreme 4300BC control cable line.

What size are the end fittings on the CCX43018? Each end of the CCX43018 terminates in a 1/4-28 threaded terminal, matching the 4300/43 type cable standard.

What fittings come with this cable assembly? The CCX43018 includes one bulkhead fitting and one clamp fitting, one at each end of the cable.

How much nominal travel does the CCX43018 provide? 3 inches of nominal travel is provided by the CCX43018 control cable.

What is the minimum bend radius for this cable? 5 inches is the minimum bend radius for the Dometic CCX43018, allowing it to be routed through tighter turns during installation.

What is the conduit made of on the Xtreme 4300BC cable? Stainless steel conduit is used on the CCX43018 and other 4300/43 type Xtreme cables for corrosion resistance.

Does the CCX43018 have a protective outer casing? Yes, the CCX43018 has a black HDPE outer casing that resists UV exposure and chemical contact.

What is the difference between the CCX43018 (BC) cable and a CC cable? The CCX43018 is a BC (bulkhead/clamp) cable with one bulkhead fitting and one clamp fitting, while the 4300 CC cable line (CCX433XX) uses a clamp-type fitting at both ends instead.

How much does the CCX43018 weigh? The Dometic CCX43018 control cable assembly weighs 1 pound.

Is the CCX43018 a genuine Dometic part? Yes, the CCX43018 is a genuine Dometic Xtreme 4300BC control cable assembly, not an aftermarket equivalent.

What industry standards does the CCX43018 meet? The CCX43018 is built to meet or exceed applicable industry standards for marine control cables, as part of the Dometic Xtreme 4300 series.

What is the UPC for the Dometic CCX43018? The UPC for the Dometic CCX43018 control cable is 808282273842.
