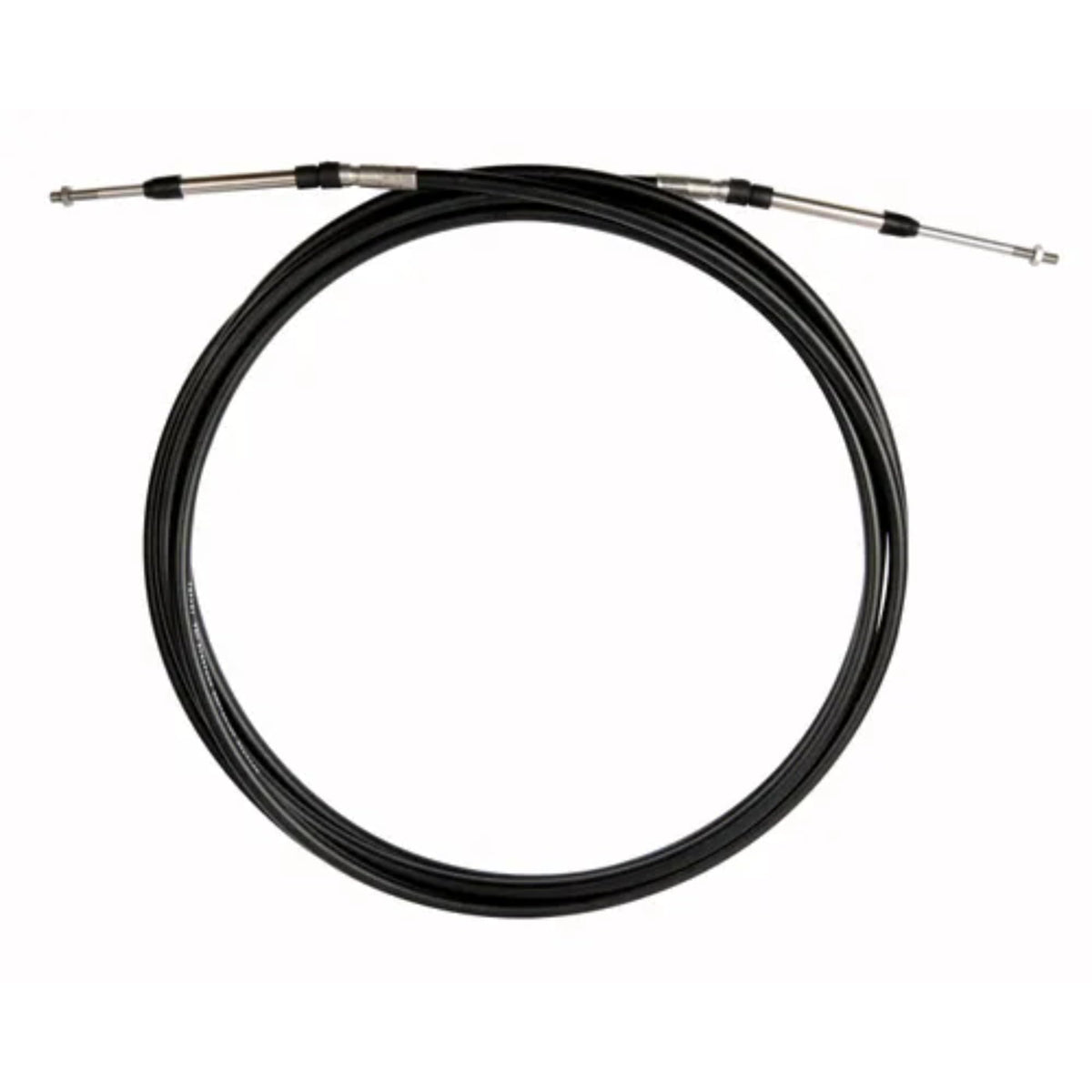

SeaStar 4300 CC Control Cable Assembly 14 ft, 1/4-28 Threaded Terminal, CCX43314
SeaStar 4300 CC Control Cable Assembly 14 ft, 1/4-28 Threaded Terminal, CCX43314
The SeaStar CCX43314 is a 4300 CC series control cable assembly built for boat engine and steering control systems that use 1/4-28 threaded terminal connections. This 14 foot cable is engineered as a direct-fit replacement or new installation cable for control head to engine (or steering) linkage runs, providing precise, low-friction motion transfer over its length.
The cable features a 1/4-28 threaded terminal and a clamp-type fitting at each end, giving installers a secure, adjustable connection point on both the control head side and the engine or actuator side. It delivers 3 inches of nominal travel and is rated for a 5 inch minimum bend radius, so it can be routed through tight engine bay or console runs without kinking or binding the internal core.
Durability is built into the outer casing: a black HDPE (high-density polyethylene) jacket resists UV exposure and chemical contact, both common failure points for control cables used in marine and outdoor environments. The cable is manufactured to meet or exceed applicable industry standards for marine control cables.
At 14 feet, the CCX43314 is sized for longer runs between the helm and the engine compartment. It weighs 2.78 pounds as shipped.
Specifications
- Brand: SeaStar
- Manufacturer Part Number: CCX43314
- Cable Series: 4300 CC
- Length: 14 feet
- Terminal Type: 1/4-28 threaded terminal and clamp-type fitting at each end
- Nominal Travel: 3 inches
- Minimum Bend Radius: 5 inches
- Outer Casing Material: Black HDPE
- Weight: 2.78 pounds
- Product Dimensions (packaged): 17 x 17 x 1.25 inches
Fitment
Fits control systems designed to accept 4300 CC series cables with 1/4-28 threaded terminal ends.
Replaces (OEM)
No OEM cross-reference numbers are specified for this part.
Frequently Asked Questions
What length is the CCX43314 control cable? The CCX43314 is a 14 foot cable in the 4300 CC series, sized for longer helm-to-engine control runs.
What kind of terminal ends does this cable have? Each end of the CCX43314 has a 1/4-28 threaded terminal along with a clamp-type fitting, giving a secure adjustable connection at both the control head and engine or actuator side.
How much travel does the CCX43314 provide? 3 inches of nominal travel is built into this 4300 CC series cable.
What is the minimum bend radius for routing this cable? 5 inches is the minimum bend radius for the CCX43314, so it should not be routed through tighter curves than that to avoid binding the internal core.
What is the outer casing made of? A black HDPE (high-density polyethylene) jacket forms the outer casing of the CCX43314, chosen for its resistance to UV exposure and chemical contact.
How much does the CCX43314 weigh? 2.78 pounds is the weight of the SeaStar CCX43314 control cable assembly.
Does this cable meet marine industry standards? Yes, the CCX43314 is manufactured to meet or exceed applicable industry standards for marine control cables.
What control systems is the CCX43314 compatible with? This cable is built for control systems that accept 4300 CC series cables with 1/4-28 threaded terminal connections.
What is the difference between the 4300 CC series and the 6400 series cables? The 4300 CC series, which includes the CCX43314, uses 1/4-28 threaded terminal ends with 3 inches of nominal travel and a 5 inch minimum bend radius. The 6400 series cables instead use 5/16-24 threaded terminal ends with 4 inches of nominal travel and an 8 inch minimum bend radius.
What are the package dimensions of the CCX43314? The CCX43314 ships in packaging measuring 17 x 17 x 1.25 inches.
Are there OEM cross-reference numbers for the CCX43314? No OEM cross-reference or replacement part numbers are specified for the CCX43314 control cable assembly.
