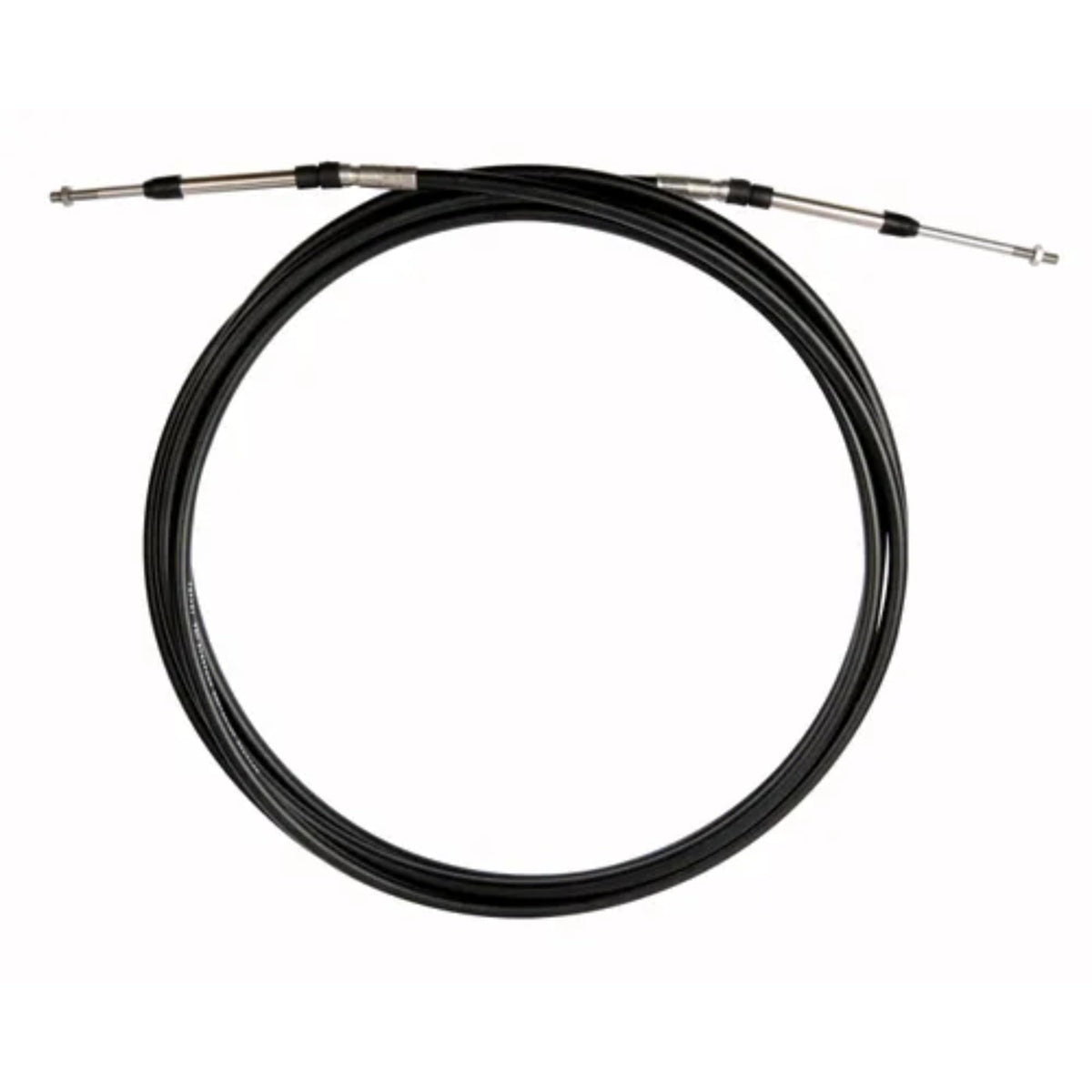

SeaStar Xtreme 4300 CC Control Cable, 17 Feet, CCX43317 - Evinrude Outboard Compatible

The SeaStar Xtreme 4300 CC Control Cable, CCX43317, is a 17 foot control cable built for outboard engine throttle and shift control applications, including Evinrude outboard control systems. Part of the SeaStar 4300 CC (CCX433XX) cable series, it terminates with a 1/4-28 threaded terminal and a clamp-type fitting at each end, giving installers a secure, positive connection point for both the engine and the helm control. The cable delivers 3 inches of nominal travel and can be routed through a minimum bend radius of 5 inches, allowing it to be worked around tight engine compartment and console layouts without kinking or binding.

Durability comes from a black HDPE outer casing, chosen for its resistance to UV exposure and marine chemicals, so the cable holds up to sun, salt spray, and fuel or oil contact over long-term outboard use. The cable is built to meet or exceed applicable industry standards for marine control cables. At 17 feet, CCX43317 is sized for boats where the control cable run between the helm and the outboard engine requires this specific length; installers should confirm their existing run length before ordering, since SeaStar 4300 CC cables are offered in multiple length options under the CCX433XX part family.

Specifications

• Brand: SeaStar
• Manufacturer Part Number: CCX43317
• Cable Series: 4300 CC (Xtreme)
• Cable Length: 17 feet
• Nominal Travel: 3 inches
• Minimum Bend Radius: 5 inches
• Terminal Thread: 1/4-28
• End Fittings: Threaded terminal and clamp-type fitting at each end
• Outer Casing Material: Black HDPE
• UV and Chemical Resistance: Yes
• Weight: 3.24 pounds
• Recommended Use: Evinrude outboard control applications

Fitment

Designed for use with control systems that accept 4300 CC (CCX433XX) series control cables, including Evinrude outboard control applications.

Frequently Asked Questions

What is the SeaStar CCX43317 control cable used for? CCX43317 is a 4300 CC series control cable used to connect throttle and shift controls to an outboard engine, and it is commonly used in Evinrude outboard control applications.

How long is the CCX43317 control cable? This cable measures 17 feet, as indicated by its part number, and is part of the SeaStar 4300 CC (CCX433XX) cable family offered in multiple lengths.

What size threaded terminal does this cable have? CCX43317 has a 1/4-28 threaded terminal along with a clamp-type fitting at each end of the cable.

How much travel does the 4300 CC cable provide? The 4300 CC series, including CCX43317, provides 3 inches of nominal travel.

What is the minimum bend radius for CCX43317? The minimum bend radius for this 4300 CC cable is 5 inches, which should be maintained during routing and installation to avoid kinking.

What material is the outer casing made of? CCX43317 has a black HDPE outer casing, selected for durability and resistance to UV exposure and chemical contact.

Is this control cable weather and chemical resistant? Yes, the black HDPE outer casing on the CCX43317 cable resists UV degradation and chemical exposure, making it suitable for marine environments.

Does this cable meet marine industry standards? SeaStar 4300 CC cables, including CCX43317, are built to meet or exceed applicable industry standards for control cables.

What is the difference between the 4300 CC and 6400 BC/CC cable series? The 4300 CC series (which includes CCX43317) uses a 1/4-28 threaded terminal with 3 inches of nominal travel and a 5 inch minimum bend radius, while the 6400 series uses 5/16-24 threaded ends with 4 inches of nominal travel and an 8 inch minimum bend radius.

Will CCX43317 fit any boat control system? CCX43317 is designed for control systems that accept 4300 CC (CCX433XX) series control cables, including Evinrude outboard control applications; buyers should confirm their control head accepts this cable type before ordering.

What fittings are included with the CCX43317 cable? The cable comes complete with a 1/4-28 threaded terminal and a clamp-type fitting at each end, ready for connection to the engine and control head.

How much does the CCX43317 control cable weigh? The SeaStar CCX43317 control cable weighs 3.24 pounds.
