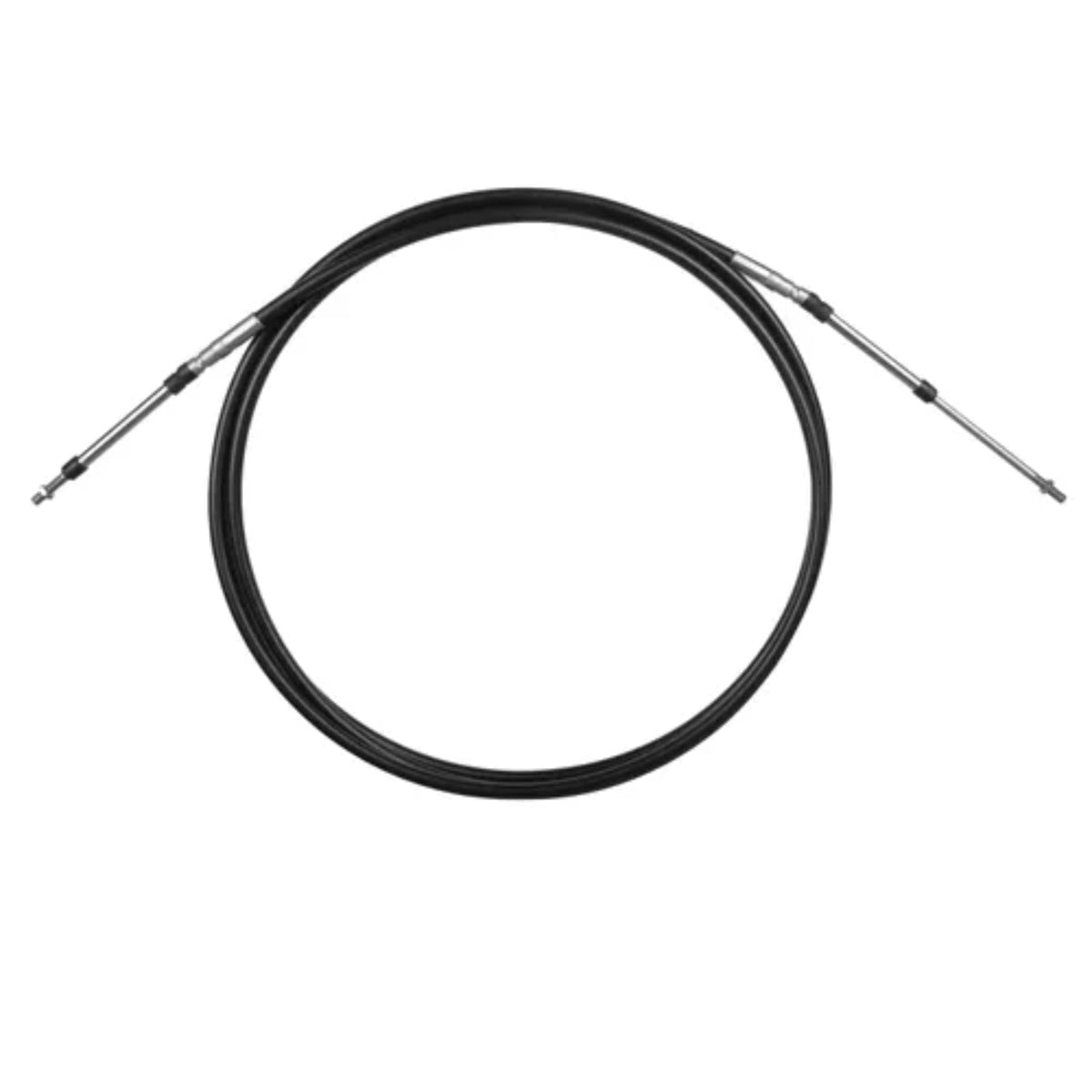

Dometic Xtreme 6400CC Control Cable Assembly, 10 Foot, CCX64310

The Dometic Xtreme 6400CC Control Cable Assembly (CCX64310) is a 10 foot control cable built for marine engine control systems, transmitting throttle and shift movement between the helm control and the engine. Each end of the cable terminates in a 5/16-24 threaded terminal paired with a clamp-type fitting, and the cable assembly includes one bulkhead fitting and one clamp fitting for mounting through the transom or control station. The cable delivers 4 inch nominal travel and has an 8 inch minimum bend radius, so it can be routed through moderate curves in the helm-to-engine run without binding or excess friction.

This cable is part of the 6400/64 Series line. 64 Series cables are not interchangeable with 63 Series cables, so when ordering a replacement or a matching cable for a dual-cable installation, confirm the series designation on the existing cable before purchasing. The CCX64310 is supplied as a complete assembly ready to connect at both the control end and the engine end.

Specifications

• Brand: Dometic
• Manufacturer Part Number: CCX64310
• Series: 6400 CC (Xtreme 64 Series)
• Length: 10 feet
• Nominal Travel: 4 inches
• Minimum Bend Radius: 8 inches
• Terminal Thread: 5/16-24 at each end
• Fitting Type: Clamp-type fitting at each end
• End Fittings: One bulkhead fitting and one clamp fitting
• Weight: 4.32 pounds
• UPC: 808282275761

Fitment

The CCX64310 belongs to the 6400/64 Series control cable line. It is not interchangeable with 63 Series cables; confirm the series marking on your existing control cable before ordering a replacement.

Frequently Asked Questions

What is the length of the CCX64310 control cable? The Dometic CCX64310 is a 10 foot control cable assembly, part of the Xtreme 6400CC line.

How much nominal travel does this cable provide? 4 inches of nominal travel, which is the standard travel for the 6400/64 Series control cable design used in the CCX64310.

What is the minimum bend radius for the CCX64310? 8 inches is the minimum bend radius, so the cable should not be routed through curves tighter than that during installation.

What thread size are the terminals on this cable? Each end of the CCX64310 has a 5/16-24 threaded terminal.

What type of fittings come with the CCX64310? The assembly includes one bulkhead fitting and one clamp fitting, with a clamp-type fitting present at each end of the cable.

Can a 63 Series control cable be used in place of the CCX64310? No. The CCX64310 is a 64 Series cable, and 64 Series cables cannot be replaced by 63 Series cables.

How much does the CCX64310 weigh? The Dometic CCX64310 control cable assembly weighs 4.32 pounds.

What series does the CCX64310 belong to? It is part of the 6400 CC line, also referred to as the Xtreme 64 Series.

Is the CCX64310 a complete cable assembly? Yes, the CCX64310 is supplied as a complete control cable assembly with terminals and fittings installed at both the control end and the engine end, ready for installation.

What is the UPC for the Dometic CCX64310? The UPC for the Dometic Xtreme 6400CC control cable assembly CCX64310 is 808282275761.
