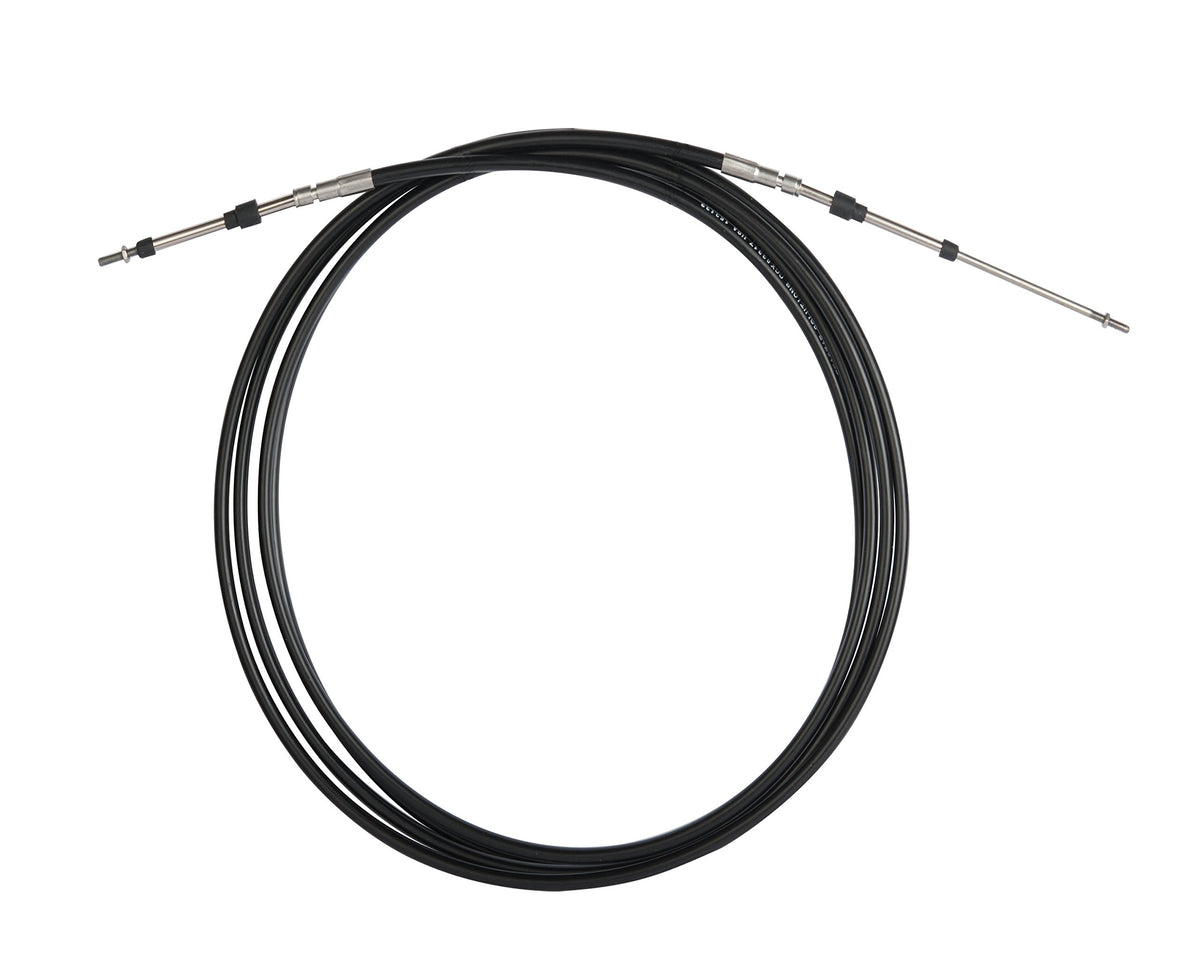

SeaStar Xtreme Control Cable CCX63330, 30 Feet, 3300/33C Universal 10-32 Threaded

The SeaStar Xtreme Control Cable CCX63330 is a 30-foot 3300/33C universal control cable built for dual function mechanical engine and throttle/shift controls. It uses a 10-32 threaded terminal with a clamp-type fitting at each end so it works with the existing connection components on SeaStar controls and other controls that accept universal type 10-32 threaded cable ends. SeaStar Solutions recommends this 33C cable (part number CCX633XX series) for use with its DS dual station throttle unit, allowing dual function mechanical controls and side mount controls to be used in a dual station boat with a single station selector.

This cable is built with SeaStar's patented Xtreme splined core, where ridges on the core create a close fit with the cable's inner liner for easy movement with minimum lost motion. It has a 4 inch minimum bend radius, versus an 8 inch minimum bend radius for standard control cables, making it well suited to complex or long cable runs and to foot throttle applications on performance and bass boats. The cable jacket is 0.34 inch super tough HDPE that resists abrasion and withstands UV, salt water, chemicals, gasoline, and oil, and the 12-wire copper core uses 0.033 inch oil tempered lay wires for strength and performance. Terminals and conduit fittings are stainless steel for corrosion resistance, and the cable is lubricated for life at the factory. It is made in the U.S.A. And backed by a two-year recreational user warranty against manufacturing defects.

Specifications

• Brand: SeaStar
• Manufacturer Part Number: CCX63330
• Cable Length: 30 feet
• Cable Type: 3300/33C Universal
• Terminal Thread: 10-32
• Fitting Type: Clamp-type
• Minimum Bend Radius: 4 inches
• Jacket Material: HDPE, 0.34 inch thickness
• Lay Wire Diameter: 0.033 inch
• Core Type: Xtreme splined, coated core
• Terminal Material: Stainless steel
• Number of Wires: 12
• Wire Material: Copper
• Color: Black
• Weight: 3.79 pounds
• Country of Origin: Made in U.S.A.
• Warranty: Two-year recreational user limited warranty
• UPC: 808282271718

Fitment

Fits SeaStar Solutions controls and other controls that accept universal type 10-32 threaded cable ends, including SeaStar's DS dual station throttle unit setups. This is a pull-only cable for the DS throttle unit; a push throttle application requires the outboard DS throttle unit instead.

Frequently Asked Questions

How long is the CCX63330 control cable? The CCX63330 is 30 feet long, part of SeaStar's 3300/33C universal control cable line.

What thread and fitting does this cable use? CCX63330 has a 10-32 threaded terminal with a clamp-type fitting at each end, so it uses the existing connection components on SeaStar controls and other controls built for universal 10-32 threaded cable ends.

Is this a push or pull cable for a DS dual station throttle unit? For SeaStar's DS dual station throttle unit, the CCX63330 is set up as a pull-only cable; a push throttle application requires the outboard DS throttle unit instead.

What is the minimum bend radius on this cable? CCX63330 has a 4 inch minimum bend radius, compared to an 8 inch minimum bend radius on standard control cables, which helps it handle tighter, more complex cable runs.

What is the cable jacket made of? The outer jacket on the CCX63330 is 0.34 inch super tough HDPE, which resists abrasion and stands up to UV, salt water, chemicals, gasoline, and oil.

How many wires does the CCX63330 cable have? This control cable has 12 copper wires with 0.033 inch oil tempered lay wires for strength and performance.

Can this cable be used for dual station boat setups? Yes, CCX63330 is the recommended 33C cable for use with SeaStar's DS unit, allowing dual function mechanical controls and side mount controls to be used in a dual station boat with just one station selector.

Does the CCX63330 cable need to be lubricated before installation? No, it is lubricated for life at the factory, so no additional lubrication is needed at install.

What color is the CCX63330 control cable? It is black.

How much does the CCX63330 control cable weigh? The CCX63330 weighs 3.79 pounds.

What terminal material is used on this cable? CCX63330 uses stainless steel terminals and conduit fittings for added corrosion protection.

Is the CCX63330 cable made in the USA? Yes, this SeaStar control cable is made in the U.S.A. And is backed by a two-year recreational user warranty against manufacturing defects.
