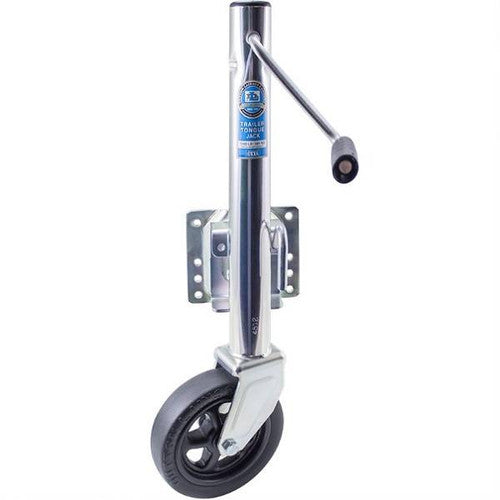

Dutton-Lainson 22800 Swivel Trailer Jack, 1500 lb Capacity, 8 Inch Wheel

The Dutton-Lainson 22800 is a swivel trailer jack built for boat trailers and other trailering applications. Unlike a fixed drop-leg jack, this model swivels up and locks into place, so it stows out of the way for towing and drops back down for level, stable support when the trailer is parked. It carries a 1500 pound capacity and fits square tongues up to 3 inches by 5 inches, with a 2-1/2 inch diameter mounting hole for bolt-on installation. All necessary mounting hardware is included, so no extra parts are needed to get it installed.

The jack rolls on an 8 inch diameter wheel made from heavy duty polypropylene, chosen to resist cracking in cold weather, and total travel is 10 inches with a maximum tongue height of 24-3/4 inches. The side wind handle has an ergonomic, cushioned grip paired with an extra heavy screw drive to make raising and lowering the trailer easier. The locking mechanism that holds the jack in its swivel position uses a spring loaded design, and drainage holes are built into the body to help shed water in wet marine environments. The frame is constructed from heavy gauge steel and finished with a zinc plated TuffPlate coating for long-term corrosion resistance. This trailer jack is made in the USA.

Specifications

• Brand: Dutton-Lainson
• Manufacturer Part Number: 22800
• Product Type: Swivel Trailer Jack
• Load Capacity: 1500 pounds
• Wheel Diameter: 8 inches
• Wheel Material: Polypropylene
• Total Travel: 10 inches
• Maximum Tongue Height: 24-3/4 inches
• Mounting Hole Diameter: 2-1/2 inches
• Fits Tongue Size: Up to 3 inches x 5 inches square
• Finish: Zinc Plated TuffPlate
• Material: Heavy Gauge Steel
• Color: Silver
• Weight: 20.65 pounds
• Product Dimensions: 10.4 x 26.9 x 6.1 inches
• Country of Origin: Made in USA
• Mounting Hardware: Included

Frequently Asked Questions

What is the load capacity of the Dutton-Lainson 22800 trailer jack? The Dutton-Lainson 22800 swivel trailer jack has a 1500 pound capacity.

Does this jack swivel out of the way for towing? Yes, the 22800 swivels up and locks in place with a spring loaded locking mechanism, so it clears the road while towing and drops back down for support when parked.

What size trailer tongue does the 22800 fit? It fits square tongues up to 3 inches by 5 inches, with a 2-1/2 inch diameter mounting hole for bolt-on installation.

How much travel does the jack have? Total travel on the Dutton-Lainson 22800 is 10 inches, with a maximum tongue height of 24-3/4 inches.

What size is the wheel on this trailer jack? An 8 inch diameter wheel made from heavy duty polypropylene is fitted to the 22800, chosen to resist cracking in cold weather.

Is mounting hardware included with the 22800? Yes, all necessary bolt-on mounting hardware ships with the Dutton-Lainson 22800 swivel trailer jack.

What is the trailer jack made of and how is it finished? The 22800 is built from heavy gauge steel and finished with a zinc plated TuffPlate coating for corrosion resistance in marine environments.

How much does the Dutton-Lainson 22800 weigh? The 22800 weighs 20.65 pounds.

Is this jack made in the USA? Yes, the Dutton-Lainson 22800 swivel trailer jack is made in the USA.

Why does the jack have drainage holes? Drainage holes are built into the body of the 22800 to help shed water, which is useful for boat trailers that see frequent exposure to water.

What handle does the 22800 use to raise and lower the trailer? It uses a side wind handle with a cushioned, ergonomic grip and an extra heavy screw drive to make lifting easier.
