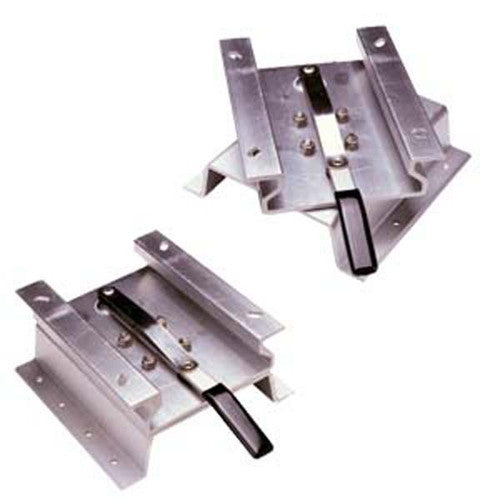

Garelick 8 Position Locking Boat Seat Swivel 75096, Anodized Aluminum with Stainless Hardware

The Garelick 75096 is an 8 position locking seat swivel built for boat helm and passenger seats that need solid, repeatable positioning without wobble. The swivel locks at 45 degree increments, giving the seat 8 distinct locked positions, or it can be left free swiveling for full rotation. A convenient locking handle lets the operator secure the seat firmly at any of those positions with a simple motion, and the wobble-free design keeps the seat solid once locked rather than shifting under way.

Construction is anodized aluminum with stainless steel hardware, chosen for corrosion resistance in the marine environment. The unit is compatible with most 360 degree spiders, though the spider swivel casting itself is sold separately and is not included with this swivel. This is the 6 inch travel standard size intended for wooden or plastic seats, measuring 8 inches wide by 7 inches long with an overall height of 3 3/4 inches. It mounts between the seat base and the pedestal or seat mount to provide fore-and-aft style locking rotation for helm chairs, fishing seats, and similar boat seating.

Specifications

• Brand: Garelick
• Manufacturer Part Number: 75096
• Product Type: 8 Position Locking Seat Swivel
• Locking Positions: 8 positions, locks every 45 degrees
• Width: 8 inches (20 cm)
• Length: 7 inches (18 cm)
• Overall Height: 3 3/4 inches (9 cm)
• Travel: 6 inches, standard size for wooden/plastic seats
• Material: Anodized aluminum with stainless steel hardware
• Weight: 4.4 pounds
• UPC: 038203750965
• Spider Compatibility: Compatible with most 360 degree spiders (spider swivel casting sold separately)
• Design: Wobble-free design and operation

Frequently Asked Questions

How many locking positions does the Garelick 75096 seat swivel have? The Garelick 75096 locks at 8 distinct positions, spaced every 45 degrees around a full 360 degree rotation.

Does the 75096 seat swivel come with the spider swivel casting? No, the spider swivel casting is not included with the Garelick 75096; it is compatible with most 360 degree spiders, but the spider casting is a separate component.

What are the dimensions of the Garelick 75096 seat swivel? It measures 8 inches wide by 7 inches long, with an overall height of 3 3/4 inches, and provides 6 inches of travel.

What is the Garelick 75096 made of? This seat swivel is built from anodized aluminum with stainless steel hardware for corrosion resistance in marine use.

How much does the Garelick 75096 seat swivel weigh? The Garelick 75096 weighs 4.4 pounds.

Can the seat be left to swivel freely instead of locking? Yes, the Garelick 75096 offers free swiveling in addition to its 8 locked positions at 45 degree increments.

What size seats is the 75096 designed for? The 6 inch travel on the Garelick 75096 is the standard size intended for wooden or plastic seats.

Does the swivel lock solidly or is there play in the locked position? The Garelick 75096 uses a wobble-free design, so once the locking handle secures a position the seat stays solid without play.

How is the Garelick 75096 operated? A convenient handle on the 75096 provides solid locking at any of its 8 positions with a simple motion.

What is the UPC for the Garelick 75096 seat swivel? The UPC for the Garelick 75096 8 Position Locking Seat Swivel is 038203750965.
