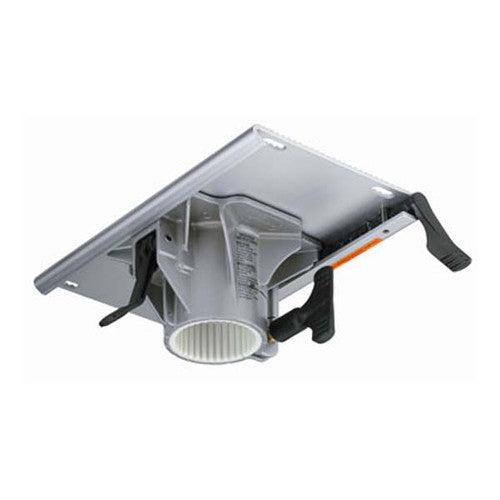

Garelick Millenium Series Ribbed Seat Slide, Left Hand Lever, Plain Finish, 6 Inch Travel

The Garelick Millenium Series Ribbed Seat Slide (Left Hand Lever, Plain Finish) is a boat seat mounting slide that delivers smooth, wobble-free performance with 6 inches of fore and aft travel. Its low-profile design allows a full 360 degrees of rotation, giving boaters an easy way to reposition their seat for fishing, docking, or general comfort while underway.

Construction is heavy-duty anodized aluminum, with a slide plate machined to a standard 5 inch by 12 inch hole pattern so it accommodates standard seat mounting holes without modification. The Positive Lock Spider mechanism rotates the full 360 degrees and engages an internal cup at 10 degree increments for a positive stop lock, while a secondary twist control provides variable drag adjustment that can be tightened to hold the seat in place at any point. Inside, a Delrin cup keeps the rotation smooth and gaul-free over repeated use.

This slide is built for left-hand lever operation with a plain (uncoated) finish, and it meets ABYC-H31 Type A performance standards. Retaining hardware is included for installation onto a compatible Garelick pedestal base. A right-hand lever version and a powder-coated finish are available as separate options for boaters who need a different configuration.

Specifications

• Brand: Garelick
• Manufacturer Part Number: 20000
• Series: Millenium
• Slide Type: Ribbed
• Operation: Left Hand Lever
• Finish: Plain
• Material: Anodized Aluminum with Delrin Cup
• Rotation: 360 degrees
• Lock Engagement: 10 degree increments
• Fore and Aft Travel: 6 inches
• Mounting Hole Pattern: 5 inches x 12 inches
• Standards Compliance: ABYC-H31 Type A
• Included Hardware: Retaining hardware (99302)
• Maximum Weight Recommendation: 250 pounds
• UPC: 038203200002
• Weight: 7.6 pounds

Fitment

Designed for use with compatible Garelick seat pedestal bases using a standard 5 inch by 12 inch mounting hole pattern.

Frequently Asked Questions

What is the fore and aft travel on the Garelick 20000 seat slide? The Garelick Millenium Series Ribbed Seat Slide, part number 20000, provides 6 inches of smooth, wobble-free fore and aft travel.

Is the Garelick 20000 seat slide left-hand or right-hand operation? Part number 20000 is the left hand lever version with a plain finish. A right-hand lever version is available as a separate configuration.

What mounting hole pattern does this seat slide use? This slide has a standard 5 inch by 12 inch mounting hole pattern machined into the anodized aluminum slide plate, matching standard seat mounting holes.

How much does the Garelick 20000 seat slide weigh? The Garelick Millenium Series Ribbed Seat Slide (part number 20000) weighs 7.6 pounds.

What material is the seat slide made of? The slide plate on part number 20000 is heavy-duty anodized aluminum, and the internal cup is made of Delrin for smooth, gaul-free rotation.

Does the Garelick 20000 rotate a full 360 degrees? Yes. The Positive Lock Spider on this seat slide rotates a full 360 degrees, with the internal cup engaging at 10 degree increments for a positive stop lock.

What hardware is included with this seat slide? The Garelick 20000 ships with retaining hardware (99302) needed for installation, along with the slide plate and Positive Lock Spider assembly.

Does this seat slide meet any boating safety standards? Part number 20000 meets ABYC-H31 Type A standards along with Garelick's own performance standards.

Can the drag on the seat slide rotation be adjusted? Yes, the secondary twist control on the Positive Lock Spider offers variable drag adjustment and can be tightened to lock the seat in place at a chosen position.

What is the difference between the ribbed and smooth Millenium seat slide series? Part number 20000 is from the Ribbed Series with a plain finish option; the Millenium Smooth Series (part number 22000) uses a smooth, powder-coated slide plate instead.

What maximum weight is this seat slide rated for? The Garelick 20000 seat slide has a maximum weight recommendation of 250 pounds.

Is a powder coated finish available for this seat slide? Part number 20000 is the plain finish version; the Ribbed Series is also available with a powder coated finish as a separate option.
