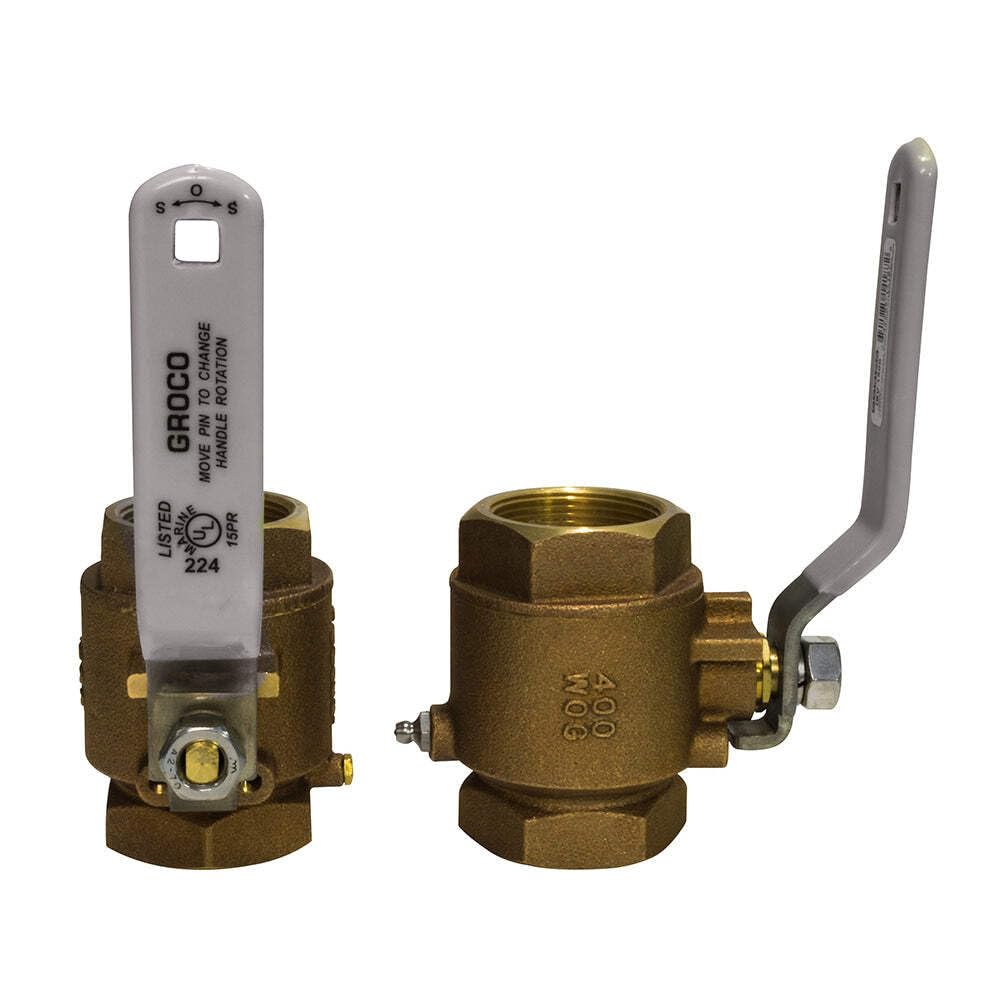

Groco Bronze In-Line NPT Ball Valve, IBV Series - Available in 3/4" to 1-1/4" NPT

The Groco IBV Series bronze in-line ball valve is a full-flow, two-port shutoff valve built for marine plumbing runs where corrosion resistance and reliable sealing matter most - raw water intake lines, thru-hull shutoffs, washdown circuits, engine cooling supply, and other onboard plumbing that sees constant exposure to saltwater and vibration. Each valve is cast from bronze with a durable exterior finish and uses brass and stainless steel internals for long service life, and every size in the line carries UL recognition for marine and industrial use. The straight-through, full-port design keeps flow restriction to a minimum compared to standard ball valves, and the quarter-turn handle gives a clear, positive on/off indication at a glance - important when a valve needs to be closed quickly in an emergency.

Specifications

• Brand: Groco
• Valve Type: Bronze In-Line Ball Valve
• Connection Type: NPT (National Pipe Tapered), FNPT outlet
• Number of Ports: 2 (straight-through shutoff)
• Body Material: Brass and stainless steel internals, bronze exterior finish
• Certification: UL Recognized
• Sizes Available: 3/4 Inch NPT, 1 Inch NPT, 1-1/4 Inch NPT

Sizes & Options

This valve is sold by pipe size, and the correct choice comes down to matching your existing plumbing run rather than the application itself - a raw water intake and a washdown line can both use the same size valve if the pipe is the same. Measure the NPT thread size of the pipe or fitting the valve will be installed into (or match the size of the valve it is replacing) and select the corresponding option: 3/4 Inch NPT (IBV-750) for smaller supply lines and washdown circuits, 1 Inch NPT (IBV-1000) for common raw water intake and cooling lines, or 1-1/4 Inch NPT (IBV-1250) for higher-flow intake and discharge runs. All three sizes share the same bronze construction, full-port flow path, and UL recognition - only the thread size and overall dimensions change.
