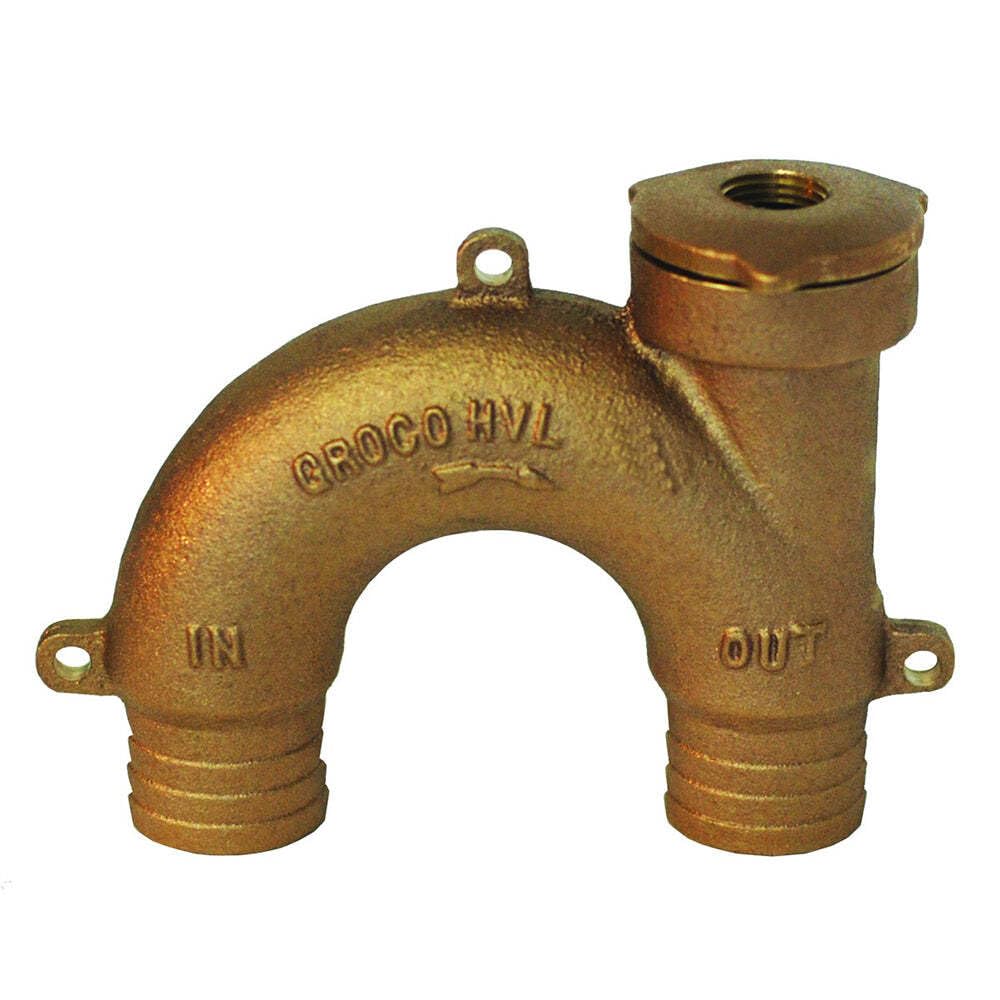

GROCO Bronze Vented Loop, 1-1/2 Inch Hose Anti-Siphon Valve
GROCO Bronze Vented Loop, 1-1/2 Inch Hose Anti-Siphon Valve
The GROCO HVL-1500 is a bronze vented loop built for 1-1/2 inch hose, designed to prevent backflow and siphoning in marine plumbing systems such as head discharge, cockpit drains, and other below-waterline hose runs. By introducing an air break at the highest point of the hose run, a vented loop like the HVL-1500 stops water from being siphoned back into the boat when the vessel heels or when water levels shift, which is a common cause of unwanted flooding through thru-hull plumbing.
Constructed from plastic with a bronze finish, the HVL-1500 is sized for 1-1/2 inch hose and is supplied as a single unit. It carries a nominal wall thickness of 0.125 inches and measures 8 inches by 7 inches. This fitting is intended to be installed in-line on hose runs where anti-siphon protection is required, and is compatible with standard 1-1/2 inch marine hose.
Specifications
- Brand: GROCO
- Manufacturer Part Number: HVL-1500
- Hose Size: 1-1/2 inches
- Material: Plastic
- Color: Bronze
- Product Dimensions: 8 inches L x 7 inches W
- Nominal Wall Thickness: 0.125 inches
- Item Length: 10 feet
- Weight: 2.8 pounds
- Unit Count: 1
- UPC: 742985002715
Fitment
Fits 1-1/2 inch hose runs.
Replaces (OEM)
No OEM cross-reference numbers are listed for the GROCO HVL-1500.
Frequently Asked Questions
What size hose does the GROCO HVL-1500 vented loop fit? The GROCO HVL-1500 is sized for 1-1/2 inch hose.
What is a vented loop used for? A vented loop like the HVL-1500 creates an air break at the top of a hose run to stop water from being siphoned back through the plumbing, which helps prevent unwanted flooding on below-waterline hose runs.
What material is the HVL-1500 made from? The HVL-1500 is made from plastic with a bronze finish.
How much does the GROCO HVL-1500 weigh? The HVL-1500 weighs 2.8 pounds.
What are the dimensions of the HVL-1500? The HVL-1500 measures 8 inches long by 7 inches wide.
What is the wall thickness of the HVL-1500? It has a nominal wall thickness of 0.125 inches.
How many units come in a package of the HVL-1500? The HVL-1500 is sold as a single unit (unit count of 1).
Does the HVL-1500 replace a specific OEM part number? No OEM cross-reference or replacement part numbers are listed for the GROCO HVL-1500.
Is the GROCO HVL-1500 a genuine GROCO part? Yes, the HVL-1500 is a genuine GROCO product, identified by GROCO part number HVL-1500.
Where is a vented loop typically installed on a boat? Vented loops such as the HVL-1500 are typically installed in-line on below-waterline hose runs, including head discharge and other drain lines, at the highest point of the run.
