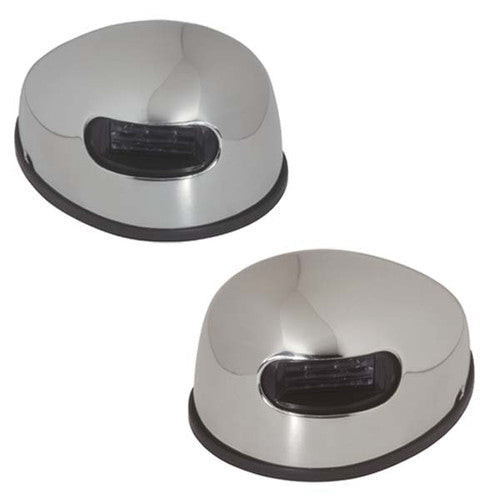

Innovative Lighting 552-1200-7 Stainless Steel LED Deck Mount Navigation Sidelights, Port and Starboard Pair

The Innovative Lighting 552-1200-7 Stainless Steel Deck Mount LED Navigation Sidelights give powerboats under 20 meters (65.6 feet) a compliant, long-lasting bi-color sidelight set in one package. The pair includes one starboard (green) sidelight and one port (red) sidelight, each housed in polished stainless steel with a transparent lens that stays cool to the touch even during extended use. Each light runs a 3 LED configuration rated for 50,000 hours of service life, drawing just 55 mA per light on a 9-16 volt DC system, so the draw on your boat's electrical system stays minimal compared to older incandescent sidelights.

Installation uses a deck mount design with hard wire leads and a required 0.375 inch mounting hole per light. The set is USCG Compliant and NMMA Listed, with a rated visibility of 2 nautical miles, meeting the navigation light requirements for powerboats under 20 meters. Because the housing is stainless steel rather than plastic, the 552-1200-7 sidelights resist corrosion in saltwater and freshwater environments better than painted or coated alternatives, making them a durable choice for boat owners replacing worn or cracked bow-area sidelights.

Specifications

• Brand: Innovative Lighting
• Manufacturer Part Number: 552-1200-7
• Type: Navigation Light
• Mounting Location: Port and Starboard
• Mounting Style: Deck Mount
• Light Color: Green / Red
• Bulb Type: LED
• LED Configuration: 3 LED per light
• Voltage: 9-16 Volt DC
• Energy Draw: 55 mA per light
• Service Life: 50,000 hours
• Visibility Range: 2 Nautical Miles
• Compliance: USCG Compliant, NMMA Listed
• Material: Stainless Steel
• Lens: Transparent, cool to the touch
• Mounting Hole Required: 0.375 inches
• Package Includes: 1 Starboard (Green) Sidelight and 1 Port (Red) Sidelight
• Individual Light Dimensions: 3.45 inches x 2.6 inches x 1.65 inches
• Package Dimensions: 10 x 7 x 3 inches
• Weight: 0.8 pounds
• UPC: 601373522474

Fitment

• Powerboats under 20 meters (65.6 feet)

Frequently Asked Questions

What is included in the Innovative Lighting 552-1200-7 sidelight set? The 552-1200-7 set includes one starboard (green) sidelight and one port (red) sidelight, sold as a matched pair for deck mounting.

What size boats is the 552-1200-7 sidelight pair designed for? These sidelights are designed for powerboats under 20 meters (65.6 feet) and are USCG Compliant and NMMA Listed for that class of vessel.

How is the 552-1200-7 sidelight pair mounted? Each light uses a deck mount design with hard wire leads and requires a 0.375 inch mounting hole per light.

What voltage do the 552-1200-7 sidelights run on? They operate on 9-16 volt DC systems, drawing about 55 mA per light.

How long do the LEDs in this sidelight set last? Innovative Lighting rates the LEDs in the 552-1200-7 sidelights at 50,000 hours of service life.

What material is the 552-1200-7 sidelight housing made from? The housing is polished stainless steel with a transparent lens that stays cool to the touch during use.

What is the visibility range of these navigation sidelights? The 552-1200-7 sidelights are rated for 2 nautical miles of visibility.

Are these sidelights compliant with Coast Guard requirements? Yes, the 552-1200-7 pair is USCG Compliant and NMMA Listed for powerboats under 20 meters.

How much does the 552-1200-7 sidelight pair weigh? The pair weighs 0.8 pounds.

What are the dimensions of each individual sidelight? Each light in the 552-1200-7 pair measures 3.45 inches long by 2.6 inches wide by 1.65 inches, per the individual light dimensions for this set.

Can I buy just the port or just the starboard light separately? The 552-1200-7 is sold as a matched pair containing one port (red) and one starboard (green) light.

Do the 552-1200-7 sidelights include mounting hardware or wiring? Each light includes hard wire leads for installation; the mounting location requires a 0.375 inch hole per light.
