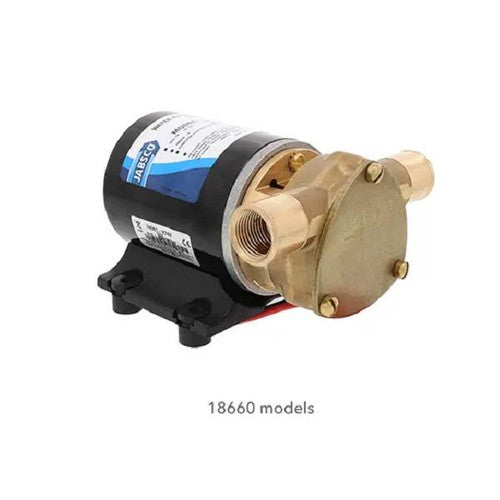

Jabsco 18660-0121 12V Water Puppy Pump, 6 GPM Bronze Bilge and Livewell Pump

The Jabsco 18660-0121 is a heavy duty commercial 12-volt Water Puppy pump built for continuous marine pumping tasks. It uses a flexible impeller design that makes it well suited for livewell circulation, draining bait tanks, engine oil changing, washdown, bilge duty, or general purpose pumping wherever a compact, self-priming pump is needed. The pump head is bronze and the impeller is an oil-resistant nitrile compound, giving the unit a long service life in wet marine environments and around fuels and oils.

This is a self-priming pump that delivers high pressure at a 6 GPM flow rate. Because of its self-priming capability, it can be mounted up to 3 feet above the water source and installed in any orientation. Installation is straightforward: the pump fastens to a solid surface with four screws through the rubber mounting grommets molded into its base, and plumbing connects through one of three alternative port configurations before the motor lead wires are wired to a 12-volt DC power source. The pump is ignition protected, making it appropriate for use in gasoline engine spaces.

Specifications

• Brand: Jabsco
• Manufacturer Part Number: 18660-0121
• Voltage: 12 Volts DC
• Flow Rate: 6 GPM
• Pump Head Material: Bronze
• Impeller Material: Oil-resistant nitrile
• Self-Priming Height: Up to 3 feet
• Port Size: 1/2 inch NPT
• Amperage: 15 Amps
• Ignition Protection: Ignition protected
• Mounting: Any position; four-screw rubber grommet base mount
• Product Dimensions: 10 inches L x 6 inches W x 5 inches H
• Weight: 5.7 pounds
• Country of Origin: China
• UPC: 671880532112

Frequently Asked Questions

What flow rate does the Jabsco 18660-0121 Water Puppy pump deliver? The Jabsco 18660-0121 Water Puppy pump delivers a 6 GPM flow rate at high pressure, making it suitable for livewell circulation, bait tank draining, bilge duty, and washdown use.

Is the 18660-0121 a 12-volt or 24-volt pump? It runs on 12 volts DC. A 24-volt version of the Water Puppy pump is sold separately as a different part number for boats with 24-volt electrical systems.

How is the Jabsco 18660-0121 pump mounted? The pump fastens to a solid surface using four screws through the rubber mounting grommets built into its base, and it can be mounted in any position since it is self-priming.

How far above the water source can this pump be installed? Because the 18660-0121 is self-priming, it can be located up to 3 feet above the water source rather than requiring a fully flooded suction line.

What is the pump head and impeller made of? The Jabsco 18660-0121 has a bronze pump head paired with an oil-resistant nitrile impeller, a combination chosen for long service life in marine environments.

What port size does the Water Puppy pump use? The 18660-0121 uses 1/2 inch NPT ports for plumbing connections, with alternative connection methods available at the pump's inlet and outlet.

Is this pump safe to use in a gasoline engine compartment? Yes, the Jabsco 18660-0121 is ignition protected, which makes it suitable for installation in spaces with gasoline engines or fuel vapors.

What can the Jabsco 18660-0121 pump be used for besides bilge pumping? Beyond bilge duty, this pump is designed for livewell circulation, draining bait tanks, engine oil changing, washdown tasks, and general purpose transfer pumping.

How much does the Jabsco 18660-0121 pump weigh? The Jabsco 18660-0121 Water Puppy pump weighs 5.7 pounds.

What amperage draw should I plan for when wiring this pump? The 18660-0121 draws up to 15 amps, so wiring and fusing should be sized accordingly when connecting it to a 12-volt DC circuit.

Where is the Jabsco 18660-0121 Water Puppy pump manufactured? This pump's country of origin is China.
