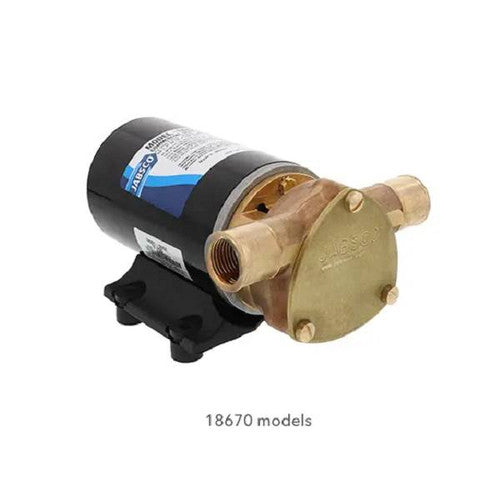

Jabsco 18670-0943 24V Water Puppy Commercial Duty Pump, 6 GPM Bronze Self-Priming

The Jabsco 18670-0943 is a commercial duty 24V Water Puppy pump built for demanding onboard pumping tasks such as livewell circulation, draining bait tanks, engine oil changing, washdown, and bilge duty. It uses a flexible oil resistant nitrile impeller paired with a bronze pump head, giving the pump a long service life in a marine environment. The pump delivers a 6 GPM flow rate at high pressure, and its self-priming design lets it be located up to 3 feet above the water source. Because it is self-priming, the pump can be mounted in any position, giving installers flexibility when planning plumbing runs and wire routing.

Installation is straightforward: the pump fastens to a solid mounting surface using four screws through the rubber mounting grommets molded into its base, which also help isolate vibration. Plumbing connects to the pump ports using one of three alternative connection methods built into the housing, and the motor lead wires connect directly to the 24V electrical power source. The pump is ignition protected, making it suitable for use in gasoline engine spaces. With its 6 GPM flow rate and bronze construction, the Water Puppy 18670-0943 is intended for boat owners and marine service technicians who need a reliable, high-pressure 24V utility pump for repeated commercial duty use.

Specifications

• Brand: Jabsco
• Manufacturer Part Number: 18670-0943
• Voltage: 24 Volts DC
• Flow Rate: 6 GPM (Gallons Per Minute)
• Maximum Current: 15 Amps, Non-CE
• Port Connection: 1/2 inch NPT
• Pump Head Material: Bronze
• Impeller Material: Oil Resistant Nitrile
• Self-Priming Height: Up to 3 feet above the water source
• Mounting: Any position; four screws through rubber mounting grommets in the base
• Ignition Protection: Ignition protected
• Weight: 7 pounds
• UPC: 671880532136

Fitment

This is a universal 24V utility pump for livewell circulation, bait tank draining, engine oil changing, washdown, and bilge pumping applications; it is not restricted to a specific engine or boat model.

Frequently Asked Questions

What voltage does the Jabsco 18670-0943 pump run on? The Jabsco 18670-0943 is a 24 Volt DC pump, built for commercial duty applications where 24V power is available onboard.

What is the flow rate of this pump? The Jabsco 18670-0943 Water Puppy pump delivers a 6 GPM (gallons per minute) flow rate at high pressure.

How high above the water can this pump be mounted? Thanks to its self-priming design, the 18670-0943 can be located up to 3 feet above the water source.

Can the pump be mounted in any orientation? Yes, because the 18670-0943 is self-priming it can be mounted in any position.

What is the pump head made of? The Jabsco 18670-0943 has a bronze pump head, chosen for long service life in marine environments.

What material is the impeller made from? An oil resistant nitrile impeller is used inside the 18670-0943, which holds up well to engine oil changing and general pumping duties.

Is this pump ignition protected? Yes, the 18670-0943 is ignition protected, making it suitable for installation in gasoline engine compartments.

What size are the pump ports? The 18670-0943 uses 1/2 inch NPT port connections.

How much current does this pump draw? The 18670-0943 is rated at 15 amps, Non-CE.

How is the pump mounted and plumbed? The 18670-0943 fastens to a solid surface with four screws through the rubber mounting grommets in its base, and the plumbing connects to the pump ports using one of three alternative connection methods provided; motor lead wires then connect to the 24V power source.

What applications is this pump used for? The Jabsco 18670-0943 is used for livewell circulation, draining bait tanks, engine oil changing, washdown, bilge pumping, and general pumping applications.

How much does the 18670-0943 pump weigh? The Jabsco 18670-0943 weighs 7 pounds.
