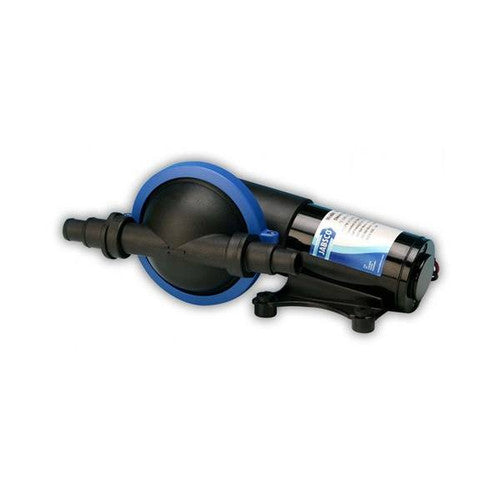

Jabsco Diaphragm Shower & Bilge Pump 50880-1000, 12V 4.2 GPM Self-Priming Dry-Run

The Jabsco Diaphragm Shower & Bilge Pump (50880-1000) is a compact, self-priming 12V diaphragm pump built for flexible installation anywhere water needs to be moved out of a boat, whether draining a shower sump or clearing bilge water. Its simple, filter-less design means there is no strainer to clean or clog, and the pump can be mounted above the water line since it is self-priming from dry up to 10 feet of vertical lift. The permanent magnet motor drives the diaphragm mechanism to deliver a nominal open-flow rate of 4.2 gallons per minute, drawing 8 amps on a 10 amp fuse. Unlike centrifugal pumps that can be damaged by running dry, this diaphragm pump is built for extended dry-running without harm, making it forgiving in low-water or intermittent-use situations such as shower sumps. The plastic body resists corrosion in the marine environment, and the pump connects using a 3/4 inch hose barb port for straightforward plumbing. The Jabsco 50880-1000 is built to recognized marine standards, meeting ISO 8846 MARINE and USCG regulations for ignition protection, ISO 8849 MARINE Bilge Pump Standard, and ISO 15083 specification requirements. Its compact footprint and multi-position mounting flexibility make it suitable for tight installation spaces where a traditional bilge pump will not fit.

Specifications

• Brand: Jabsco
• Manufacturer Part Number: 50880-1000
• Pump Type: Diaphragm shower and bilge pump
• Flow Rate: 4.2 gallons per minute (nominal open flow)
• Self-Priming Lift: Up to 10 feet, dry
• Body Material: Plastic
• Port Type: 3/4 inch hose barb
• Motor Type: Permanent magnet
• Voltage: 12V
• Amp Draw: 8 amps
• Fuse Size: 10 amps
• Product Dimensions: 14 inches L x 8 inches W x 6 inches H
• Color: Black
• Weight: 8.0600176 pounds
• Standards: ISO 8846 MARINE and USCG Regulations for Ignition Protection, ISO 8849 MARINE Bilge Pump Standard, Built to ISO 15083 Specification
• UPC: 671880581561

Frequently Asked Questions

What is the flow rate of the Jabsco 50880-1000 pump? The Jabsco 50880-1000 delivers a nominal open-flow rate of 4.2 gallons per minute.

Can the Jabsco 50880-1000 run dry without being damaged? Yes, the Jabsco 50880-1000 is built with dry running capability and is self-priming from dry up to 10 feet of vertical lift.

What voltage and amperage does the Jabsco 50880-1000 require? The Jabsco 50880-1000 operates on 12V DC, draws 8 amps, and should be wired with a 10 amp fuse.

What size hose fits the Jabsco 50880-1000? The Jabsco 50880-1000 uses a 3/4 inch hose barb port connection.

Does the Jabsco 50880-1000 need an inline strainer or filter? No filter is required for the Jabsco 50880-1000, simplifying installation and maintenance.

What is the Jabsco 50880-1000 pump body made of? The pump body of the Jabsco 50880-1000 is made of plastic, chosen for its resistance to corrosion in marine environments.

What marine standards does the Jabsco 50880-1000 meet? The Jabsco 50880-1000 meets ISO 8846 MARINE and USCG regulations for ignition protection, the ISO 8849 MARINE Bilge Pump Standard, and is built to ISO 15083 specification.

What are the dimensions and weight of the Jabsco 50880-1000? The Jabsco 50880-1000 measures 14 inches L x 8 inches W x 6 inches H and weighs 8.0600176 pounds.

What color is the Jabsco 50880-1000 pump? The Jabsco 50880-1000 is black.

Is the Jabsco 50880-1000 self-priming? Yes, self-priming is built into the Jabsco 50880-1000, with the ability to prime from dry up to 10 feet of vertical lift.

What type of motor drives the Jabsco 50880-1000? A permanent magnet motor powers the diaphragm mechanism in the Jabsco 50880-1000.

Can the Jabsco 50880-1000 be used for both shower drainage and bilge duty? Yes, the compact and simple design of the Jabsco 50880-1000 allows flexible installation for both shower sump drainage and general bilge pumping.
