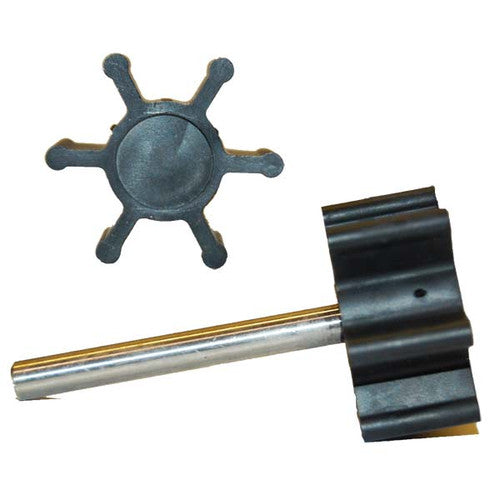

Jabsco Drill Pump Impeller 17255-0003-P, Profile D Nitrile, 6-Blade, 1/4 Inch Shaft

The Jabsco 17255-0003-P is a profile D replacement impeller built with a molded-on shaft for use in Jabsco electric drill pumps. It is the correct wear part to keep an electric drill pump priming and moving fluid at full capacity once the original impeller has worn down or lost flexibility. The impeller features 6 blades and is molded from nitrile, a rubber compound chosen for its durability and resistance to wear from repeated priming and pumping cycles. Because the shaft is molded directly into the impeller body, installation is straightforward and does not require a separate shaft assembly.

This impeller is sized for compact drill-pump applications: it measures 3/4 inch (19mm) in width with an overall diameter of 1-9/16 inch and a 1/4 inch shaft diameter. It is expertly crafted from premium materials to match rigorous quality standards, making it a dependable choice for boat owners, homeowners, and anyone who relies on an electric drill pump for utility pumping, fluid transfer, or scavenging jobs around boats, homes, plants, shops, or farms.

Specifications

• Brand: Jabsco
• Manufacturer Part Number: 17255-0003-P
• Impeller Profile: D
• Blade Count: 6
• Material: Nitrile
• Shaft: Molded on
• Width: 3/4 inch (19mm)
• Overall Diameter: 1-9/16 inch
• Shaft Diameter: 1/4 inch
• Weight: 0.2 pounds
• UPC: 671880588140

Fitment

• Jabsco electric drill pump

Frequently Asked Questions

What is the Jabsco 17255-0003-P impeller used in? The Jabsco 17255-0003-P is a replacement impeller designed for use in Jabsco electric drill pumps, the type of pump that attaches to a standard electric drill for utility fluid transfer.

How many blades does this impeller have? The 17255-0003-P impeller has 6 blades, molded from nitrile for durability under repeated pumping cycles.

What material is the 17255-0003-P impeller made from? It is constructed from nitrile, a rubber material chosen for extreme durability and long-lasting use in pump applications.

Does this impeller include a shaft? Yes, the shaft is molded directly onto the 17255-0003-P impeller body, so no separate shaft assembly is needed.

What are the dimensions of the 17255-0003-P impeller? It measures 3/4 inch (19mm) in width, 1-9/16 inch in overall diameter, and has a 1/4 inch shaft diameter.

How much does the 17255-0003-P impeller weigh? This impeller weighs 0.2 pounds.

What impeller profile is the 17255-0003-P? The 17255-0003-P is a profile D impeller.

Is the 17255-0003-P a genuine Jabsco part? Yes, the 17255-0003-P is a genuine Jabsco replacement impeller, expertly crafted from premium materials to Jabsco's quality standards.

When should I replace the impeller in my Jabsco electric drill pump? The impeller should be replaced when it shows signs of wear, cracking, or reduced pumping performance, since a worn nitrile impeller loses its ability to prime and move fluid efficiently.

What is in the box with the 17255-0003-P? The 17255-0003-P ships as a single replacement impeller with its molded-on shaft.
