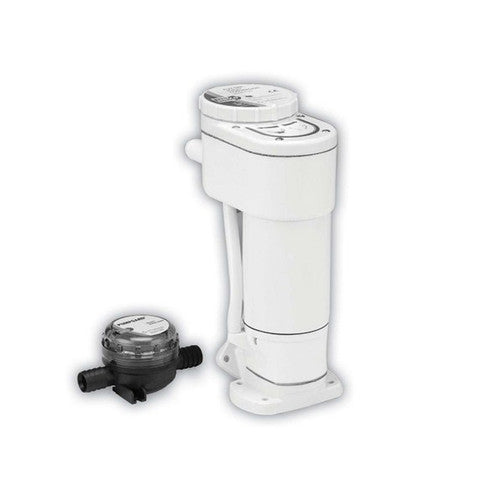

Jabsco Electric Toilet Conversion Kit 12V, 29200-0120, Fits 29090 and 29120 Standard and Large Bowl Toilets

The Jabsco Electric Toilet Conversion Kit 12V (29200-0120) converts a manual marine toilet into a fully electric one by directly replacing the manual pump assembly. It is built to fit all Jabsco and Par 29090 and 29120 standard and large bowl toilets, making it a straightforward upgrade for boat owners who want to eliminate hand-pumping. The kit is suitable for installation either above or below the waterline, giving flexibility depending on how the head compartment is configured.

At the core of the kit is a built-in macerator with a stainless steel chopper plate that breaks down waste for efficient discharge. The waste pump self-primes up to 2 feet and discharges over an anti-siphon loop up to 6 feet, exiting through a through-hull fitting down to 3 feet below the surface. Typical power consumption is less than 1.0 amp per hour, so it draws minimal load from the house battery during normal operation. The kit runs on 12V, with an amp draw of 24 amps and a recommended 25 amp fuse.

Ignition protection is built in, meeting ISO 8846 MARINE and USCG 183.410 standards, which matters for installations near engine spaces or fuel systems. Because this kit replaces the manual pump assembly rather than the whole toilet, it lets an existing Jabsco or Par 29090/29120 toilet be upgraded to electric operation without buying a completely new unit.

Specifications

• Brand: Jabsco
• Manufacturer Part Number: 29200-0120
• Voltage: 12V
• Amp Draw: 24 Amp
• Fuse Size: 25 Amp
• Compatible Toilet Models: Jabsco and Par 29090 and 29120 standard and large bowl toilets
• Installation: Above or below waterline
• Waste Discharge: Up to 6 feet over an anti-siphon loop, out of a through-hull fitting down to 3 feet below the surface
• Self-Priming: Up to 2 feet
• Power Consumption: Less than 1.0 amp per hour
• Ignition Protection: Meets ISO 8846 MARINE and USCG 183.410
• Material: Stainless steel chopper plate
• Color: White
• Weight: 7.8 pounds

Fitment

• Jabsco and Par 29090 standard and large bowl toilets
• Jabsco and Par 29120 standard and large bowl toilets

Frequently Asked Questions

What toilets does the Jabsco 29200-0120 kit fit? The Jabsco Electric Toilet Conversion Kit 29200-0120 fits all Jabsco and Par 29090 and 29120 standard and large bowl toilets.

Can this kit be installed below the waterline? Yes, the 29200-0120 conversion kit is suitable for installation either above or below the waterline.

What voltage does this conversion kit run on? It runs on 12V and has an amp draw of 24 amps, with a recommended 25 amp fuse.

How much power does the Jabsco 29200-0120 use during normal operation? Typical power consumption of the 29200-0120 kit is less than 1.0 amp per hour.

Does the kit include a macerator? Yes, the Jabsco 29200-0120 has a built-in macerator with a stainless steel chopper plate that breaks down waste before discharge.

How far can the waste pump discharge? The waste pump on the 29200-0120 discharges over an anti-siphon loop up to 6 feet and out of a through-hull fitting down to 3 feet below the surface.

Is this kit ignition protected for use near an engine compartment? Yes, the Jabsco 29200-0120 meets ISO 8846 MARINE and USCG 183.410 standards for ignition protection.

Does this replace the whole toilet or just part of it? The 29200-0120 kit directly replaces the manual pump assembly on a compatible Jabsco or Par toilet, converting it to electric operation rather than replacing the entire toilet.

How far can the pump self-prime? The Jabsco 29200-0120 pump self-primes from dry up to 2 feet.

What color is the conversion kit housing? The 29200-0120 kit is white.

How much does the Jabsco 29200-0120 kit weigh? The Jabsco Electric Toilet Conversion Kit 29200-0120 weighs 7.8 pounds.
