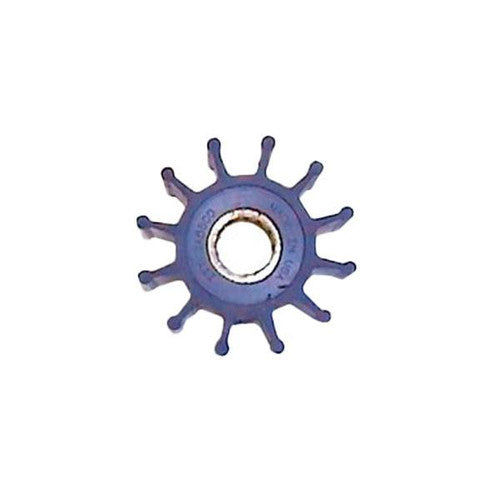

Jabsco Impeller and Gasket Kit 1210-0001-P, Neoprene, 12-Blade, Drive Type 7

The Jabsco 1210-0001-P Impeller and Gasket Kit is a complete replacement kit for a marine engine cooling water pump, built around a neoprene, 12-blade, Drive Type 7 impeller measuring 2-1/4 inches in diameter. Neoprene is a flexible rubber compound designed for engine cooling pump service, giving the blades the seal and wear resistance needed to keep raw water or coolant moving through the pump housing. The kit comes complete with the matching gasket and a spline plug, so the parts needed to reseal the pump housing during a swap are included in a single package rather than sourced separately.

This kit is intended as a like-for-like replacement for boat owners performing routine water pump maintenance. Flexible impellers wear over time and can lose blade shape or crack, which reduces cooling flow, so keeping a Jabsco 1210-0001-P kit on hand or installing one during scheduled service helps avoid unexpected overheating. Installation follows standard Jabsco pump service: the pump end cover is removed, and the impeller is drawn out using a Jabsco Impeller Removal Tool or channel lock pliers gripping the impeller hub; screwdrivers should be avoided since they can damage the pump body sealing face or slip in tight spaces.

Specifications

• Brand: Jabsco
• Manufacturer Part Number: 1210-0001-P
• Material: Neoprene
• Drive Type: Type 7
• Blade Count: 12
• Diameter: 2-1/4 inches
• Includes: Gasket and spline plug
• UPC: 671880570718
• Weight: 0.4 pounds
• Package Dimensions: 20.828 cm L x 9.144 cm W x 7.62 cm H

Frequently Asked Questions

What is included in the Jabsco 1210-0001-P Impeller and Gasket Kit? The kit includes the neoprene impeller, a matching gasket, and a spline plug, giving the parts needed to reseal the pump housing during replacement.

What material is the Jabsco 1210-0001-P impeller made of? It is made of neoprene, a rubber compound suited to engine cooling pump service.

How many blades does the Jabsco 1210-0001-P impeller have? It has 12 blades.

What drive type does this Jabsco impeller use? The Jabsco 1210-0001-P uses Drive Type 7.

What size is the Jabsco 1210-0001-P impeller? The impeller has a diameter of 2-1/4 inches.

How much does the Jabsco 1210-0001-P kit weigh? The kit weighs 0.4 pounds.

Does the Jabsco 1210-0001-P kit come with a spline plug? Yes, a spline plug is included along with the impeller and gasket in the 1210-0001-P kit.

What tool is needed to remove the old impeller? Use a Jabsco Impeller Removal Tool or channel lock pliers gripping the impeller hub; screwdrivers should be avoided since they can damage the pump body sealing face or be dangerous in confined spaces.

What is the UPC for the Jabsco 1210-0001-P Impeller and Gasket Kit? The UPC for this kit is 671880570718.

Is the Jabsco 1210-0001-P a genuine Jabsco part? Yes, it is a genuine Jabsco impeller and gasket kit identified by Jabsco part number 1210-0001-P.

What is the Jabsco 1210-0001-P impeller kit used for? It is used to replace the impeller and gasket in a marine engine cooling water pump.

How does the Jabsco 1210-0001-P compare to Jabsco's 8-blade nitrile impellers? The 1210-0001-P is a 12-blade neoprene impeller suited to engine cooling pump duty, while Jabsco's 8-blade nitrile impellers are built for pumping oil or transferring water heavily contaminated with oil or diesel.
