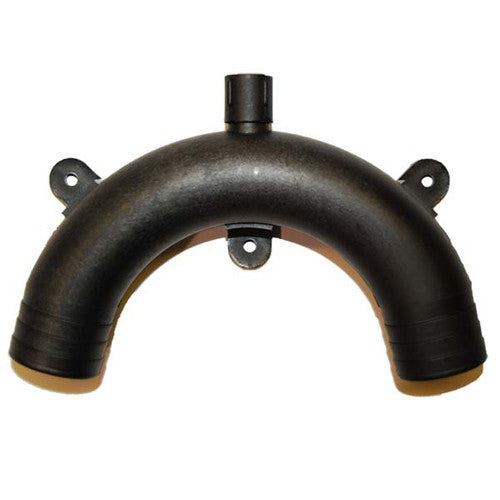

Jabsco Vented Loop 29015-0010 for 1.5 Inch Hose - Marine Toilet Waste Discharge Siphon Break

The Jabsco Vented Loop 29015-0010 is a vented loop fitting sized for 1.5 inch hose, built for the inlet and discharge plumbing of marine toilets. It is an essential safety component on any toilet installed below the static or heeled waterline, where a straight run of hose could allow water to siphon back into the boat. The vented loop uses a simple valve system that opens to break the siphon whenever the loop is not under positive pressure, ensuring that water cannot siphon over the pipe loop and flood the head or bilge.

This vented loop is moulded in tough plastic for corrosion resistance in the marine environment, an advantage over metal loop fittings that can corrode from constant exposure to seawater and waste discharge. It is intended for use in the waste discharge loop of the toilet system, positioned at the high point of the hose run above the waterline. Because it is sized specifically for 1.5 inch hose, it is intended as a direct fit into existing 1.5 inch marine toilet plumbing runs without needing to change hose diameter elsewhere in the system.

Specifications

• Brand: Jabsco
• Manufacturer Part Number: 29015-0010
• Hose Size: 1.5 inches
• Material: Plastic
• Color: Black
• Weight: 0.5 pounds
• UPC: 671880529495
• Application: Toilet inlet and discharge plumbing, waste discharge loop

Frequently Asked Questions

What hose size does the Jabsco 29015-0010 vented loop fit? The Jabsco 29015-0010 vented loop is sized for 1.5 inch hose, matching the standard hose diameter used on most marine toilet inlet and discharge plumbing runs.

Why does a marine toilet need a vented loop? A vented loop is required on any toilet installed below the static or heeled waterline because it prevents water from siphoning back through the inlet or discharge hose. The Jabsco 29015-0010 uses a valve that opens to break the siphon whenever the line is not under positive pressure, stopping water from flowing over the loop and into the boat.

What is the vented loop made of? The Jabsco 29015-0010 is moulded in tough plastic, which resists corrosion from continuous exposure to seawater and waste discharge, unlike bare metal fittings.

Where should this vented loop be installed? It is installed in the waste discharge loop of the toilet plumbing, at the high point of the hose run above the static or heeled waterline, on either the inlet or discharge side of the system.

How much does the Jabsco 29015-0010 weigh? The Jabsco 29015-0010 vented loop weighs 0.5 pounds.

What color is the Jabsco vented loop? The Jabsco 29015-0010 vented loop is black.

Can this vented loop be used on both the inlet and discharge lines? Yes, the 29015-0010 is used on the inlet and discharge plumbing of toilets, and is specifically noted for use in the waste discharge loop.

What happens if a toilet plumbing run does not have a vented loop? Without a vented loop like the Jabsco 29015-0010, water can siphon over a pipe loop that sits below the static or heeled waterline, potentially flooding the head or allowing backflow into the toilet bowl.

Is the Jabsco 29015-0010 a genuine Jabsco part? Yes, 29015-0010 is the Jabsco manufacturer part number for this 1.5 inch vented loop, identified by UPC 671880529495.

Does the vented loop include any valve mechanism? Yes, the 29015-0010 has a simple valve system built into the loop that ensures water cannot siphon back over the pipe loop during normal operation.
