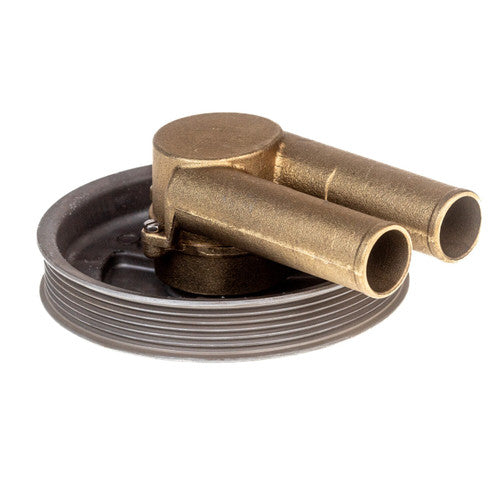

Johnson Pump 10-13567-11 F5B-9 Engine Cooling Pump, OEM Replacement for Volvo Penta 21214599, Serpentine Belt Mount

The Johnson Pump 10-13567-11, also known by its pump model designation F5B-9, is a genuine OEM engine cooling pump built as a direct replacement for Volvo Penta 21214599. This raw water cooling pump is designed for a serpentine belt pulley mount configuration and uses a lip seal design at the shaft to keep raw water contained and the drivetrain protected during operation. The pump has a port size of 1-1/4 inch (32mm), matching the cooling circuit plumbing on the Volvo Penta gasoline engines it fits.

Because this is manufactured by Johnson Pump as the original equipment source for Volvo Penta cooling pumps, the 10-13567-11 is built to the same specifications as the pump it replaces, rather than being a generic aftermarket reproduction. It uses impeller kit 189-091027B10, so buyers replacing a worn impeller can source the correct matched kit for this pump. The 10-13567-11 fits a wide range of Volvo Penta 3.0L, 4.3L, 5.0L, and 5.7L gasoline engine variants, covering GXi, OSi, Gi, and related engine families as listed below.

This pump is intended for boat owners and marine technicians replacing a failed, leaking, or worn raw water cooling pump on a compatible Volvo Penta engine, restoring proper raw water circulation to the engine's cooling system.

Specifications

• Brand: Johnson Pump
• Manufacturer Part Number: 10-13567-11
• Pump Model: F5B-9
• OEM Cross-Reference: Volvo Penta 21214599
• Mount Style: Serpentine Belt Pulley Mount
• Seal Type: Lip Seal
• Port Size: 1-1/4 inch (32mm)
• Impeller Kit: 189-091027B10
• Replaces: Johnson Pump 10-13468-01, Johnson Pump 10-13567-01
• Interchangeable With: JMP JPR-VP4599G
• Application: Fits Volvo Penta 3.0L/4.3L/5.0L/5.7L engines
• UPC: 7330717016869

Fitment

Fits Volvo Penta engines: 5.0GXi-C, 5.0GXi-CF, 5.0GXi-D, 5.0GXi-DF, 5.0OSi-C, 5.0OSi-CF, 5.0OSi-D, 5.0OSi-DF, 4.3GXi-B, 4.3GXi-BF, 4.3OSi-B, 4.3OSi-BF, 5.0GXi-B, 5.0GXi-BF, 5.0OSi-B, 5.0OSi-BF, 5.7Gi-B, 5.7Gi-BF, 5.7GXi-C, 5.7GXi-CF, 5.7GiI-B, 5.7GXiI-C, 5.7OSi-A, 5.7OSi-AF, 5.7OSXi-A, 5.7OSXi-AF, 4.3GXi-A, 5.0GXi-A, 5.7Gi-A, 5.7GXi-A, 5.7GXi-B, 5.7GiI-A, 5.7GSiI-A, 5.7GXiI-A, 5.7GXiI-B, 4.3GXi-C, 4.3GXi-CF, 4.3GXi-D, 4.3GXi-DF, 4.3OSi-C, 4.3OSi-CF, 4.3OSi-D, 4.3OSi-DF, 5.7Gi-C, 5.7Gi-CF, 5.7Gi-D, 5.7Gi-DF, 5.7GiI-C, 5.7GiI-D, 5.7GXi-D, 5.7GXi-DF, 5.7GXi-E, 5.7GXi-EF, 5.7GXiI-D, 5.7GXiI-E, 5.7OSi-B, 5.7OSi-BF, 5.7OSi-C, 5.7OSi-CF, 5.7OSXi-B, 5.7OSXi-BF, 5.7OSXi-C, 5.7OSXi-CF, 5.0GXi-E, 5.0GXi-EF, 5.0OSi-E, 5.0OSi-EF, 5.7Gi-E, 5.7Gi-EF, 5.7GiI-E, 5.7GXi-F, 5.7GXi-FF, 5.7GXiI-F, 5.7OSi-D, 5.7OSi-DF, 5.7OSXi-D, 5.7OSXi-DF, 4.3GXi-E, 4.3GXi-EF, 4.3OSi-E, 4.3OSi-EF, 3.0GSPBYCCE, 3.0GSPEFS, 3.0GSMEFS, 4.3GLPEFS, 4.3GiPEFS, 5.0GLPEFS, 5.0GiPEFS, 5.7GSPEFS, 5.7GSIPEFS.

Replaces (OEM)

• Volvo Penta 21214599
• Johnson Pump 10-13468-01
• Johnson Pump 10-13567-01
• JMP JPR-VP4599G

Frequently Asked Questions

What does the Johnson Pump 10-13567-11 replace? The 10-13567-11 is a direct OEM replacement for Volvo Penta 21214599, and it also replaces Johnson Pump 10-13468-01 and 10-13567-01, along with the reproduction JMP JPR-VP4599G.

Is this pump genuine OEM or an aftermarket reproduction? Johnson Pump is the original manufacturer of this cooling pump for Volvo Penta, so the 10-13567-11 is a genuine OEM part rather than a reproduction, unlike aftermarket units such as JMP JPR-VP4599G that are built to replace it.

What Volvo Penta engines fit the Johnson Pump 10-13567-11 / F5B-9? This pump fits Volvo Penta 3.0L, 4.3L, 5.0L, and 5.7L gasoline engine variants, including families such as 4.3GXi, 5.0GXi, 5.7GXi, 5.0OSi, 5.7OSi, 5.7Gi, and their listed sub-variants (for example 4.3GXi-A through 4.3GXi-E and 5.7GXi-A through 5.7GXi-F).

What is the port size on the 10-13567-11 cooling pump? The Johnson Pump 10-13567-11 has a 1-1/4 inch (32mm) port size for the raw water cooling connections.

How is the Johnson Pump 10-13567-11 mounted on the engine? It uses a serpentine belt pulley mount configuration with a lip seal design at the shaft, distinguishing it from the V-belt mounted 10-13568-11 variant.

What impeller kit does this pump use? The Johnson Pump 10-13567-11 uses impeller kit 189-091027B10 for service and maintenance.

Does the 10-13567-11 use a mechanical seal or a lip seal? This pump, the F5B-9 model 10-13567-11, uses a lip seal design rather than a mechanical seal.

Is the JMP JPR-VP4599G interchangeable with the Johnson Pump 10-13567-11? Yes, the JMP JPR-VP4599G is listed as a reproduction that the genuine Johnson Pump 10-13567-11 replaces, making the two interchangeable for fitment purposes.

What is the difference between the 10-13567-11 and the 10-13568-11 pump? The 10-13567-11 (F5B-9, OEM replacement for Volvo Penta 21214599) uses a serpentine belt pulley mount, while the 10-13568-11 (OEM replacement for Volvo Penta 21214596) uses a V-belt pulley mount, so the correct part depends on which mount style the engine uses.

Will the 10-13567-11 fit a Volvo Penta 4.3GL or 5.0GL engine? No, engines like the 4.3GL and 5.0GL are covered by the V-belt mounted 10-13568-11 pump rather than the serpentine belt mounted 10-13567-11.

What OEM Volvo Penta part number does this cross-reference to? The Johnson Pump 10-13567-11 cross-references directly to Volvo Penta part number 21214599.
