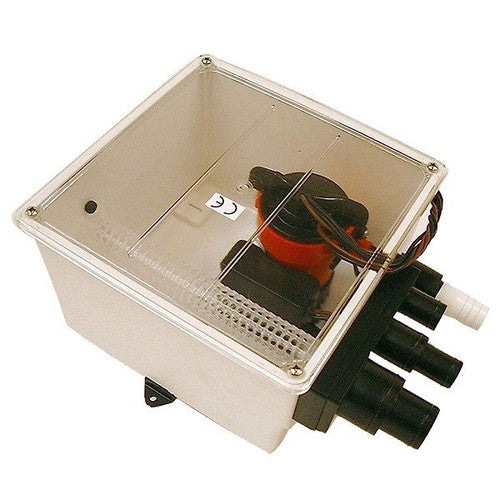

Johnson Pump 57151 Shower Sump Multiport Pump, 1000 GPH, 12V, Grey

The Johnson Pump 57151 is a compact 12V shower sump pump built for boats that need to clear waste water from more than one fixture at once. Its multiport design accepts a discharge hose plus multiple intake hoses, so a single pump can handle drainage from a shower pan, galley sink, or dish-washing machine tapping into the same sump. The tight-fitting lid on the housing helps minimize odors and splashing inside the boat, which matters in a below-deck installation where the sump sits close to living space. Inside, the pump uses a stainless steel shaft and a lip-type shaft seal, paired with a thermoplastic pump body for corrosion resistance in a wet bilge or shower sump environment. A check valve is built into the outlet side, stopping water that has already been pumped out from flowing back into the sump when the pump cycles off. The unit runs on 12 volts DC and is sized for a 3/4 inch discharge hose, with intake hose fittings that accept 3/4 inch, 1-1/8 inch, and 1-1/2 inch hose depending on which inlet ports are used. This is a direct fit as a replacement or upgrade for an existing Johnson Pump 57151 shower sump multiport pump, and it is finished in grey to match the original housing color.

Specifications

• Brand: Johnson Pump
• Manufacturer Part Number: 57151
• Product Type: Shower Sump Multiport Pump
• Voltage: 12 Volts DC
• Flow Rate: 1000 GPH
• Discharge Hose Size: 3/4 inch
• Intake Hose Sizes: 1 x 3/4 inch; 1 x 3/4 inch or 1-1/2 inch; 1 x 1-1/8 inch or 1 x 1-1/2 inch
• Shaft: Stainless steel
• Shaft Seal: Lip seal
• Pump Body Material: Thermoplastic
• Color: Grey
• Product Dimensions: 12 inches L x 9 inches W x 6 inches H
• Weight: 2.83125 pounds
• Check Valve: Built into outlet
• UPC: 729321571517

Frequently Asked Questions

What is the flow rate of the Johnson Pump 57151 shower sump pump? The Johnson Pump 57151 is rated at 1000 GPH, giving it enough capacity to handle multiple tapping points such as a shower and a galley sink draining into the same sump.

How many intake ports does this shower sump pump have? The 57151 features multiple inlet ports, accepting 3/4 inch hose, a second 3/4 inch or 1-1/2 inch hose, and a 1-1/8 inch or 1-1/2 inch hose, so more than one fixture can drain into the same sump.

What voltage does the Johnson Pump 57151 run on? It is a 12 volt DC pump, matching standard marine house battery systems.

Does the 57151 shower sump pump have a check valve? Yes, a check valve is built into the outlet of the Johnson Pump 57151 to stop discharged water from flowing back into the sump once the pump shuts off.

What is the discharge hose size on this pump? The discharge side of the Johnson Pump 57151 uses a 3/4 inch hose connection.

What material is the pump body made from? The Johnson Pump 57151 has a thermoplastic pump body, chosen for its resistance to corrosion in a wet shower sump environment.

What are the dimensions of the Johnson Pump 57151? This shower sump pump measures 12 inches long by 9 inches wide by 6 inches high.

How much does the Johnson Pump 57151 weigh? The Johnson Pump 57151 shower sump pump weighs 2.83125 pounds.

What color is the Johnson Pump 57151 housing? The housing on the 57151 is grey.

What type of shaft seal does this pump use? A lip-type shaft seal is used on the Johnson Pump 57151, paired with a stainless steel shaft.

Can the Johnson Pump 57151 handle water from more than one fixture at a time? Yes, its multiport design is built specifically to handle waste water from more than one tapping point, such as a shower plus a sink or dish-washing machine, into a single sump.

Is this pump a direct replacement for an existing Johnson Pump 57151? Yes, this is the Johnson Pump 57151 shower sump multiport pump itself, so it installs as a direct replacement wherever a 57151 is already fitted.
