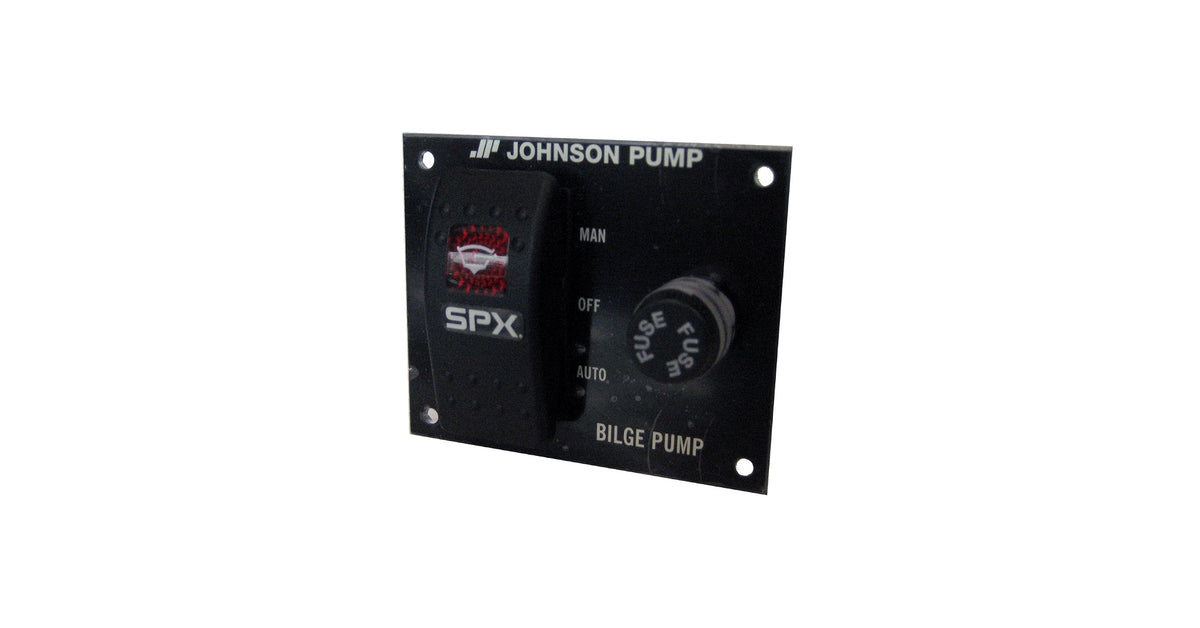

Johnson Pump 82044 Bilge Pump Switch Control Panel, 3-Way 12V Manual-Off-Automatic

The Johnson Pump 82044 Bilge Pump Switch Control Panel gives boaters full manual and automatic control over an onboard bilge pump from a single mounted panel. The three-position switch (Manual-Off-Automatic) lets the operator run the pump on demand or leave it in automatic mode for use with a float switch or automatic bilge switch, so water is cleared from the bilge without constant monitoring. Housed in a matte black finish, the panel is built for long-term marine use and includes an integrated fuse holder along with an operating light that shows at a glance when the pump is running. Fuses are included, so the panel is ready to wire in without sourcing extra parts.

At 73 mm x 60 mm (2.99 in x 2.17 in) with a 40 mm (1.57 in) depth, the panel is sized to fit standard dash and console cutouts on most boats, and it mounts using the surrounding panel bezel. It ships boxed at 1 in H x 5 in W x 7 in L. This control panel is designed to work with 12-volt DC bilge pump systems and pairs with Johnson Pump and compatible bilge pumps and float switches for a complete manual/automatic bilge control setup.

Specifications

• Brand: Johnson Pump
• Manufacturer Part Number: 82044
• Type: Switch Panel
• Switch Function: 3-Way (Manual-Off-Automatic)
• Voltage: 12 Volts DC
• Panel Dimensions: 73 mm x 60 mm (2.99 inches x 2.17 inches)
• Panel Depth: 40 mm (1.57 inches)
• Box Dimensions: 1 inch H x 5 inches W x 7 inches L
• Weight: 0.21875 pounds
• Material: Plastic
• Color/Finish: Matte Black
• Fuse: Integrated fuse holder, fuses included
• Indicator: Operating light shows when pump is active
• UPC: 729321820448

Frequently Asked Questions

What does the Johnson Pump 82044 switch panel do? The Johnson Pump 82044 is a bilge pump switch control panel that lets you run a 12-volt bilge pump manually or set it to automatic operation with a float switch, all from a single dash-mounted panel.

Is this a 2-way or 3-way switch panel? The 82044 is a 3-way switch panel with Manual, Off, and Automatic positions, not a simple 2-way on/off switch.

What voltage system is the 82044 panel designed for? This control panel is designed for 12-volt DC bilge pump systems.

Does the Johnson Pump 82044 include a fuse? Yes, the 82044 panel has an integrated fuse holder and ships with fuses included, so it is ready to wire without buying extra parts.

How do I know when the bilge pump is running? The 82044 panel has a built-in operating light that illuminates whenever the pump is active, so you can confirm operation without checking the bilge directly.

What size cutout does the Johnson Pump 82044 panel need? The panel measures 73 mm x 60 mm (2.99 inches x 2.17 inches) with a 40 mm (1.57 inch) depth behind the mounting surface.

What finish does the 82044 switch panel come in? It has a matte black finish designed to blend in on a boat's helm or console.

What material is the Johnson Pump 82044 panel made from? The 82044 control panel is made of plastic, matching its matte black switch panel construction.

How much does the Johnson Pump 82044 weigh? The 82044 bilge pump switch control panel weighs 0.21875 pounds.

Can the 82044 panel be used with a float switch for automatic bilge pumping? Yes, setting the 82044 switch to the Automatic position works with a float switch or automatic bilge switch to run the pump without manual input.

What is included with the Johnson Pump 82044? The 82044 comes as a complete panel assembly with the 3-way switch, integrated fuse holder, included fuses, and operating light in one matte black unit.

What is the UPC for the Johnson Pump 82044 control panel? The Johnson Pump 82044 bilge pump switch control panel has UPC 729321820448.
