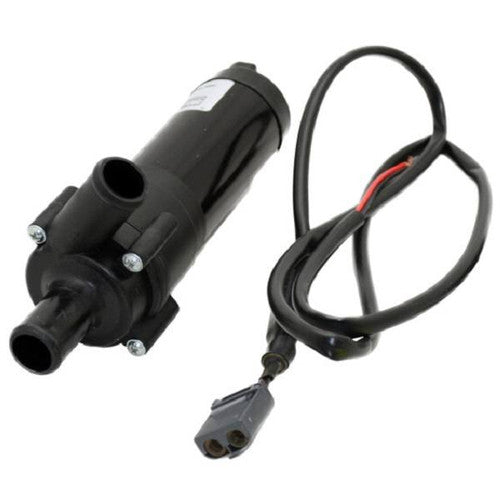

Johnson Pump CM10P7-1 12V Circulation Pump with Cord, 4 GPM, 5/8 Inch Port

The Johnson Pump CM10P7-1 is a heavy duty, magnetically driven circulation pump built for continuous-duty water and antifreeze circulation aboard boats. Compact yet powerful, it is ideal for circulating water or antifreeze in heating systems, or for moving cooling fresh water through onboard systems. As a normal-priming centrifugal pump, the CM10P7-1 must be mounted so it stays flooded at all times, or be primed manually before switching on; it is rated for up to 30 minutes of dry running.

Construction pairs a PPA thermoplastic pump body and impeller with a stainless steel shaft, an EPDM O-ring, a PSU magnet housing, and an enclosed DC permanent magnet on a ball-bearing-mounted motor designed for continuous operation. It is suitable for fresh water, salt water, and water/glycol mixtures up to 60 percent glycol. The pump runs on 12V DC power, draws 14 watts maximum, and delivers 4 GPM capacity through a 5/8 inch or 3/4 inch hose port. It ships with a flexible cord and mounts to a separate universal bracket for flat surfaces, sold apart from the pump body.

Specifications

• Brand: Johnson Pump
• Manufacturer Part Number: 10-24486-03
• Product Type: Circulation Pump
• Pump Body Material: PPA Thermoplastic
• Impeller Material: PPA Thermoplastic
• Shaft Material: Stainless Steel
• O-Ring Material: EPDM
• Magnet Housing Material: PSU
• Color: Black
• Voltage: 12V DC
• Port Size: 5/8 inch or 3/4 inch hose
• Capacity: 4 gallons per minute
• Input Power: 14 watts max
• System Pressure: 2.5 bar max (36 psi)
• Minimum Liquid Temperature: -40 degrees F
• Maximum Liquid Temperature: 212 degrees F
• Dry Running: 30 minutes max
• Mounting: Separate universal bracket for flat surfaces
• Length: 6.97 inches
• Width: 2.68 inches
• Height: 3.35 inches
• Weight: 1.6 pounds

Frequently Asked Questions

What is the flow rate of the Johnson Pump CM10P7-1? The CM10P7-1 delivers a capacity of 4 gallons per minute at a maximum system pressure of 2.5 bar (36 psi).

What voltage does the CM10P7-1 circulation pump run on? It runs on 12V DC power and draws 14 watts maximum, making it suitable for standard marine 12V electrical systems.

Can this pump handle antifreeze as well as water? Yes. The Johnson Pump CM10P7-1 is rated for fresh water, salt water, and water/glycol antifreeze mixtures up to 60 percent glycol.

What size hose connects to the CM10P7-1? The port accepts either 5/8 inch or 3/4 inch hose.

How long can the pump run dry without damage? The CM10P7-1 can run dry for up to 30 minutes maximum; beyond that it should be flooded or primed to avoid damage.

Does the pump need to be primed before use? As a normal-priming centrifugal pump, the CM10P7-1 should be mounted so it stays flooded at all times, or be primed manually before switching it on.

What materials is the CM10P7-1 made from? The pump body and impeller are PPA thermoplastic, the shaft is stainless steel, the O-ring is EPDM, and the magnet housing is PSU thermoplastic.

What is the operating temperature range for this pump? The Johnson Pump CM10P7-1 is rated from a minimum liquid temperature of -40 degrees F to a maximum of 212 degrees F.

Does the CM10P7-1 come with a mounting bracket? It mounts using a separate universal bracket designed for flat surfaces; the bracket is a separate component from the pump itself.

What are the dimensions and weight of this pump? The CM10P7-1 measures 6.97 inches long, 2.68 inches wide, and 3.35 inches high, and weighs 1.6 pounds.

Does the pump include a power cord? Yes, the Johnson Pump CM10P7-1 is supplied with a flexible cord.

What is a typical use for this circulation pump? It is commonly used to circulate water or antifreeze in onboard heating systems, or to circulate cooling fresh water through marine systems.
