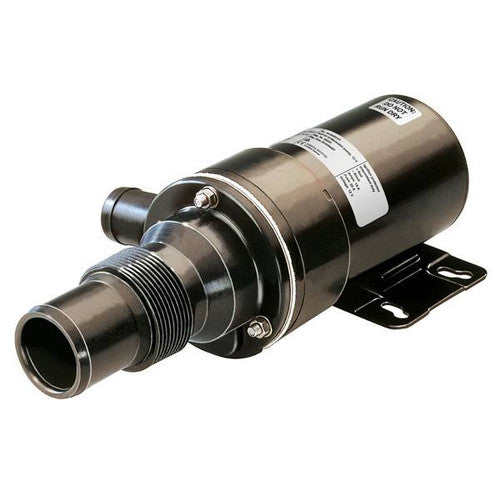

Johnson Pump Macerator Pump TA3P10-19, 12V DC, 10 GPM - Model 10-24453-01

The Johnson Pump Macerator Pump, model TA3P10-19 (part number 10-24453-01), is a 12V DC macerator designed to handle marine toilet and holding tank waste. A rotary cutter inside the pump shreds solid waste before it is pumped into or out of the holding tank, allowing the waste to pass through smaller-diameter hose runs than would otherwise be possible. For best performance, mount the pump as close as possible to the holding tank discharge outlet or the toilet bowl discharge outlet, minimizing the length of unmacerated waste line.

Construction pairs a Phenol Plastic (PF) pump body with a Thermoplastic Polyester (PET) housing, a Nitrile impeller (09-1052S-9), a stainless steel shaft, and a lip seal, giving the pump the chemical resistance and durability needed for continuous holding-tank service. The pump moves up to 10 GPM at 0.2 bar and draws 15 amps on a 20 amp fuse, wired to a 12V DC system. Plumbing connects via a 1-1/2 inch hose or 1-1/2 inch BSP inlet and a 1 inch hose outlet, matching common marine sanitation hose sizing. The compact housing measures 9.06 inches long, 4.25 inches wide, and 3.23 inches tall, and the complete unit weighs 4.8 pounds, making it straightforward to fit into tight lazarette or head compartments on boats and RVs.

Specifications

• Brand: Johnson Pump
• Manufacturer Part Number: 10-24453-01
• Model: TA3P10-19
• Motor Voltage: 12V DC
• Body Material: Phenol Plastic (PF)
• Impeller Material: Nitrile (09-1052S-9)
• Housing Material: Thermoplastic Polyester (PET)
• Shaft Material: Stainless Steel
• Seal Type: Lip Seal
• Capacity at 0.2 bar: 10 GPM
• Inlet Connection: 1-1/2 inch hose or 1-1/2 inch BSP
• Outlet Connection: 1 inch hose
• Amperage: 15 Amp
• Fuse Size: 20 Amp
• Length: 9.06 inches
• Width: 4.25 inches
• Height: 3.23 inches
• Weight: 4.8 pounds
• Color: White

Frequently Asked Questions

What does the Johnson Pump macerator pump 10-24453-01 do? It shreds toilet and holding tank waste with an internal rotary cutter before pumping it into or out of the holding tank, at a capacity of up to 10 GPM at 0.2 bar.

Where should the TA3P10-19 macerator pump be mounted? As close as possible to the holding tank discharge outlet or the bowl discharge outlet, so waste travels the shortest distance before being macerated.

What voltage does this macerator pump require? The Johnson Pump 10-24453-01 runs on a 12V DC system and draws 15 amps, so it should be wired with a 20 amp fuse.

What size hose fits the inlet and outlet? The inlet accepts 1-1/2 inch hose or a 1-1/2 inch BSP fitting, while the outlet is sized for 1 inch hose.

How much does the Johnson Pump 10-24453-01 weigh? This macerator pump weighs 4.8 pounds.

What are the dimensions of the TA3P10-19 macerator pump? It measures 9.06 inches long, 4.25 inches wide, and 3.23 inches tall.

What materials is the macerator pump made from? The Johnson Pump 10-24453-01 has a Phenol Plastic (PF) body, a Thermoplastic Polyester (PET) housing, a Nitrile impeller, and a stainless steel shaft, sealed with a lip seal.

Is this macerator pump suitable for continuous holding tank use? Yes, the TA3P10-19 is built for holding tank and bowl discharge duty, using corrosion-resistant plastics and a stainless steel shaft for durability.

What impeller does the 10-24453-01 macerator pump use? It uses a Nitrile impeller, part number 09-1052S-9.

Does the Johnson Pump macerator pump come with any documentation? Yes, the 10-24453-01 macerator pump includes documentation covering installation and use.

What is the flow rate of the Johnson Pump TA3P10-19? It delivers up to 10 GPM at 0.2 bar of pressure.

What color is the Johnson Pump macerator pump housing? The 10-24453-01 macerator pump has a white housing.
