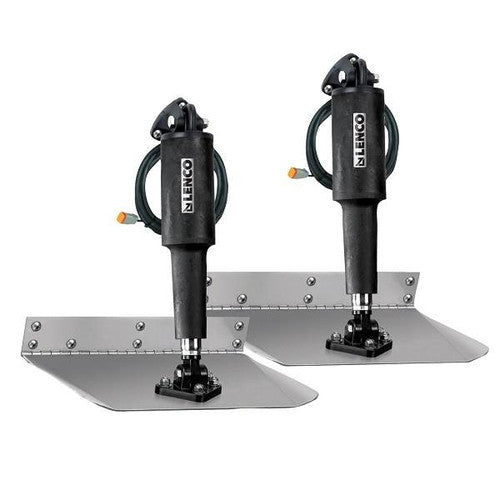

Lenco 15000-101 9" x 9" Electric Trim Tab Kit without Switch for Boats 14' - 18'

The Lenco 15000-101 is a 9 inch by 9 inch electric trim tab kit built around Lenco's original ballscrew actuator design, the design that started the electric trim tab category. Trim tabs make one of the biggest differences in how a boat rides, helping it plane faster, ride drier, and handle more predictably in chop. Lenco's ballscrew system is oil-free and environmentally conscious, and compared to typical hydraulic trim tab systems it is more reliable, up to three times more powerful, and gives an instant response that feels natural at the helm.

Each trim tab plane in this kit measures 9 inches deep by 9 inches wide and is laser cut from 12 gauge 304 stainless steel for corrosion resistance in salt and fresh water. The kit is sized for boats from 14 feet to 18 feet, making it a fit for smaller center console boats and cuddy cabin cruisers. This kit does not include a trim tab switch; a switch must be purchased separately to complete the installation.

Specifications

• Brand: Lenco
• Manufacturer Part Number: 15000-101
• Product UPC: 874847004213
• Type: Trim Tab Kit
• Style: Electric Trim Tabs
• Trim Tab Plane Size: 9 inches x 9 inches
• Trim Tab Plane Material: 12 gauge 304 stainless steel
• Actuator Voltage: 12-Volt
• Actuator Lead Length: 6 feet
• Actuator Extension Harness Length: 20 feet
• Recommended Boat Length: 14 feet to 18 feet
• Mounting Hardware: Stainless steel
• Switch: Sold separately
• Product Dimensions: 12.75 inches x 12.75 inches x 5 inches
• Weight: 15 pounds

Fitment

• Recommended for boats 14 feet to 18 feet in length
• Ideal for center console boats and cuddy cabin cruisers

Frequently Asked Questions

What size are the trim tab planes in the Lenco 15000-101 kit? The trim tab planes in the Lenco 15000-101 kit measure 9 inches deep by 9 inches wide, made from 12 gauge 304 stainless steel.

Does the Lenco 15000-101 kit include a switch? No, the Lenco 15000-101 is sold without a switch. A trim tab switch must be purchased separately to operate this kit.

What size boats is the Lenco 15000-101 trim tab kit designed for? This kit is recommended for boats 14 feet to 18 feet in length, and is well suited to center console boats and cuddy cabin cruisers.

What is included in the Lenco 15000-101 trim tab kit? The kit includes two 9 inch by 9 inch 12 gauge 304 stainless steel trim tab planes, two actuators with 6 foot leads and Deutsch plugs, two 20 foot actuator extension wiring harnesses, two upper mounting brackets with gland seal, two lower mounting brackets, stainless steel mounting hardware, and a Lenco owner's and installation manual.

What material are the trim tab planes made from? The Lenco 15000-101 trim tab planes are made from 12 gauge 304 stainless steel, chosen for strength and corrosion resistance in marine environments.

How does the Lenco ballscrew design compare to hydraulic trim tab systems? Lenco's ballscrew actuator design used in the 15000-101 kit is more reliable and up to three times more powerful than typical hydraulic trim tab systems, with an instant, responsive feel and no hydraulic oil involved.

How long are the actuator leads and extension harnesses? Each actuator in the 15000-101 kit has a 6 foot lead with a Deutsch plug, and the kit includes 20 foot actuator extension wiring harnesses to reach the helm.

What voltage does the Lenco 15000-101 trim tab kit run on? The Lenco 15000-101 is a 12-Volt electric trim tab kit.

Is mounting hardware included with the Lenco 15000-101 kit? Yes, stainless steel mounting hardware is included along with the upper and lower mounting brackets needed to install the 15000-101 trim tab planes.

What is the difference between the Lenco 15000-101 and larger Lenco trim tab kits? The 15000-101 uses 9 inch by 9 inch trim tab planes for boats 14 to 18 feet, while larger Lenco kits use bigger planes, such as 9 inch by 12 inch or 9 inch by 18 inch, sized for longer boats.

How much does the Lenco 15000-101 trim tab kit weigh? The Lenco 15000-101 electric trim tab kit weighs 15 pounds.
