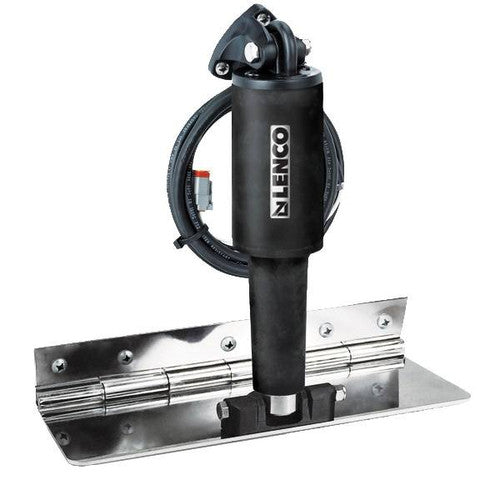

Lenco 15052-101 Limited Space Electric Trim Tab Kit, 4 x 12 Inch, Fits 14-25 Ft Boats

The Lenco 15052-101 Limited Space Trim Tab Kit is an electric trim tab system built for transoms where mounting space is tight. Its compact 4 inch by 12 inch blade profile is engineered to fit behind ladders and swim platforms, giving boats with limited transom real estate the same trim control benefits as a standard-size tab setup. The kit is intended for boats between 14 feet and 25 feet in length.

Each blade is made from 12-gauge 304 stainless steel, with the front of the blade folded over to create a smooth trailing edge that reduces turbulence at speed. The hinges stand 2 inches tall and use a 1/8 inch diameter stainless steel hinge pin for a durable, corrosion-resistant pivot point. The kit is finished in the standard black finish. Electrically, the system runs on 12 volts DC with a 10 amp current rating and carries an IP54 ingress protection rating for use in wet marine environments. A control switch is not included with this kit and must be added separately to complete the trim system.

Specifications

• Brand: Lenco
• Manufacturer Part Number: 15052-101
• Product Type: Trim Tab Kit
• Style: Electric Trim Tabs
• Blade Dimensions: 4 inches long x 12 inches wide
• Blade Material: 12-gauge 304 stainless steel
• Hinge Height: 2 inches
• Hinge Pin Diameter: 1/8 inch, stainless steel
• Recommended Boat Length: 14 feet to 25 feet
• Finish: Standard finish
• Color: Black
• Operating Voltage: 12 Volts DC
• Current Rating: 10 Amps
• Ingress Protection Rating: IP54
• Weight: 14.8 pounds
• UPC: 874847004749

Fitment

• Boats between 14 feet and 25 feet in length
• Recommended for transoms with limited mounting area, such as those with a swim platform and/or ladder

Frequently Asked Questions

What boat sizes is the Lenco 15052-101 trim tab kit designed for? The Lenco 15052-101 Limited Space Trim Tab Kit is designed for boats between 14 feet and 25 feet in length.

Does the 15052-101 kit include a control switch? No, a control switch is not included with the Lenco 15052-101 kit; it needs to be purchased and wired in separately to operate the trim tabs.

What material are the trim tab blades made from? The blades in the Lenco 15052-101 kit are made from 12-gauge 304 stainless steel, with the front edge folded over for a smooth trailing edge.

How big are the trim tab blades on this kit? Each blade measures 4 inches long by 12 inches wide, sized specifically for limited transom mounting space.

Why would I choose this Limited Space kit over a standard trim tab kit? This kit's compact 4 inch by 12 inch blade and 2 inch hinge height let it fit behind ladders and swim platforms where a standard-size Lenco trim tab kit would not clear.

What size is the hinge pin on the 15052-101 kit? The hinges use a 1/8 inch diameter stainless steel hinge pin and stand 2 inches in height.

What color and finish does this trim tab kit come in? The Lenco 15052-101 kit is supplied in the standard finish and black color.

What voltage and current does the 15052-101 trim tab system use? This kit operates on 12 volts DC and is rated for 10 amps of current.

Is the Lenco 15052-101 kit rated for wet or splash environments? Yes, the 15052-101 carries an IP54 ingress protection rating, indicating protection against dust ingress and splashing water, which suits it for marine transom mounting.

How much does the Lenco 15052-101 trim tab kit weigh? The Lenco 15052-101 Limited Space Trim Tab Kit weighs 14.8 pounds.

What is included in the box with this trim tab kit? The Lenco 15052-101 kit includes the 4 inch by 12 inch stainless steel trim tab blades and hinge hardware; a control switch is sold separately and is not part of this kit.

Is this trim tab kit suitable for boats with a swim platform or ladder? Yes, the compact blade and hinge design of the 15052-101 kit is specifically intended for boats with a swim platform and/or ladder where transom space is limited.
