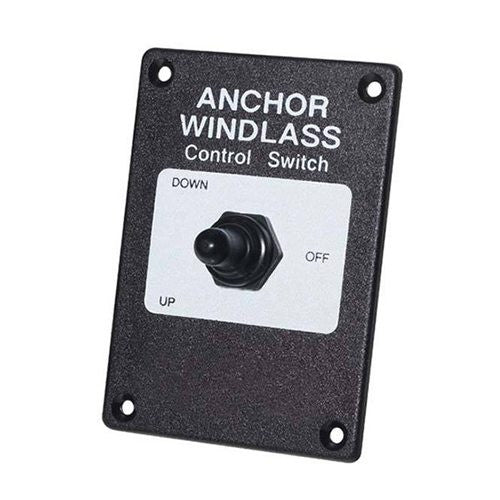

Lewmar Dual Direction Toggle Switch 0052519 for Small Windlasses

The Lewmar Dual Direction Toggle Switch, part number 0052519, is a panel-mount control switch built for smaller anchor windlasses. It has a contactor built directly into the switch body, so it can drive the windlass motor circuit without needing a separate remote solenoid for basic up/down operation. The switch is a two-position, dual direction (up-down) toggle with an ON-OFF control type and normally open contact configuration wired in series, matching the standard control layout used on compact windlass installations.

Construction is metal, with copper alloy contacts for reliable current-carrying capacity and insulation resistance rated at 100 megaohms, supporting long-term durability in a marine electrical environment. Termination is push-on quick-connect, simplifying wiring at installation or when replacing an existing switch. The switch mounts through a panel cutout for a clean helm or deck-box installation, and it is designed specifically for use with windlass systems.

This is a genuine Lewmar part sold as a single switch unit, intended as a direct replacement or upgrade for the toggle switch on compatible smaller Lewmar windlass installations.

Specifications

• Brand: Lewmar
• Manufacturer Part Number: 0052519
• Mounting Type: Panel Mount
• Material: Metal
• Terminal: Push On
• Contact Material: Copper Alloy
• Insulation Resistance: 100 Megaohms
• Operation Mode: ON OFF
• Contact Type: Normally Open
• Circuit Type: Series
• Compatible Devices: Windlasses
• Compatible with Vehicle Type: Marine
• Connectivity Protocol: Wired
• Connector Type: Quick Connect
• Control Type: ON-OFF
• Number of Positions: 2
• Switch Type: Toggle
• Unit Count: 1
• Weight: 0.21 pounds

Frequently Asked Questions

What does the Lewmar 0052519 toggle switch control? It is a dual direction toggle switch for smaller windlasses, letting the operator run the windlass motor up or down from a single panel-mounted switch.

Does this switch include a built-in contactor? Yes, the Lewmar 0052519 has a contactor built into the switch itself, so it can switch the windlass motor circuit directly.

Is this switch meant for large or small windlasses? The Lewmar 0052519 is designed for smaller windlasses, not the larger models that typically require a separate remote solenoid setup.

How is the Lewmar 0052519 switch mounted? It is a panel mount switch, installed through a cutout in a helm panel or deck box rather than surface mounted.

What is the switch made of? The Lewmar 0052519 toggle switch has a metal body with copper alloy contacts for reliable current handling.

What type of electrical contact does this switch use? It uses a normally open contact type wired in a series circuit, with a two-position ON-OFF control layout.

How do the wires connect to this switch? Termination is push-on quick-connect, so wiring is done with quick-connect terminals rather than screw terminals.

How much does the Lewmar 0052519 switch weigh? The switch weighs 0.21 pounds.

Is the Lewmar 0052519 a genuine Lewmar part? Yes, part number 0052519 is a genuine Lewmar dual direction toggle switch, not a generic aftermarket equivalent.

What is the insulation resistance rating of this switch? The Lewmar 0052519 is rated at 100 megaohms insulation resistance.

How many positions does the toggle have? It is a two-position toggle switch with ON-OFF control for dual direction operation.

What is included when ordering this part? Ordering part number 0052519 includes one Lewmar dual direction toggle switch unit.
