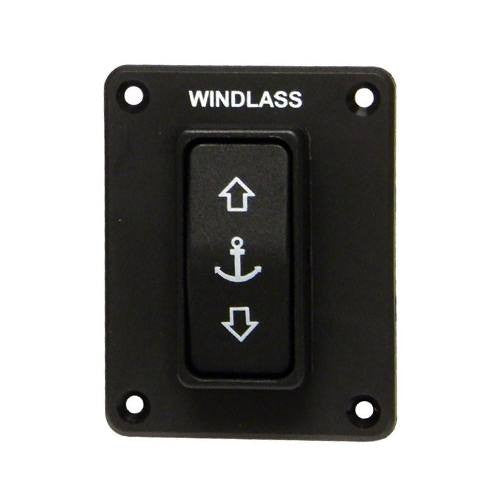

Lewmar Guarded Rocker Switch 68000593, Dual Direction 12V/24V DC Windlass Control Switch

The Lewmar 68000593 is a guarded dual direction rocker switch built for controlling a boat windlass from the helm, wheelhouse, or flybridge. The rocker gives clear up and down actuation for retrieving or deploying anchor, and works as either a primary helm switch or a secondary switch at a second station. A raised plastic guard surrounds the rocker to help prevent accidental activation from bumps or stray gear, reducing the risk of an unintended windlass engagement.

The switch is rated for 12 or 24 Volt DC systems at 5 Amps, using normally closed contacts with brass contact material and screw terminals for a secure electrical connection. The housing is molded plastic in black, sized to mount cleanly into a standard helm or dash panel, and carries an IP65 rating for protection against dust and water exposure in an open helm environment. It is backed by a 3 year manufacturer warranty.

Specifications

• Brand: Lewmar
• Manufacturer Part Number: 68000593
• Switch Type: Rocker
• Control Type: Dual direction (up/down)
• Operation Mode: ON-OFF
• Number of Positions: 2
• Operating Voltage: 12 or 24 Volts DC
• Current Rating: 5 Amps
• Contact Type: Normally closed
• Contact Material: Brass
• Terminal: Screw
• Connector Type: Clamp
• Material: Plastic
• Color: Black
• International Protection Rating: IP65
• Item Dimensions: 5.5 x 4.5 x 2 inches
• Weight: 0.09375 pounds
• Warranty: 3 year manufacturer
• UPC: 743683317088

Frequently Asked Questions

What is the Lewmar 68000593 switch used for? The Lewmar 68000593 is a guarded rocker switch that provides dual direction up and down control for a boat windlass, letting you retrieve or deploy anchor from a helm, wheelhouse, or flybridge station.

Does the Lewmar 68000593 work on both 12 volt and 24 volt boats? Yes, the 68000593 switch operates on either 12 or 24 Volt DC systems, making it compatible with most common marine electrical setups.

What amperage is the Lewmar 68000593 rated for? This switch is rated for 5 Amps, sized for control circuit switching on windlass systems that use a solenoid contactor or control box.

What does the guard on this rocker switch do? A raised plastic guard surrounds the rocker on the Lewmar 68000593 to help prevent accidental activation from bumps or stray gear at the helm.

What color is the Lewmar 68000593 rocker switch? It is finished in black, matching common marine dash and helm panels.

How big is the Lewmar 68000593 switch? The switch measures 5.5 x 4.5 x 2 inches, sized for mounting into a standard helm or dash panel.

What is the Lewmar 68000593 switch made of? The housing is molded plastic, with brass contact material inside for the electrical contacts.

Is the Lewmar 68000593 protected against water exposure at the helm? Yes, it carries an IP65 protection rating, suited to an open helm, wheelhouse, or flybridge location.

What type of electrical contacts does this switch use? The 68000593 uses normally closed contacts with screw terminals and a clamp-type connector.

Does the Lewmar 68000593 come with a warranty? It is backed by a 3 year manufacturer warranty.
