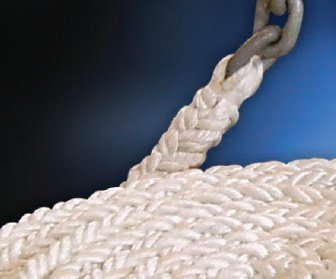

Lewmar HM30H200PX Anchor Rode - 30 ft 5/16 in G4 Chain with 200 ft 5/8 in 8-Plait Rope

The Lewmar HM30H200PX is a combination anchor rode pairing 30 feet of 5/16 inch G4 high test chain with 200 feet of 5/8 inch 8 plait nylon rope. It is built to complement the rope-chain gypsies fitted to all Lewmar windlasses, so the chain-to-rope transition feeds smoothly through the windlass drum without jamming or snagging during anchoring and retrieval.

The chain section is G4 high test chain that is hot dip galvanized to minimize corrosion in saltwater and freshwater environments, and it is welded for high strength at every link. The chain is calibrated for even pitch, meaning the link spacing is held to a consistent dimension so it seats correctly and repeatably in a gypsy wheel. The rope section is 200 feet of 5/8 inch 8 plait line, a square-plait construction that resists hockling and is easy to handle and splice compared to twisted rope.

This rode is intended for boaters who need a long-range, windlass-compatible anchor line and chain combination in one assembly rather than sourcing and splicing chain and rope separately.

Specifications

• Brand: Lewmar
• Manufacturer Part Number: HM30H200PX
• Chain Length: 30 feet
• Chain Size: 5/16 inch
• Chain Type: G4 high test chain
• Chain Finish: Hot dip galvanized
• Rope Length: 200 feet
• Rope Diameter: 5/8 inch
• Rope Construction: 8 plait
• Product Dimensions: 18 x 10 x 6 inches
• Weight: 40 pounds
• UPC: 743683410666
• Category: Anchor Rodes

Frequently Asked Questions

What does the Lewmar HM30H200PX include? The HM30H200PX is a combination anchor rode with 30 feet of 5/16 inch G4 chain spliced to 200 feet of 5/8 inch 8 plait rope, sold as one continuous assembly.

Will this rode work with my windlass? Yes, the HM30H200PX is designed to complement the rope-chain gypsies fitted to all Lewmar windlasses, so the chain-to-rope transition feeds through the gypsy wheel correctly.

Is the chain on the HM30H200PX galvanized? The 5/16 inch G4 chain section is hot dip galvanized to minimize corrosion in marine environments.

What type of chain is used, and how strong is it? The HM30H200PX uses G4 high test chain that is welded for high strength at each link, in a 5/16 inch size.

What does 8 plait rope mean? The 200 foot rope section of the HM30H200PX is an 8 plait (square plait) nylon construction, a braided style chosen for its handling characteristics on a rode.

How long is the total rode? The HM30H200PX totals 230 feet of usable rode: 30 feet of 5/16 inch chain plus 200 feet of 5/8 inch rope.

How much does the HM30H200PX weigh? The Lewmar HM30H200PX weighs 40 pounds as a complete chain and rope assembly.

What are the packaged dimensions of the HM30H200PX? The HM30H200PX ships in a package measuring 18 x 10 x 6 inches.

Why is the chain described as calibrated? Calibrated for even pitch means the HM30H200PX chain links are held to a consistent spacing so they seat correctly and repeatably in a windlass gypsy wheel.

Is the HM30H200PX pre-spliced and ready to use? Yes, the chain and rope sections of the HM30H200PX are joined into a single rode assembly, not sold as separate components requiring splicing by the buyer.

What is the UPC for the Lewmar HM30H200PX? The Lewmar HM30H200PX anchor rode carries UPC 743683410666.
