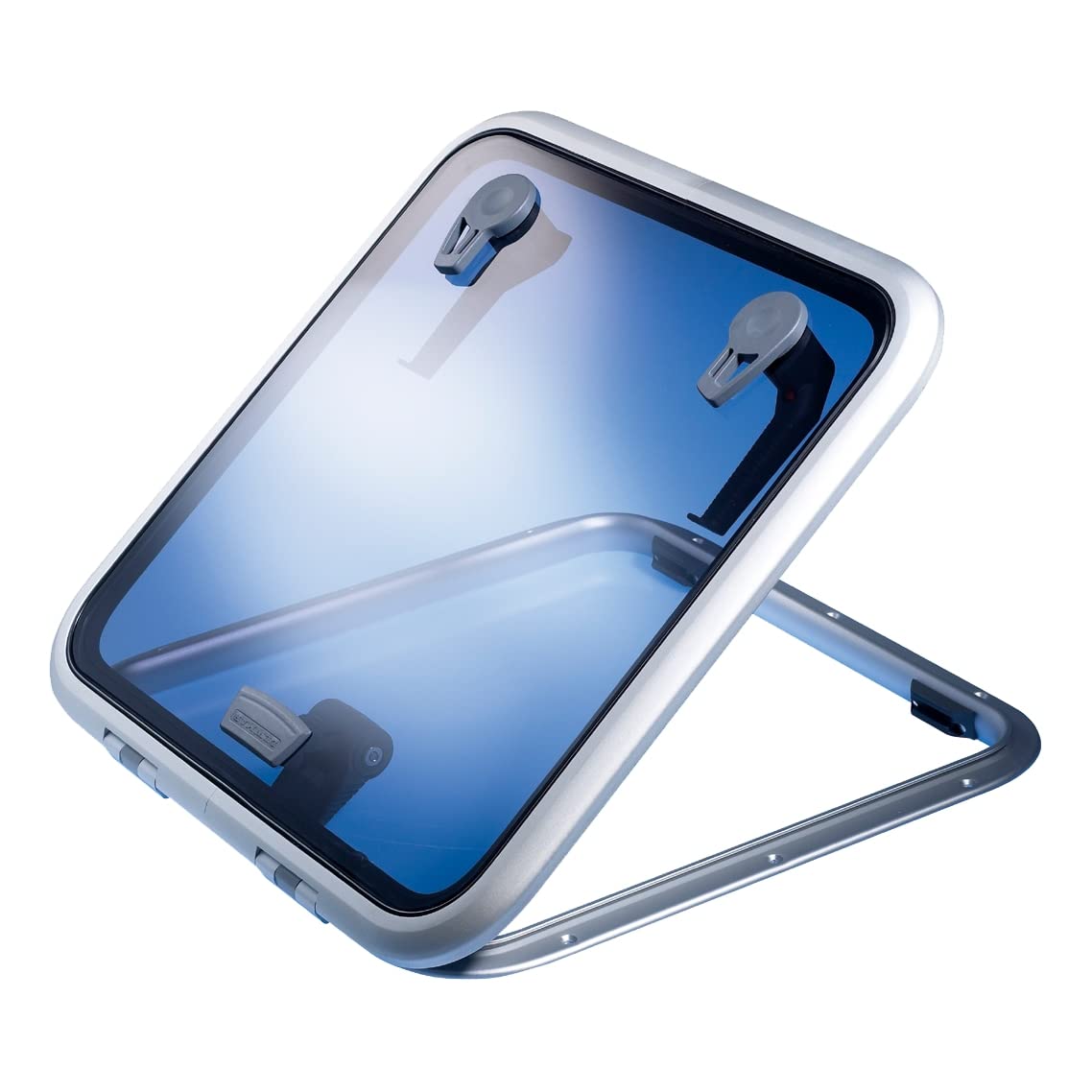

Lewmar Low Profile Rectangular Deck Hatch, Size 10 - Anodized Aluminum

The Lewmar Low Profile Rectangular deck hatch, Size 10, is built for boat owners who want a flush-mounted opening without a raised profile disrupting the deck line. The frame is anodized aluminum for corrosion resistance in a marine environment, and the hatch projects only 25 mm above the surrounding deck, keeping foot traffic and lines clear of a bulky lid. The lid combines a seal and acrylic lens fitted into the aluminum frame, giving a leak-resistant closure while still letting light into the space below.

Outside handles let the hatch be opened from the deck when it is unlocked, and integrated friction levers hold the lid open in any position up to 95 degrees, so it stays put at whatever angle is convenient for the job at hand rather than swinging shut or needing a separate prop. The hatch is CE approved and carries a 3-year warranty. It is designed as a direct replacement flange-base hatch, so it installs into an existing Size 10 opening using the same mounting footprint.

Specifications

• Brand: Lewmar
• Manufacturer Part Number: 39910030
• Style: Low Profile Rectangular
• Size: Size 10
• Material: Aluminum
• Exterior Finish: Anodized Aluminum
• Lens Color: Clear, Blue
• Profile Height: 25 mm above deck
• Maximum Opening Angle: 95 degrees
• Certification: CE approved
• Warranty: 3 years
• Weight: 5.59375 pounds
• UPC: 743683107047
• Indoor/Outdoor Usage: Outdoor
• Hand Orientation: Ambidextrous

Frequently Asked Questions

What size opening does the Lewmar 39910030 hatch fit? The Lewmar 39910030 is a Size 10 Low Profile Rectangular deck hatch, built to install into an existing Size 10 opening as a flange-base replacement.

How far does this hatch project above the deck? Only 25 mm, which is what gives the Lewmar Low Profile Rectangular hatch (part 39910030) its low-profile design compared to a raised-lid hatch.

What is the frame made of? Anodized aluminum, chosen for corrosion resistance in marine environments, forms the frame of this Lewmar deck hatch.

Can the hatch be opened from outside the boat? Yes, the 39910030 hatch has outside handles that allow it to be opened from the deck whenever it is not locked.

Does the lid stay open on its own? Integrated friction levers hold the lid of this Lewmar hatch open in any position up to 95 degrees, so it does not need to be propped or held.

What color is the lens? The Lewmar 39910030 hatch is available with a clear or blue lens.

Is this hatch watertight? The lid fits a seal and acrylic lens into the aluminum frame for a leak-resistant closure, though the listing does not state a specific waterproof rating.

How much does the hatch weigh? This Lewmar deck hatch weighs 5.59375 pounds.

Is the hatch certified for marine use? Yes, the Lewmar 39910030 Low Profile Rectangular hatch carries CE approval.

What warranty comes with this hatch? Lewmar backs the 39910030 deck hatch with a 3-year warranty.

Is this a left-hand or right-hand hatch? The 39910030 is ambidextrous, meaning it is not handed and can be installed either way.

Is this hatch meant for indoor or outdoor installation? It is designed for outdoor use, as an exterior deck hatch on a boat.
